Tractor · 2011Unverified

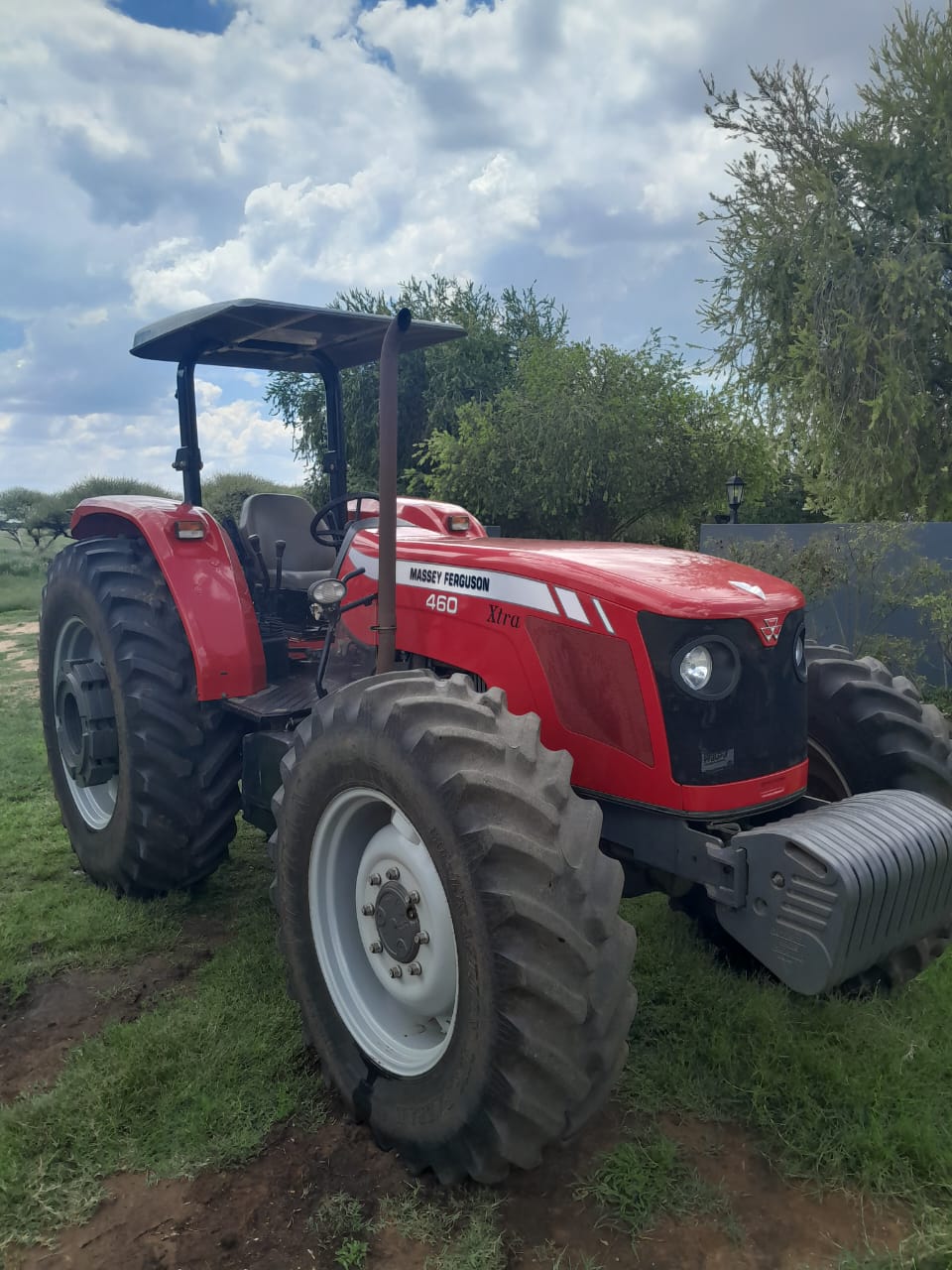

Massey Ferguson 460 Xtra

Name: Massey Ferguson 460 Xtra
Brand: Massey Ferguson

Massey Ferguson 460 Xtra — 400 Xtra Series · 110 hp. Reference specifications; pending source verification.

The Massey Ferguson 460 Xtra is a tractor rated at 110 hp, positioning it in the middle of its class for power output. Manufactured in 2011, the 460 Xtra is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, driving through mechanical front-wheel drive with a hydrostatic transmission. The listed weight of the tractor is 4209 kg. It is designed to handle jobs ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Max power

110 hp

Weight

4209 kg

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

110 hp

Recorded weight

4209 kg

Transmissions

12-speed synchromesh

Production years

2011-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Canoas, BrazilReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

AGCO Sisu Power 4.4L 4-cyl dieselReference

Engine82.0 kWReference

AGCO Sisu Power 420DSReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IIReference

Power82.0 kWReference

Fuel systemdirect injectionReference

Torque425.1 NmReference

Torque RPM1400Reference

Firing order1-2-4-3Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.0 LReference

Fuel TypedieselReference

No of Cylinders4 cylindersReference

Emissions complianceTier IIReference

Engine torque at rated speed142.2 kgReference

Bore and stroke4.252x4.724 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed synchromeshReference

TypesynchromeshReference

Gears12 forward and 4 reverseReference

Oil capacity46.0 LReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchromesh : 12 F and 4 RReference

Wheel Drive4WDReference

Capacities

Fuel199.8 LReference

Fuel tank199.9 LReference

Crankcase oil volume15.9 qtsReference

PTO & Hydraulics

Hydraulic system46.2 LReference

Capacity46.2 LReference

Pressure170.0 barReference

Valves1 (ROPS)Reference

Valves2 (cab)Reference

Pump flow42.0 lpmReference

Rear lift3800 kgReference

Rear PTOliveReference

Rear PTOindependent (optional)Reference

Rear PTO Type540Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

Wheelbase273 cmReference

Weight4209 kgReference

Front tire9.00-16Reference

Rear tire18.4-34 (2WD)Reference

Standard tires (ag)Front: 9.00-16. Rear: 18.4-34 (2WD)Reference

Standard tires (ag)Front: 14.9-24. Rear: 18.4-34 (4WD)Reference

Length463 cmReference

Height (exhaust)263 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

Rollover protective structureTwo-post ROPS.Reference

Country of manufacturerBrazilReference

Power

Max Power110 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typeHydrostatic PowerReference

Hydraulics

Maximum operating pressure2,466 psiReference

Remote Valves1 | 2 ValvesReference

Rear Hitch maximum lift capacity3,800.2 kgReference

Dimensions & weight

Overall Height263.9 cmReference

Overall Length463 cmReference

Overall weight4,209.8 kgReference

Wheels & tyres

Rear Wheel Type18.4-34 | 18.4-34Reference

Front Wheel Type9.00-16. | 14.9-24.Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
