Tractor · 2016Unverified

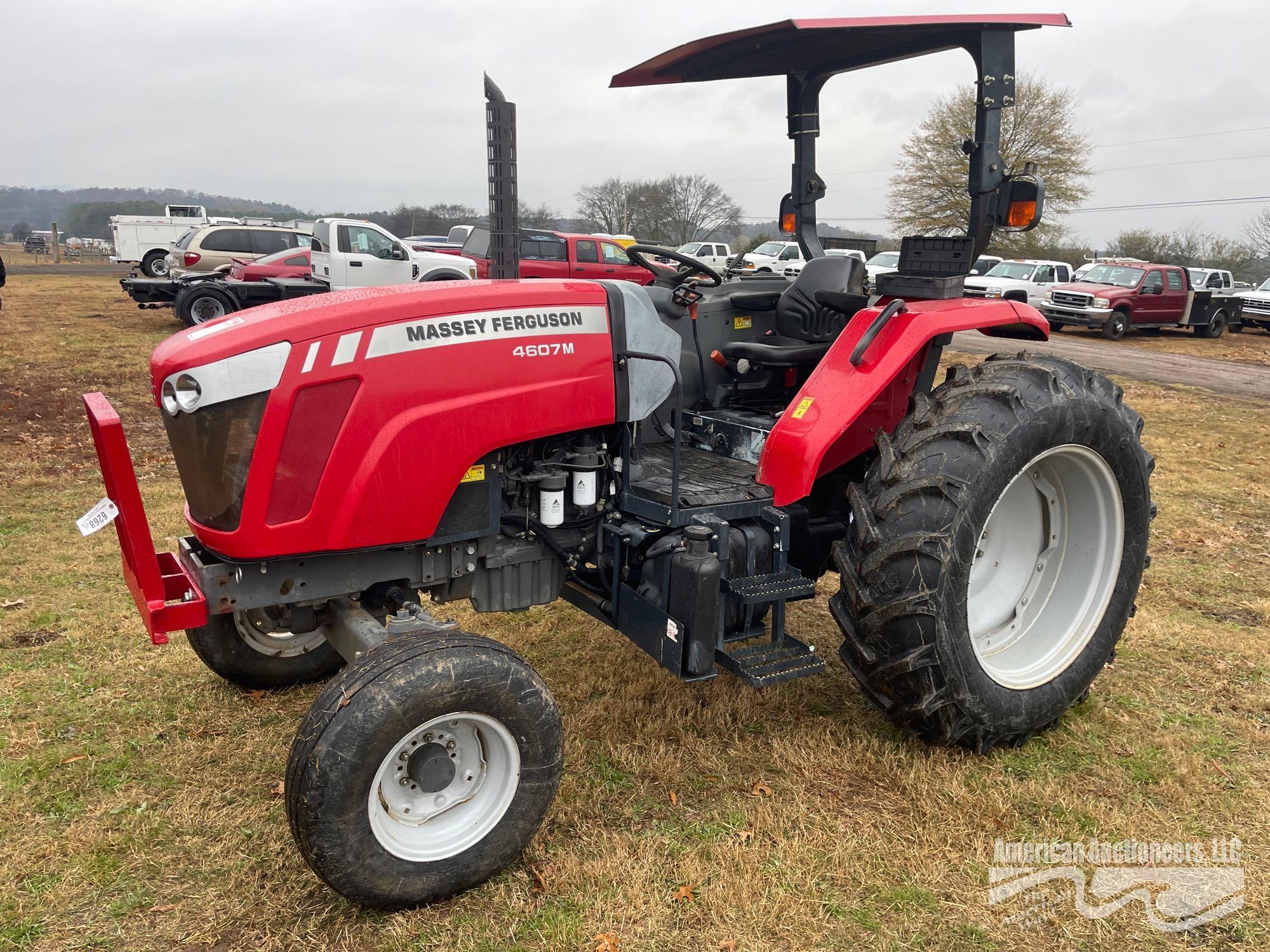

Massey Ferguson 4607M
Massey Ferguson 4607M — Utility tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
6680 to 7087 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesinternal planetaryReference
Differential lockmechnical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank114.7 LReference
Engine52.3 kWReference
AGCO PowerReference
intercooled turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Emission controlexternal cooled echaust gas recirculation with diesel oxidation catalystReference
Power52.3 kWReference
Maximum Power55.2 kWReference
Fuel systemhigh-pressure common railReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
18-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchwet discReference
Six synchronized gears in two ranges.Reference
Gears18 forward and reverseReference
PTO & Hydraulics
PTO (claimed)41.8 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow66.2 lpmReference
Rear TypeIIReference
Rear lift1500 kgReference
Rear lift1999 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase226 cmReference
Weight6680 to 7087 poundsReference
Length381 cmReference
Width204 cmReference
Height (ROPS)264 cmReference
Height (cab)254 cmReference
4WD ROPS Weight3030 kgReference
4WD Cab Weight3214 kgReference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
