Tractor · 2013Unverified

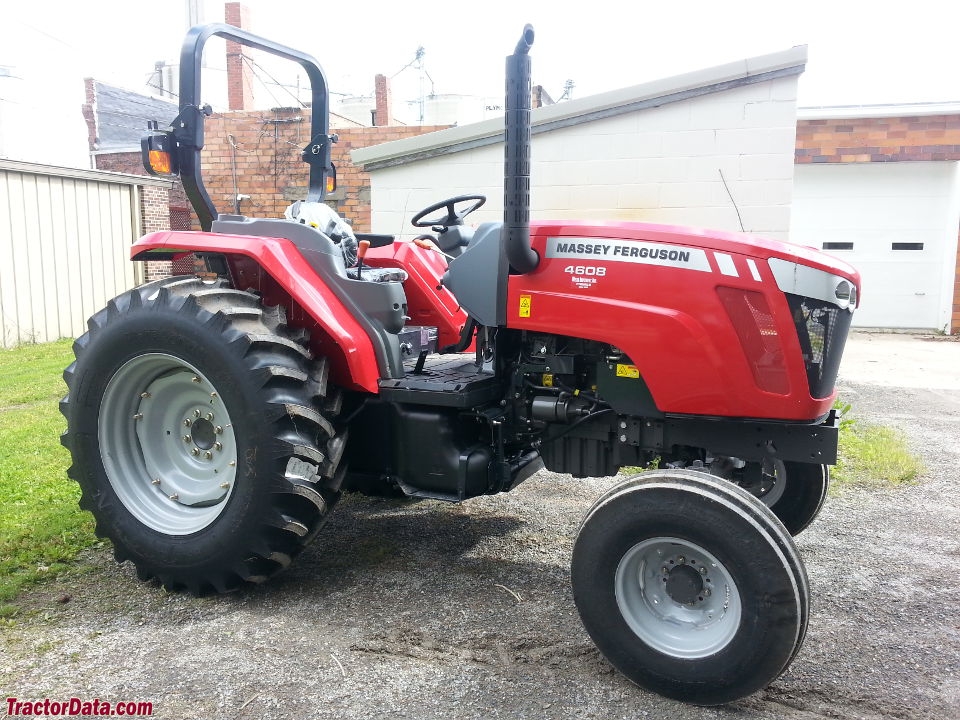

Massey Ferguson 4608
Massey Ferguson 4608 — Utility tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
6063 to 6503 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Original price$32,178 (2015 ROPS 2WD )Reference
Original price$46,290 (2015 Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesinternal planetaryReference
Differential lockmechanical via foot pedalReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Optional cab with air-conditioning.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank102.2 LReference
Engine (gross)59.7 kWReference
Engine (net)55.9 kWReference
AGCO Power 33 AWICReference
turbocharged intercooled dieselReference
3-cylinder 16-valveReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
EmissionsInterim Tier 4Reference
Emission controlexhaust gas recirculation and diesel oxidation catalyst (DOC) (EGR)Reference
Power (net)55.9 kWReference
Power (gross)59.7 kWReference
Fuel systemhigh pressure common rail direct injection (HPCR)Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
Typepower shuttleReference
Gears12 forward and reverseReference
Six synchronized gears in two ranges with left-hand power shuttle.Reference
PTO & Hydraulics
PTO (claimed)47.4 kWReference
Typeopen center tandem pumpReference
Rear valves1 to 3Reference
SCV flow64.7 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1549 kgReference
Rear Armsextendable ball endsReference
Rear PTOindependentReference
ClutchelectronicReference
Rear PTO Type540/1000Reference
Engine RPM540@1993Reference
Engine RPM1000@2178Reference
Dimensions
Wheelbase224 cmReference
Weight6063 to 6503 poundsReference
Front tire9.5L-15Reference
Rear tire16.9-30Reference
2WD Ag front9.5L-15Reference
4WD Ag front9.5-24Reference
Ag rear16.9-30Reference
Industrial front10.5/80-18Reference
Industrial rear19.5L-24Reference
Length381 cmReference
Width199 cmReference
Height (cab)255 cmReference
4WD ROPS Shipping weight2750 kgReference
4WD Cab Shipping weight2949 kgReference
Flange rear axleReference
Massey Ferguson 4608 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 921X loaderReference
Massey Ferguson 926X loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
