Tractor · 2013Unverified

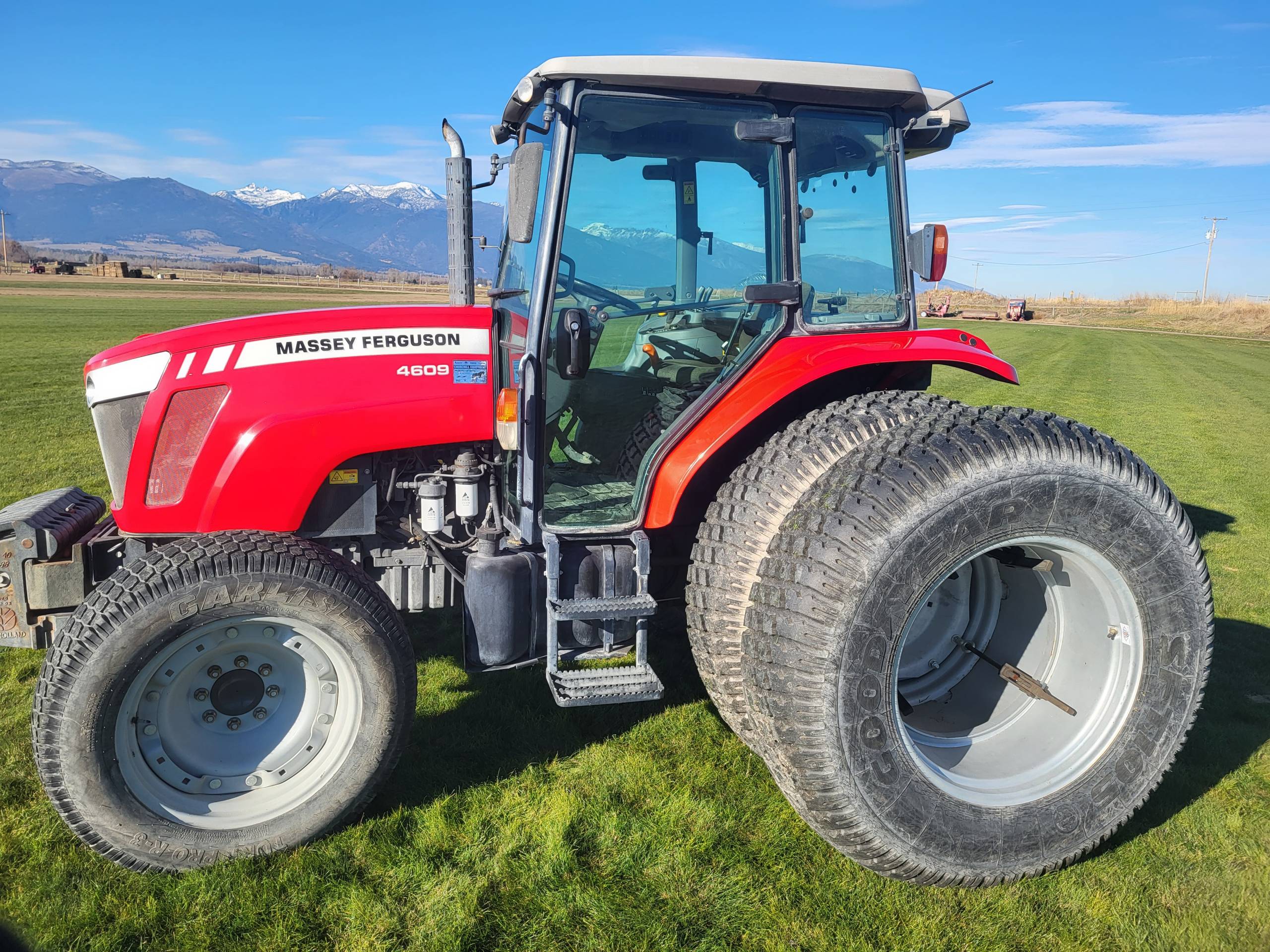

Massey Ferguson 4609

Name: Massey Ferguson 4609
Brand: Massey Ferguson

Massey Ferguson 4609 — Utility tractor · 90 hp. Reference specifications; pending source verification.

The Massey Ferguson 4609 is a tractor with a rated power output of 90 hp, a mid-range figure for its class. It was manufactured between 2013 and 2015. The 4609 is equipped with a 3-cylinder turbocharged intercooled diesel engine and four-wheel drive, paired with a 12-speed gearbox. Its operating weight ranges from 6394 to 6835 pounds, suitable for operations covering approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Max power

90 hp

Weight

6394 to 6835 pounds

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

90 hp

Recorded weight

2900 kg

Transmissions

12-speed power shuttle

Production years

2013-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Original price$35,536 (2015 ROPS 2WD )Reference

Original price$49,973 (2015 Cab 4WD )Reference

Two- or four-wheel driveReference

Final drivesinternal planetaryReference

Differential lockmechanical via foot pedalReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Optional cab with air-conditioning.Reference

Engine

AGCO Power 3.3L 3-cyl dieselReference

Fuel tank102.2 LReference

Engine (gross)67.1 kWReference

Engine (net)63.4 kWReference

AGCO Power 33 AWICReference

turbocharged intercooled dieselReference

3-cylinder 16-valveReference

Displacement3.3 LReference

Bore/Stroke108 x 120 mmReference

EmissionsInterim Tier 4Reference

Emission controlexhaust gas recirculation and diesel oxidation catalyst (DOC) (EGR)Reference

Power (net)63.4 kWReference

Power (gross)67.1 kWReference

Fuel systemhigh pressure common rail direct injection (HPCR)Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.252x4.724 inchesReference

Transmission

12-speed power shuttleReference

Typepower shuttleReference

Gears12 forward and reverseReference

Six synchronized gears in two ranges with left-hand power shuttle.Reference

Transmission TypePower ShuttleReference

forward and reverse optionsPower Shuttle : 12F and 12RReference

Wheel Drive4WDReference

Track Drive typeinternal planetaryReference

PTO & Hydraulics

PTO (claimed)53.7 kWReference

Typeopen center tandem pumpReference

Rear valves1 to 3Reference

SCV flow64.7 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1549 kgReference

Rear Armsextendable ball endsReference

Rear PTOindependentReference

ClutchelectronicReference

Rear PTO Type540/1000Reference

Engine RPM540@1993Reference

Engine RPM1000@2178Reference

Dimensions

Wheelbase224 cmReference

Weight6394 to 6835 poundsReference

Front tire9.5L-15Reference

2WD Rear tire16.9-30Reference

2WD Standard tires (ag)Front: 9.5L-15. Rear: 16.9-30Reference

4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4-30Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9-34Reference

4WD Optional tires (ag)Front: 12.4-24. Rear: 16.9-34Reference

4WD Optional tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

Industrial front12.5/80-18Reference

Industrial rear19.5L-24Reference

Length387 cmReference

Width199 cmReference

Height (cab)260 cmReference

4WD ROPS Shipping weight2900 kgReference

4WD Cab Shipping weight3100 kgReference

Flange rear axleReference

Massey Ferguson 4609 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Attachment overview

Massey Ferguson 931X loaderReference

Massey Ferguson 936X loaderReference

General

Make & ModelMassey FergusonReference

SCV controlJoystickReference

Rear Axle TypeFlangeReference

Rollover protective structureTwo-post folding ROPS.Reference

Capacities

Capacity201 ciReference

Hydraulics

Capacity Valves16 valveReference

Hydraulics Typeopen center tandem pumpReference

Remote Valves1 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeposition and draft controlReference

Power

Max Power90 hpReference

Rated Power85 hpReference

PTO

PTO Power72 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@2,178 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Dimensions & weight

Height Over Cab260.1 cmReference

Overall Length387.6 cmReference

Overall Width199.9 cmReference

Overall weight2,900.3 kgReference

Wheels & tyres

Rear Wheel Type16.9-30Reference

Front Wheel Type9.5L-15Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
