Tractor · 2016Unverified

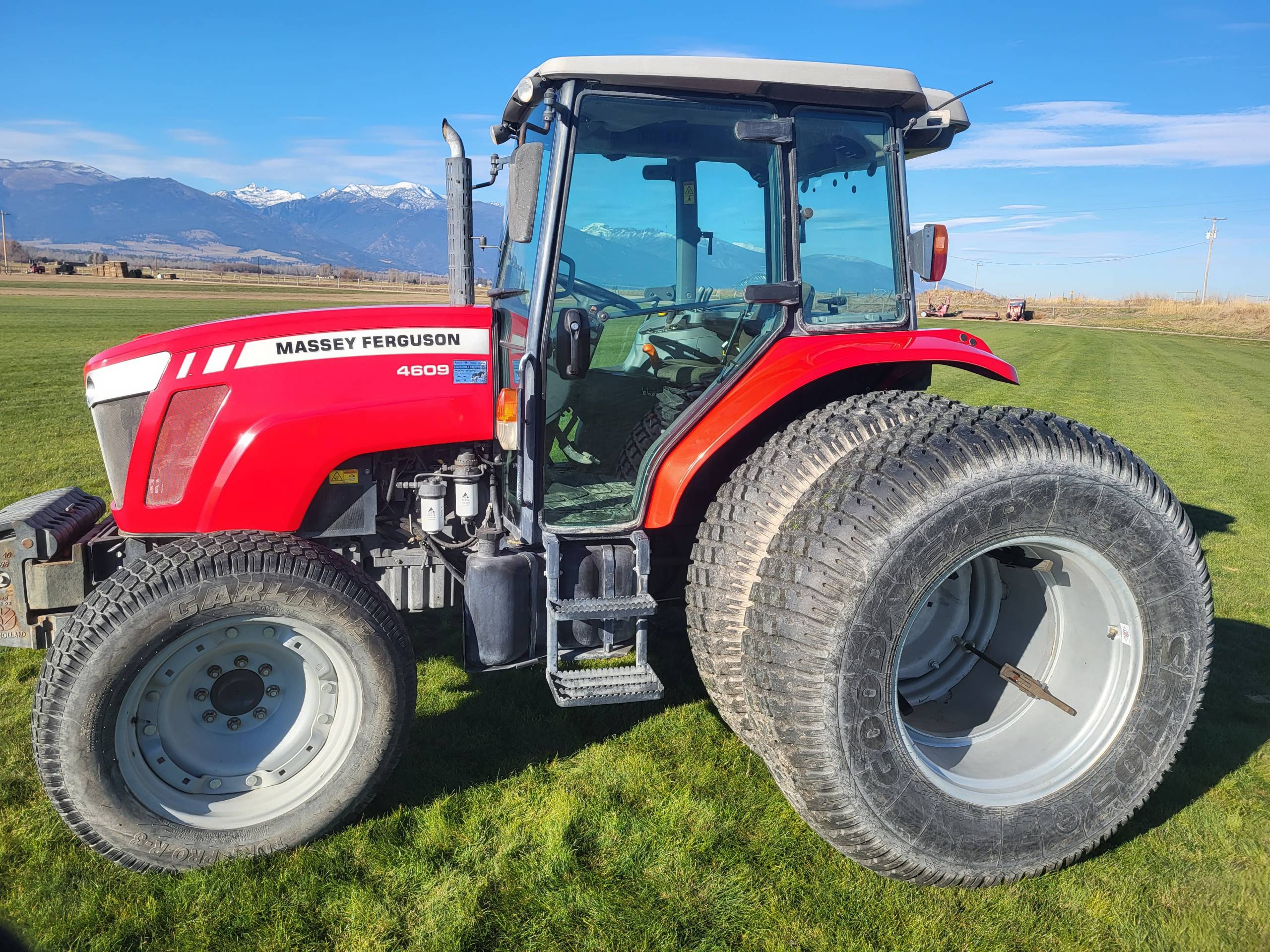

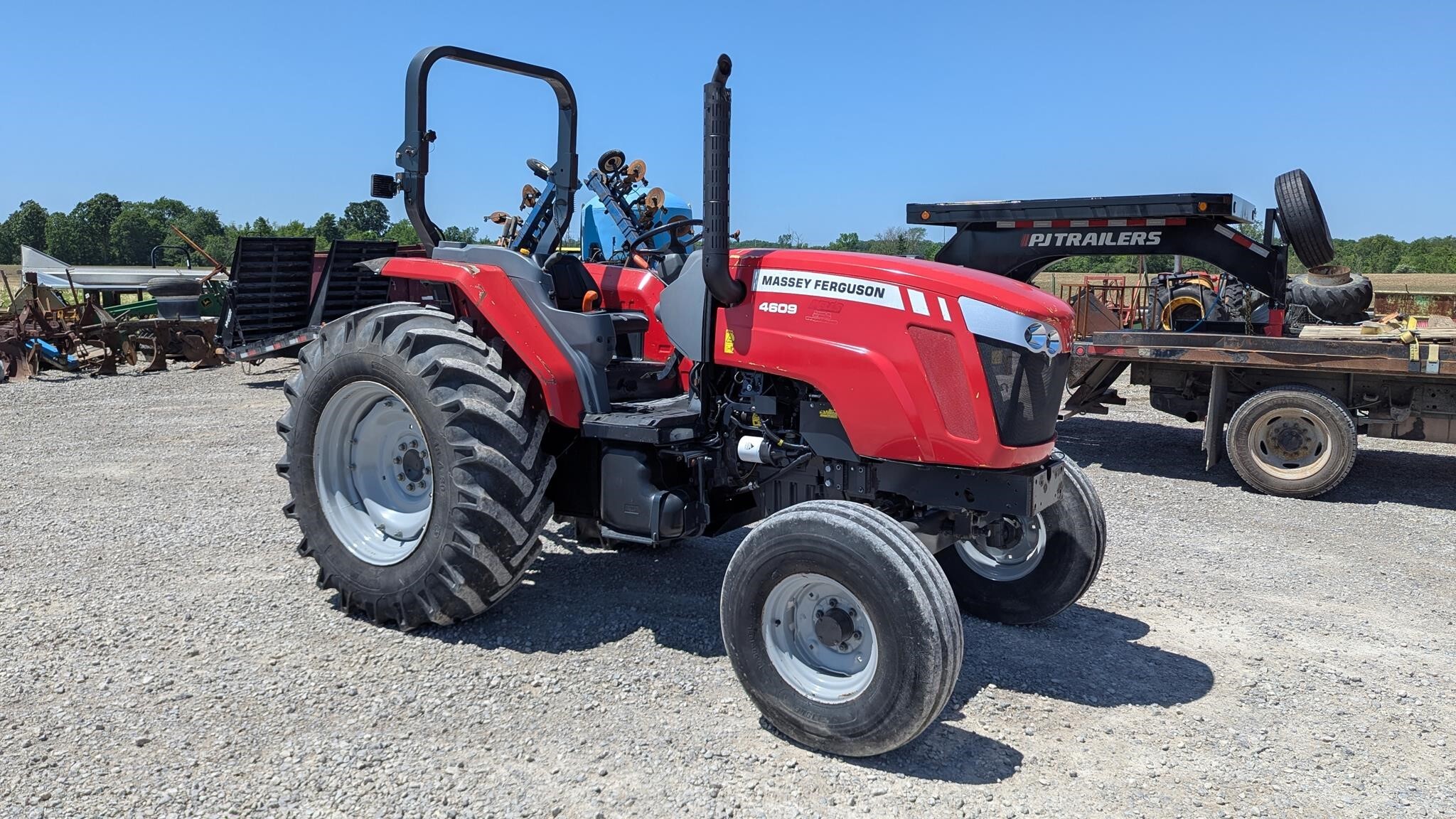

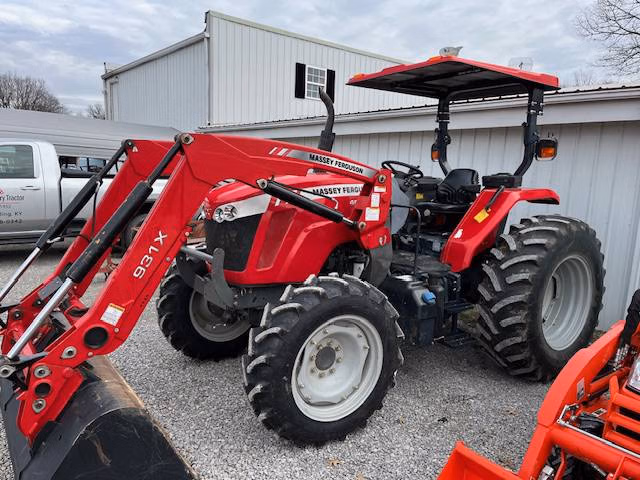

Massey Ferguson 4609M
Massey Ferguson 4609M — Utility tractor · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
6845 to 7253 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesinternal planetaryReference
Differential lockmechnical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank114.7 LReference
Exhaust fluid (DEF)15.9 LReference
Engine67.0 kWReference
AGCO PowerReference
intercooled turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Emission controldiesel exhaust fluid with diesel oxidation catalyst (DOC) (DEF)Reference
Power67.0 kWReference
Maximum Power70.8 kWReference
Fuel systemhigh-pressure common railReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
18-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchwet discReference
Six synchronized gears in two ranges.Reference
Gears18 forward and reverseReference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow66.2 lpmReference
Rear TypeIIReference
Rear lift1500 kgReference
Rear lift1999 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase228 cmReference
Weight6845 to 7253 poundsReference
Length389 cmReference
Width204 cmReference
Height (ROPS)270 cmReference
Height (cab)259 cmReference
4WD ROPS Weight3104 kgReference
4WD Cab Weight3289 kgReference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
