Tractor · 2004Unverified

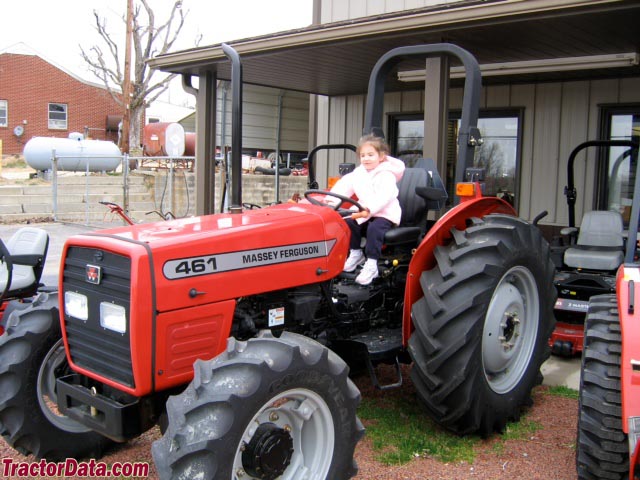

Massey Ferguson 461
Massey Ferguson 461 — 400 Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
4962 to 5456 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Built in TurkeyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Wet disc brakesReference
Flat-deck platform with two-post folding ROPS.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank48.1 LReference
Engine (gross)55.9 kWReference
Perkins 1103C-33TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIReference
Power (gross)55.9 kWReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutch305mm dry discReference
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Typeopen centerReference
Valves2Reference
Pump flow16.7 lpmReference
Pump flow34.1 lpmReference
SCV flow34.1 lpmReference
SCV flow50.7 lpmReference
Total flow71.5 lpmReference
Steering flow20.8 lpmReference
Rear TypeII/IReference
Controlposition control and top-link draft sensingReference
Rear lift1229 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase194 cmReference
Weight4962 to 5456 poundsReference
Length322 cmReference
Width169 cmReference
Height (ROPS)234 cmReference
Height (Folded ROPS)178 cmReference
2WD Shipping weight2250 kgReference
4WD Shipping weight2474 kgReference
Clearance (drawbar)33 cmReference
Massey Ferguson 461 attachments
front-end loaderReference
461 Serial Number Location
Serial number plate on the left side of the tractor's dashboard.Reference
461 Serial Numbers
2004EN00001Reference
2005EP00001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Massey Ferguson 1040 loaderReference
Massey Ferguson 1055 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
