Tractor · 2016Unverified
Massey Ferguson 4707
Massey Ferguson 4707 — Utility tractor · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
7478 to 8644 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
FactoriesBrazilReference
FactoriesChinaReference
Original price$36,056 (2018 ROPS 2WD )Reference
Original price$50,796 (2018 Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic rearReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank104.8 LReference
Engine52.2 kWReference
AGCO Power 33AWICReference
intercooled turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction with diesel oxidation catalystReference
Power52.2 kWReference
Maximum Power55.9 kWReference
Fuel systemhigh-pressure common railReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)43.3 kWReference
Typeopen centerReference
Valves1 to 3Reference
SCV flow65.1 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2199 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E (1.375)Reference
Dimensions
Wheelbase224 cmReference
Weight7478 to 8644 poundsReference
Front tire9.5L-15Reference
2WD Rear tire420/85R30Reference
2WD Standard tires (ag)Front: 9.5L-15. Rear: 420/85R30Reference
4WD Standard tires (ag)Front: 320/85R24. Rear: 420/85R30Reference
Flange rear axleReference
2WD ROPS3392 kgReference
4WD ROPS3508 kgReference
2WD Cab3762 kgReference
4WD Cab3920 kgReference

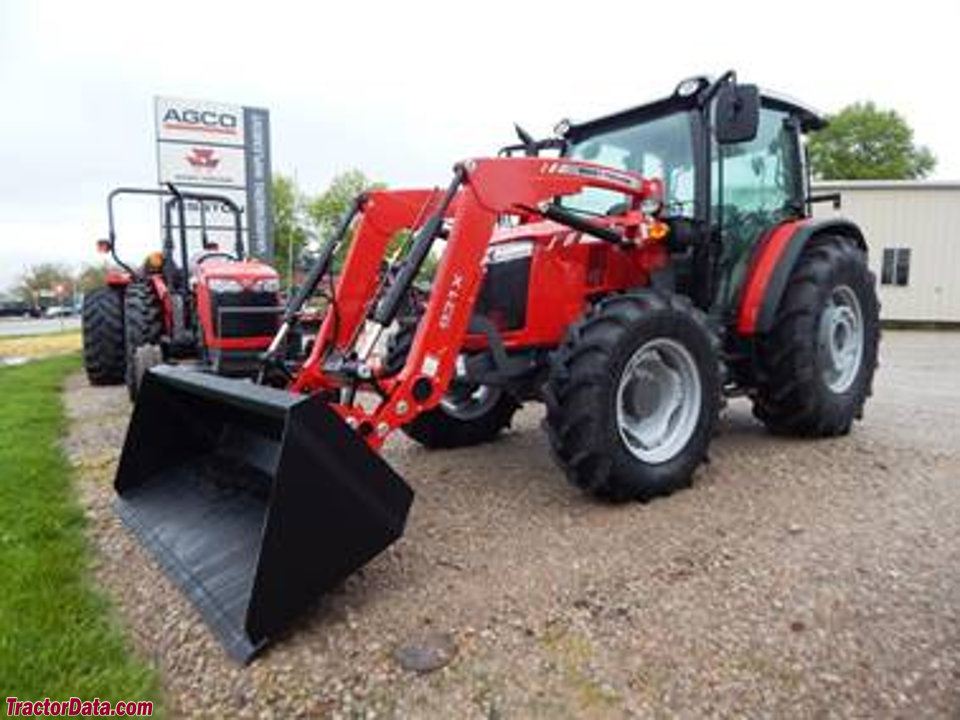

Massey Ferguson 4707 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery CCA590Reference
Battery volts12Reference
Attachment overview
AGCO 931X loaderReference
AGCO 936X loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
