Tractor · 2020Unverified

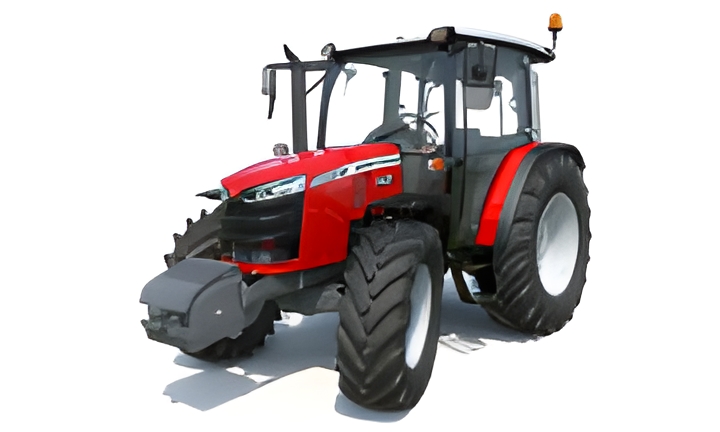

Massey Ferguson 4708M
Massey Ferguson 4708M — Utility tractor · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
6506 to 8708 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
ROPS Fuel tank104.8 LReference
Cab Fuel tank124.9 LReference
ROPS Exhaust fluid (DEF)12.9 LReference
Cab Exhaust fluid (DEF)15.1 LReference
Engine61.1 kWReference
AGCO PowerReference
turbocharged dieselReference
3-cylinder 12-valveReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
EmissionsStage 5Reference
Power61.1 kWReference
Fuel systemcommon rail electronic injectionReference
Rated RPM2000Reference
Torque347.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
12-speed power shuttleReference
24-speed two-speed power shiftReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Six synchronized gears in two ranges with mechanical shuttle.Reference
Typepower shuttleReference
Six synchronized gears in two ranges with power shuttle.Reference
TransmissionDyna-2Reference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Six gears in two ranges with two-speed power shift and power shuttle. Optional creeper range provides a total of 48 gear in each direction.Reference
PTO & Hydraulics
Pressure200.0 barReference
Pump flow65.1 lpmReference
Rear TypeIIReference
Rear lift3000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1920Reference
Engine RPM540E@1560Reference
Engine RPM1000@1964Reference
Dimensions
Wheelbase225 cmReference
Weight6506 to 8708 poundsReference
Length406 cmReference
Width182 cmReference
Height (ROPS)251 cmReference
Height (cab)255 cmReference
Ground clearance45 cmReference
2WD ROPS2951 kgReference
2WD Cab3749 kgReference
4WD ROPS3150 kgReference
4WD Cab3949 kgReference
Massey Ferguson 4708M attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
