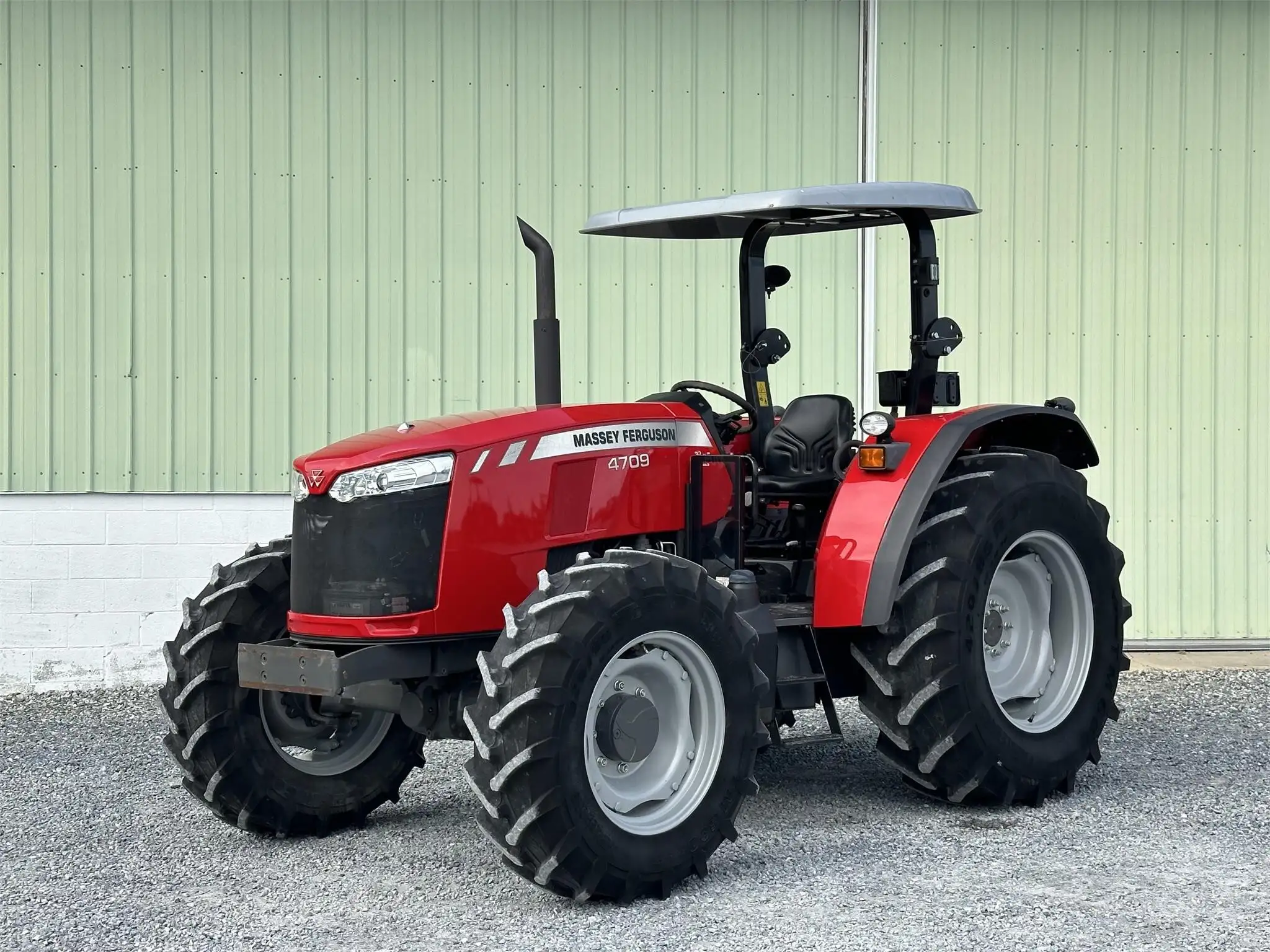

The Massey Ferguson 4709 is a tractor with a power rating of 95 hp, placing it in the middle of its class. Introduced in 2015, this tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, providing power through a four-wheel drive system with a hydrostatic transmission. It is designed for applications requiring approximately 200–800 acres of coverage.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded power
95 hp
Transmissions
12-speed mechanical shuttle
Production years
2015
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Engine (gross)70.8 kWReference
AGCO PowerReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Power (gross)70.8 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Rear lift3000 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
