Tractor · 2020Unverified

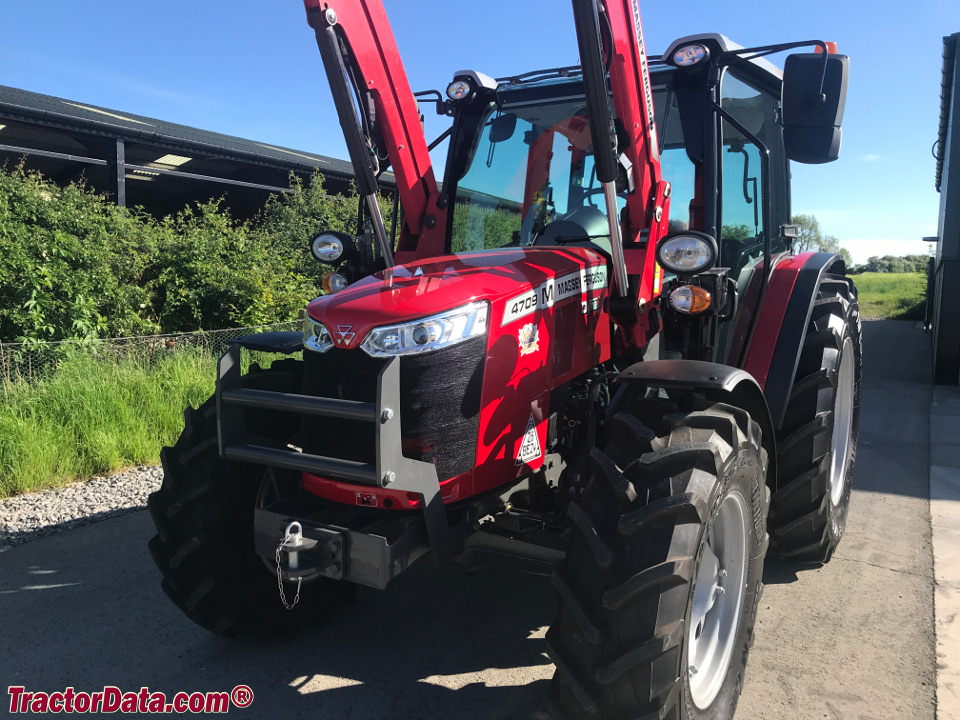

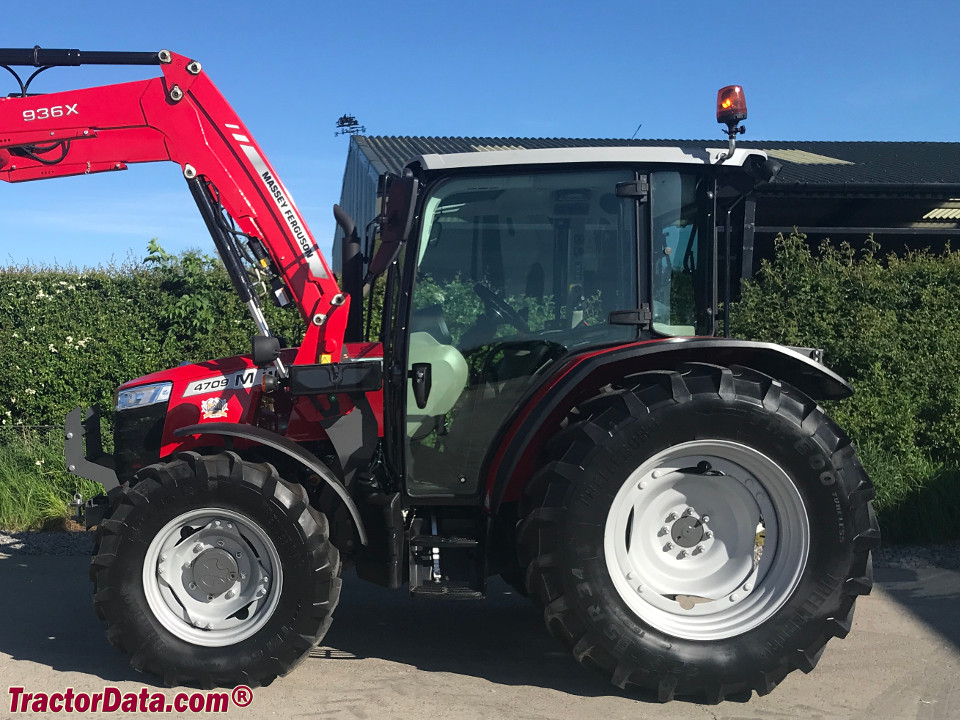

Massey Ferguson 4709M

Name: Massey Ferguson 4709M
Brand: Massey Ferguson

Massey Ferguson 4709M — Utility tractor · 92 hp. Reference specifications; pending source verification.

The Massey Ferguson 4709M is a tractor model with a rating of approximately 92 hp, positioned within the mid-range of its class. It was introduced into production in 2020. The 4709M features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. Its operating weight is listed as 6506 to 8708 pounds, and it is suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

92 hp

Weight

6506 to 8708 pounds

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

92 hp

Transmissions

12-speed mechanical shuttle

Production years

2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Two- or four-wheel driveReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Engine

AGCO Power 3.3L 3-cyl dieselReference

ROPS Fuel tank104.8 LReference

Cab Fuel tank124.9 LReference

ROPS Exhaust fluid (DEF)12.9 LReference

Cab Exhaust fluid (DEF)15.1 LReference

Engine68.6 kWReference

AGCO PowerReference

turbocharged dieselReference

3-cylinder 12-valveReference

liquid-cooled inlineReference

Displacement3.3 LReference

Bore/Stroke108 x 120 mmReference

EmissionsStage 5Reference

Power68.6 kWReference

Fuel systemcommon rail electronic injectionReference

Rated RPM2000Reference

Torque355.3 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

12-speed power shuttleReference

24-speed two-speed power shiftReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Six synchronized gears in two ranges with mechanical shuttle.Reference

Typepower shuttleReference

Six synchronized gears in two ranges with power shuttle.Reference

TransmissionDyna-2Reference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Six gears in two ranges with two-speed power shift and power shuttle. Optional creeper range provides a total of 48 gear in each direction.Reference

PTO & Hydraulics

Pressure200.0 barReference

Pump flow65.1 lpmReference

Rear TypeIIReference

Rear lift3000 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1920Reference

Engine RPM540E@1560Reference

Engine RPM1000@1964Reference

Dimensions

Wheelbase225 cmReference

Weight6506 to 8708 poundsReference

Length406 cmReference

Width182 cmReference

Height (ROPS)251 cmReference

Height (cab)255 cmReference

Ground clearance45 cmReference

2WD ROPS2951 kgReference

2WD Cab3749 kgReference

4WD ROPS3150 kgReference

4WD Cab3949 kgReference

Massey Ferguson 4709M attachments

front-end loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
