Tractor · 1962Unverified

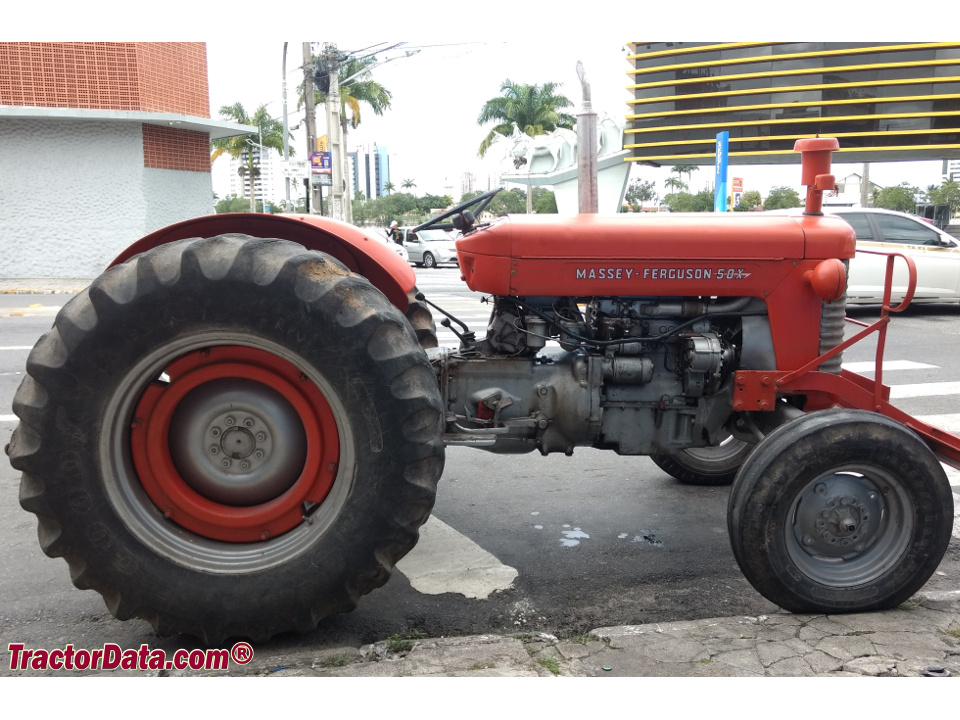

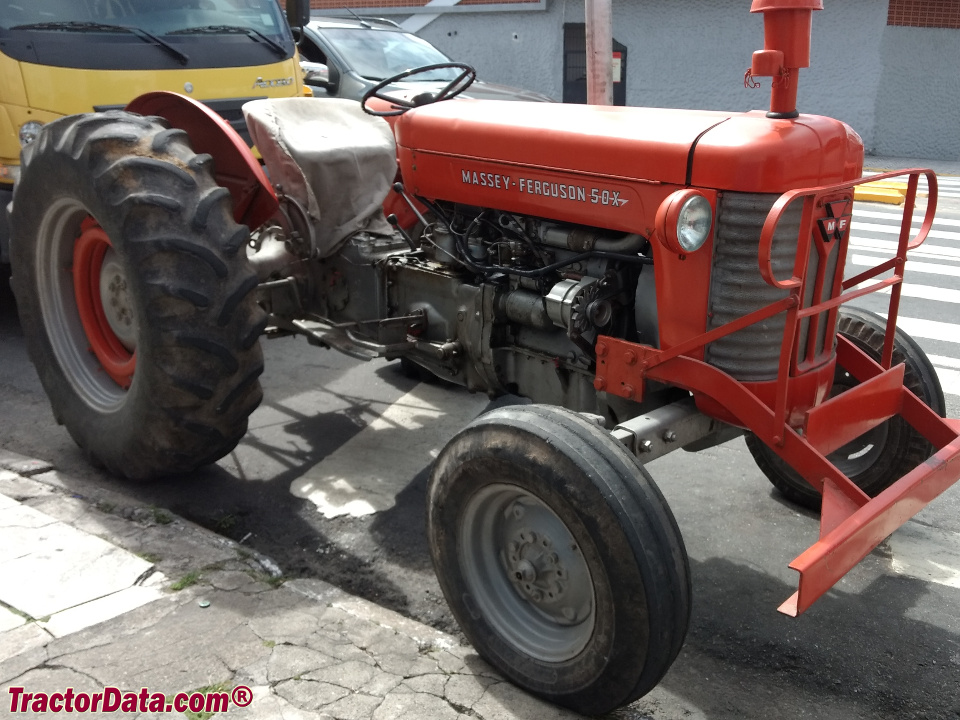

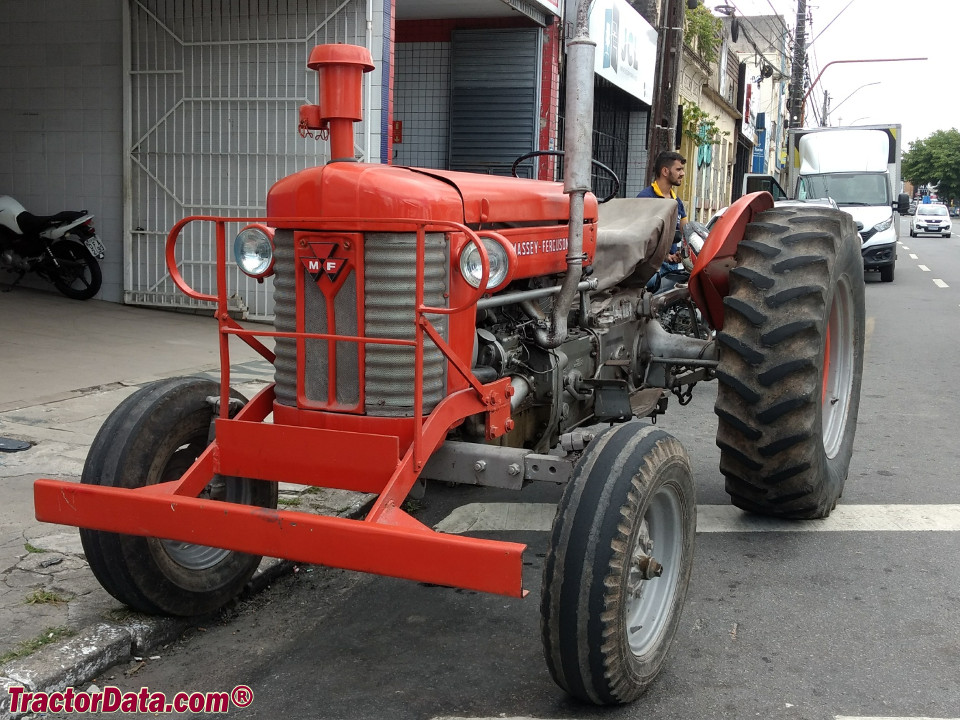

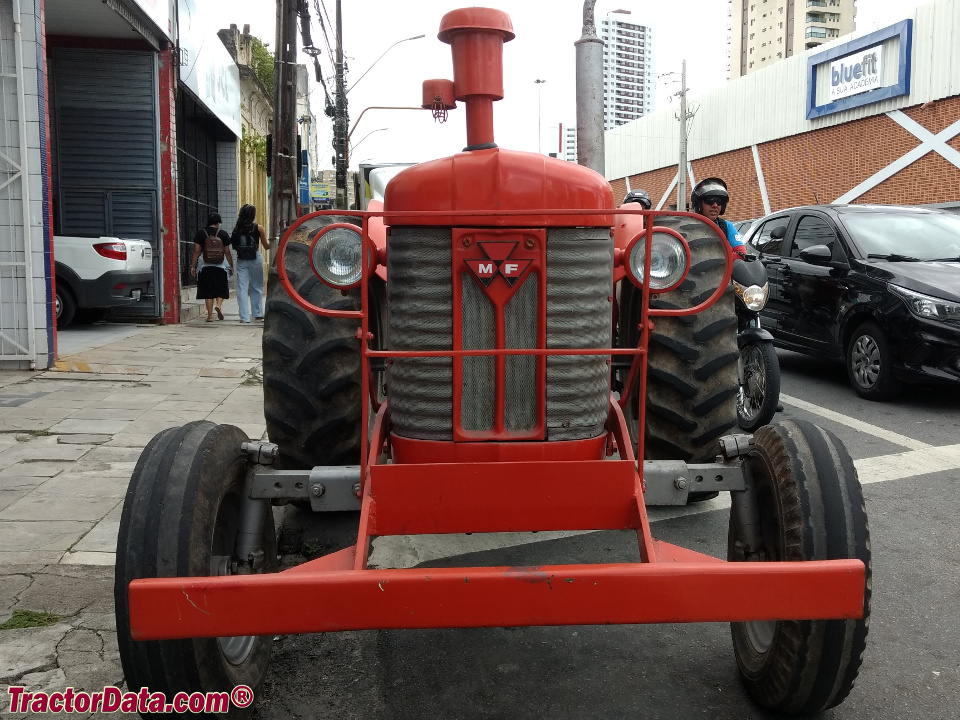

Massey Ferguson 50X
Massey Ferguson 50X — Row-Crop tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1701 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Two-wheel driveReference
Open operator station.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Engine31.3 kWReference
Perkins A3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Power31.3 kWReference
Compression17.4:1Reference
Rated RPM2250Reference
Torque154.0 NmReference
Torque RPM1300Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.0 LReference
Capacities
Fuel47.7 LReference
PTO & Hydraulics
Hydraulic system30.3 LReference
Capacity30.3 LReference
Rear TypeIReference
Rear lift1178 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1701 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag front7.50-16Reference
Ag rear13-24Reference
Ag rear13-28Reference
Ag rear12-38Reference
Length303 cmReference
Width163 cmReference
Height199 cmReference
Front tread121 to 182 cmReference
Rear tread121 to 193 cmReference
Transmission
Oil capacity30.3 LReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
