Tractor · 2002Unverified

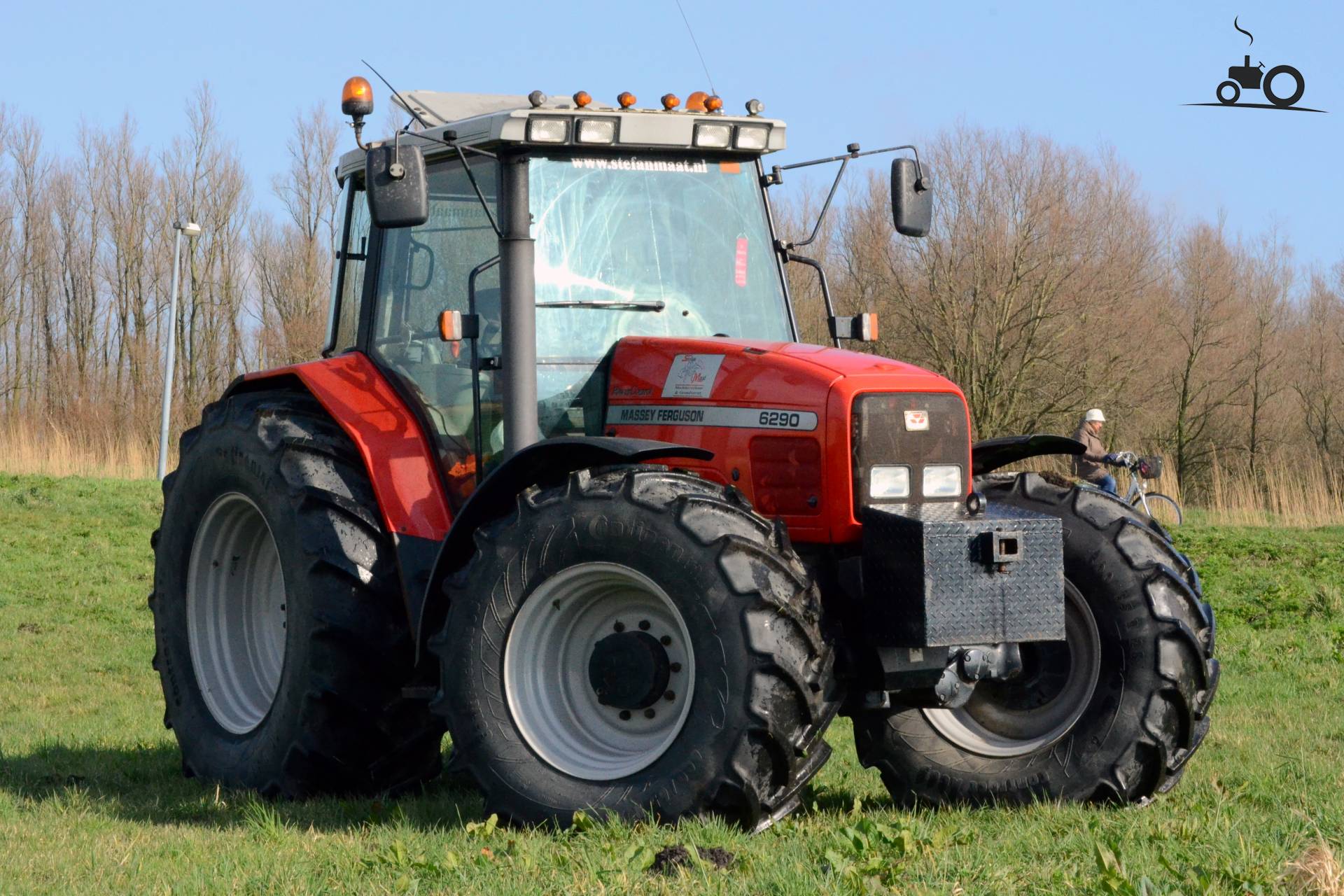

Massey Ferguson 5290
Massey Ferguson 5290 — Utility tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
10362 to 11244 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Built in Canoas, BrazilReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Engine65.6 kWReference
Perkins 4.41Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power65.6 kWReference
Air cleanerdual element dryReference
Rated RPM2200Reference
Torque291.0 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.5 LReference
Transmission
12-speedReference
18-speedReference
Gears12 forward and 4 reverseReference
Clutch330mm dry discReference
Gears18 forward and 6 reverseReference
Capacities
Fuel99.9 LReference
PTO & Hydraulics
Hydraulic system44.7 LReference
Typeopen centerReference
Capacity44.7 LReference
Pressure150.0 barReference
Valves1 or 2Reference
Total flow42.0 lpmReference
Rear TypeIIReference
Controlposition and depth controlReference
Rear lift2500 kgReference
Rear lift3200 kgReference
Rear PTOtransmissionReference
Rear PTOindependentReference
Clutch254mm dry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Dimensions
2WD Wheelbase226 cmReference
4WD Wheelbase226 cmReference
Weight10362 to 11244 poundsReference
Front tire7.50-16Reference
2WD Rear tire18.4-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 18.4-30Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 23.1-26Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 23.1-26Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 18.4-34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference
4WD Standard tires (ag)Front: 14.9-24. Rear: 23.1-26Reference
Length399 cmReference
Height264 cmReference
2WD Weight4700 kgReference
4WD Weight5100 kgReference
2WD Ground clearance41 cmReference
4WD Ground clearance39 cmReference
2WD Front tread138 to 122 cmReference
4WD Front tread172 to 203 cmReference
Rear tread152 to 233 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH90Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
