Tractor · 2002Unverified

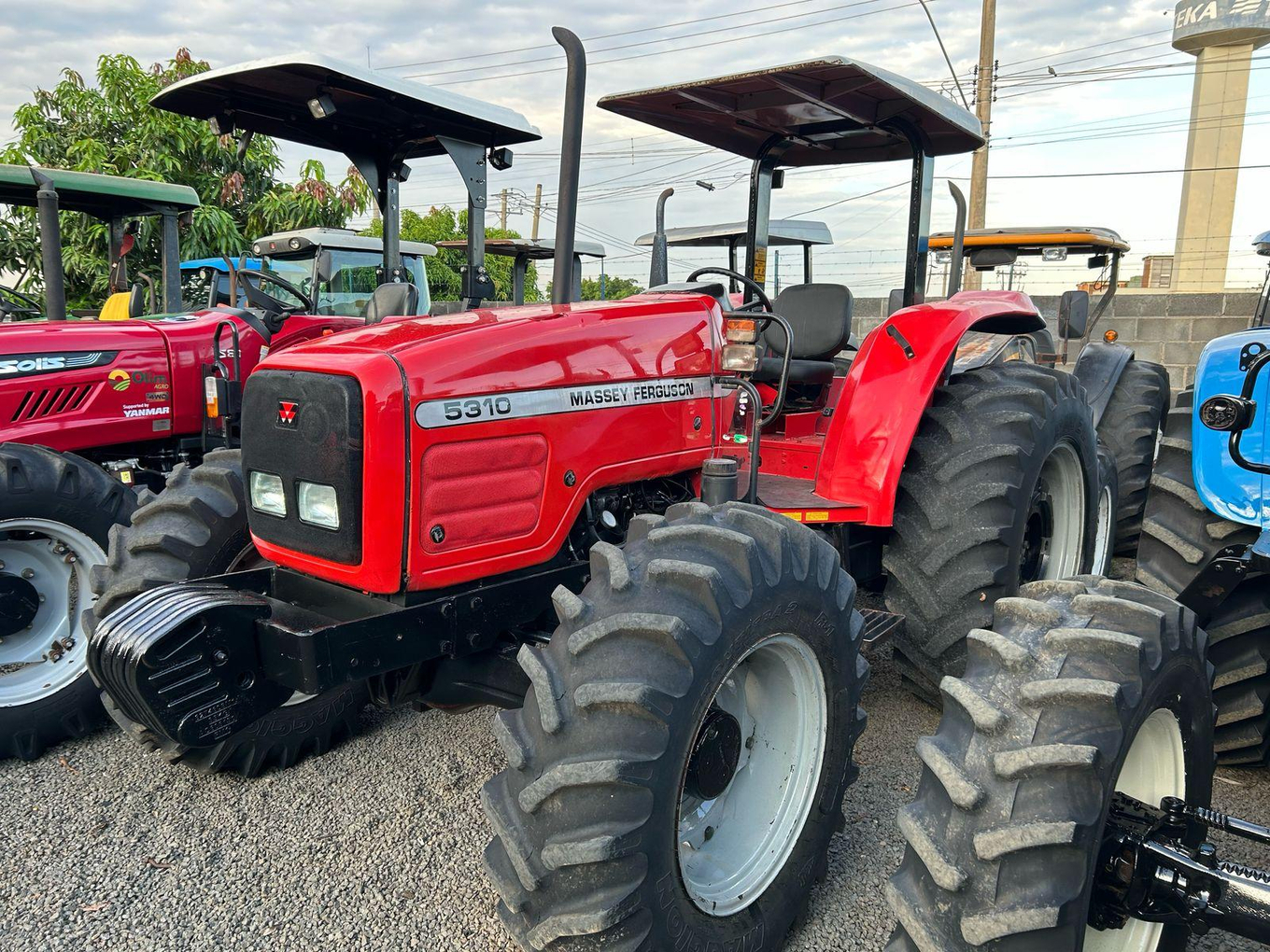

Massey Ferguson 5310
Massey Ferguson 5310 — Utility tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
3758 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Built in Canoas, BrazilReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
Engine78.3 kWReference
Perkins 1004-4TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power78.3 kWReference
Air cleanerdual element dryReference
Rated RPM2200Reference
Torque372.8 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutch330mm discReference
Capacities
Fuel124.9 LReference
PTO & Hydraulics
Hydraulic system50.0 LReference
Capacity50.0 LReference
Total flow54.9 lpmReference
Total flow65.9 lpmReference
Rear TypeIIReference
Rear lift3000 kgReference
Rear lift3999 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase234 cmReference
Weight3758 kgReference
Front tire14.9-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
Standard tires (ag)Front: 14.9-24. Rear: 23.1-26Reference
Standard tires (ag)Front: 12.4-24. Rear: 13.6-38Reference
Standard tires (ag)Front: 14.9-26. Rear: 23.1-26Reference
Length401 cmReference
Width205 cmReference
Height265 cmReference
Ballasted weight5657 kgReference
Ground clearance39 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Battery volts12Reference
Battery AH90Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
