Tractor · 2006Unverified

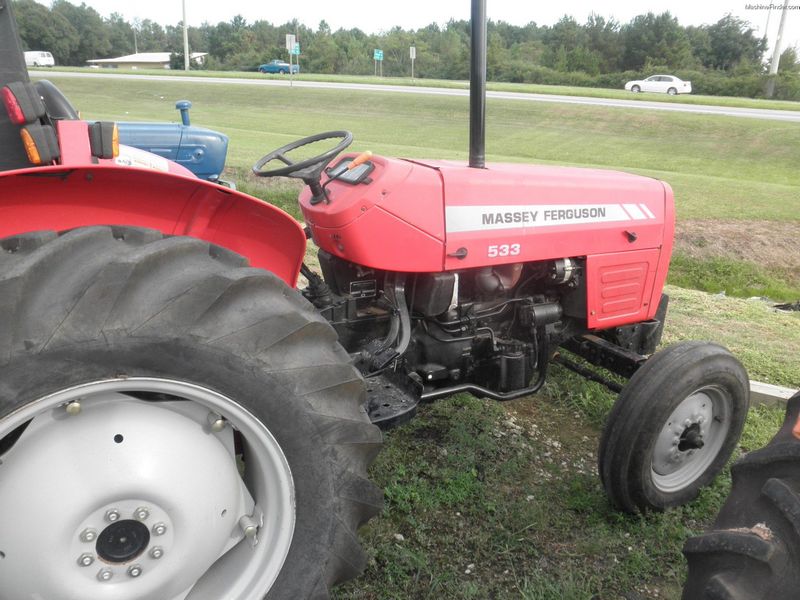

Massey Ferguson 533
Massey Ferguson 533 — 500 Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
1960 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in TurkeyReference
Two-wheel driveReference
Final drivesdirectReference
Steeringhydrostatic powerReference
Dry drum brakesReference
Two-post foldable ROPS.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank48.1 LReference
Engine (gross)38.8 kWReference
Perkins 1103C-33Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
Power (gross)38.8 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
8-speedReference
TransmissiongearReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
PTO & Hydraulics
PTO (claimed)32.8 kWReference
Typeopen centerReference
Valves0 to 2Reference
Pump flow50.7 lpmReference
Total flow71.5 lpmReference
Rear TypeI/IIReference
Rear lift (at 24"/610mm)927 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase193 cmReference
Weight1960 kgReference
Length325 cmReference
Width166 cmReference
Height234 cmReference
Shipping weight1960 kgReference
Ground clearance31 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
