Tractor · 2011Unverified

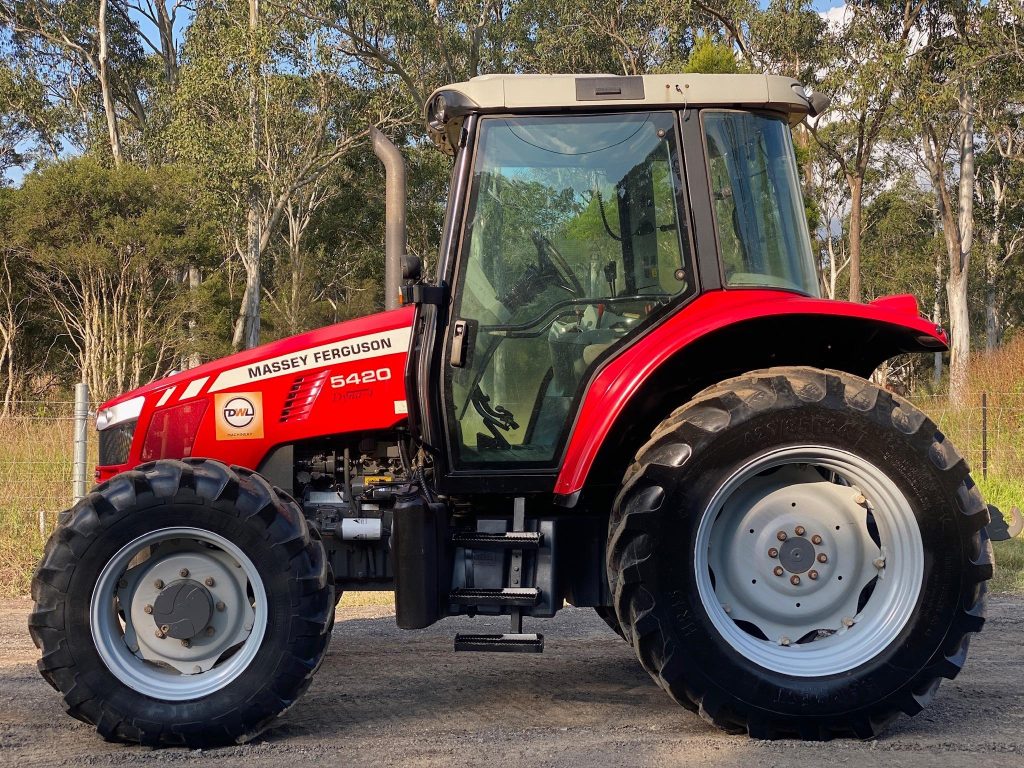

Massey Ferguson 5420

Name: Massey Ferguson 5420
Brand: Massey Ferguson

Massey Ferguson 5420 · 79 hp. Reference specifications; pending source verification.

The Massey Ferguson 5420 is a tractor model boasting a rated output of 79 hp, positioning it within the middle of its class in terms of power. Manufactured from 2011 to 2013, this model is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system through a powershift transmission. The listed weight of the tractor is 3800 kg, and it is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

79 hp

Max power

81 hp

Weight

3800 kg

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

79 hp

Recorded weight

3800 kg

Transmissions

16-speed four-speed power shift

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Four-wheel driveReference

Differential lockstandardReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with heater.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank129.8 LReference

Engine58.9 kWReference

Perkins 1104D-44TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

Power58.9 kWReference

Maximum Power60.4 kWReference

Torque305.4 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Engine torque at rated speed102.1 kgReference

Bore and stroke4.13x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed four-speed power shiftReference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 - 16F and 16RReference

Wheel Drive4WDReference

PTO & Hydraulics

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow57.9 lpmReference

Pump flow99.9 lpmReference

Total flow90.1 lpmReference

Steering flow32.2 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)4300 kgReference

Front lift2500 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Rear PTO Type540/1000Reference

Engine RPM540@1980Reference

Engine RPM540E@1550Reference

Engine RPM1000@2000Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Dimensions

Wheelbase246 cmReference

Weight3800 kgReference

Front tire11.2R24Reference

Rear tire16.9R30Reference

Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference

Length422 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Massey Ferguson 5420 Height

Cab275 cmReference

Cab255 cmReference

Cab266 cmReference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

SCV controlJoystickReference

Capacities

Capacity268.5 ciReference

Power

Max Power81 hpReference

Rated Power79 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Engine Speed on Rear PTO speed1,000@2,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)23.8 gpmReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4Reference

Steering & Implements flow8.5 gpm (26.4 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity4,300.1 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab275.1 cmReference

Overall Length422.1 cmReference

Overall weight3,800.2 kgReference

Wheels & tyres

Rear Wheel Type16.9R30Reference

Front Wheel Type11.2R24Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
