Tractor · 2004Unverified

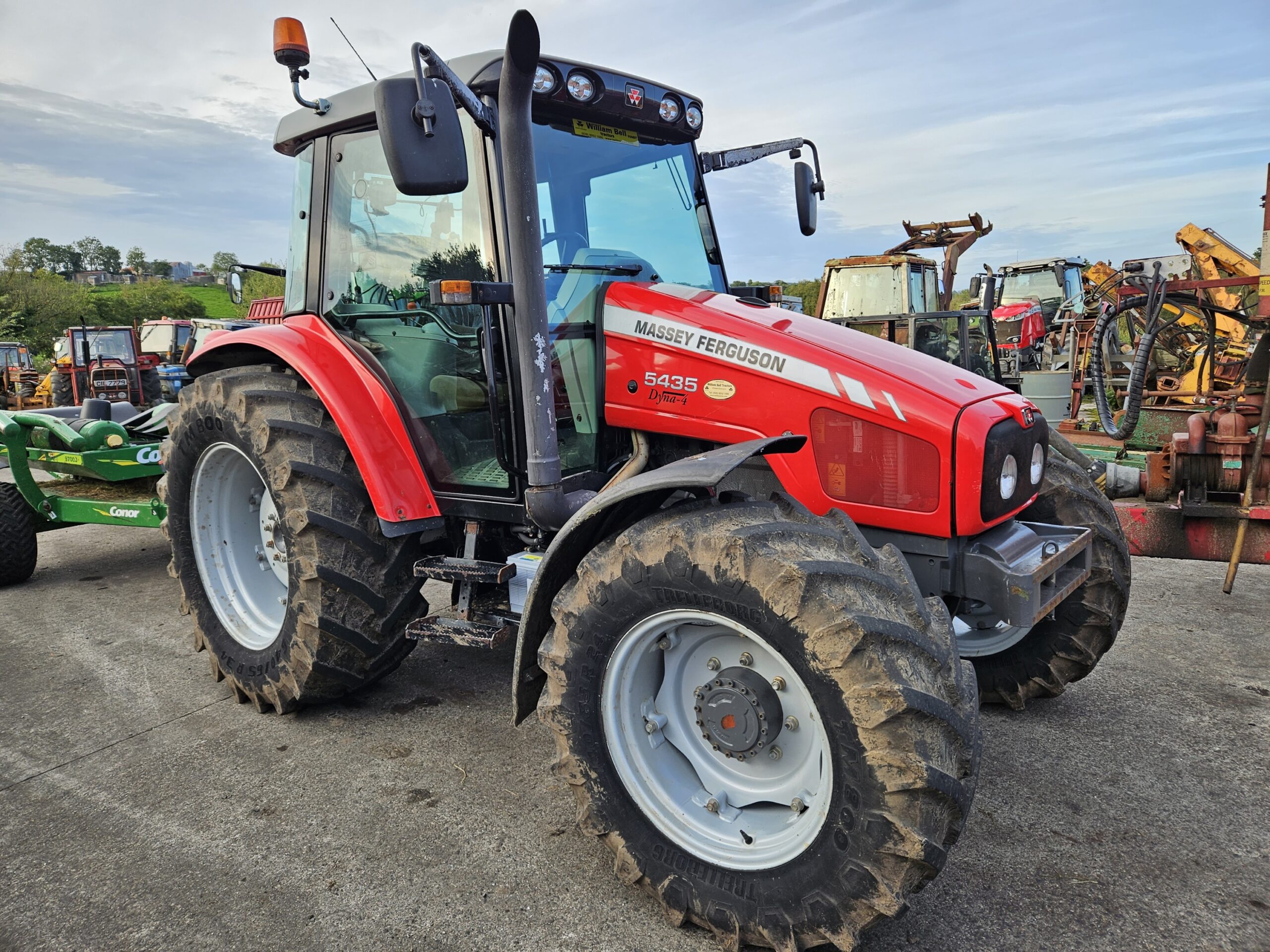

Massey Ferguson 5435
Massey Ferguson 5435 — Utility tractor · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Max power
46.0 kW
Weight
8695 to 9335 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Beauvais, FranceReference
Two- or four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
ROPS, cab optionalReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank151.4 LReference
Fuel tank201.4 LReference
Engine55.9 kWReference
Drawbar (claimed)36.5 kWReference
Drawbar (tested)36.2 kWReference
Perkins 1104Reference
dieselReference
4-cylinderReference
liquid-cooled verticalReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIReference
Power55.9 kWReference
Air cleanerdual paper elementsReference
Compression19.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power46.0 kWReference
Power at rated engine speed45.5 kWReference
Max power36.2 kWReference
Transmission
16-speedReference
TransmissionSpeedshift, mechnical powershiftReference
Gears16 forward and reverseReference
TransmissionDyna-4Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
PTO (tested)46.0 kWReference
Typeopen centerReference
TypeclosedReference
Pressure185.1 barReference
Valves2 to 4Reference
Total flow56.8 lpmReference
Total flow131.7 lpmReference
Total flow109.8 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3175 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540E/1000Reference
Power at rated PTO speed44.5 kWReference
Dimensions
Wheelbase246 cmReference
Weight8695 to 9335 poundsReference
Front tire7.50-16Reference
Rear tire18.4R34Reference
Ag front7.50-16 (2WD)Reference
Ag front14.9R24 (4WD)Reference
Ag rear18.4R34Reference
Length420 cmReference
Width201 cmReference
Height275 cmReference
2WD Operating weight3944 kgReference
4WD Operating weight4234 kgReference
Massey Ferguson 5435 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging amps80Reference
Battery CCA505Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 1065 loaderReference
Massey Ferguson 1070 loaderReference
Test results
Diesel 16-speed 4WDJanuary 2005 - February 2005, Link: OCED Tractor Test 2275 fileReference
PTO performanceReference
Fuel use15.1 l/hourReference
Fuel use14.0 l/hourReference
Drawbar performanceReference
Fuel use14.8 l/hourReference
Gear 5 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
