Tractor · 2011Unverified

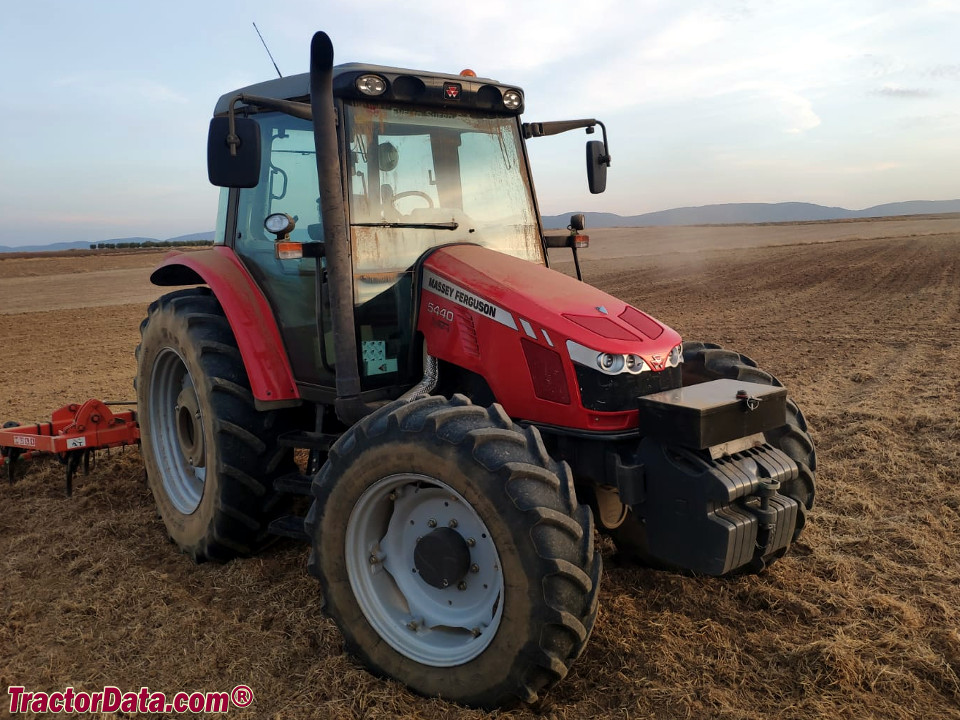

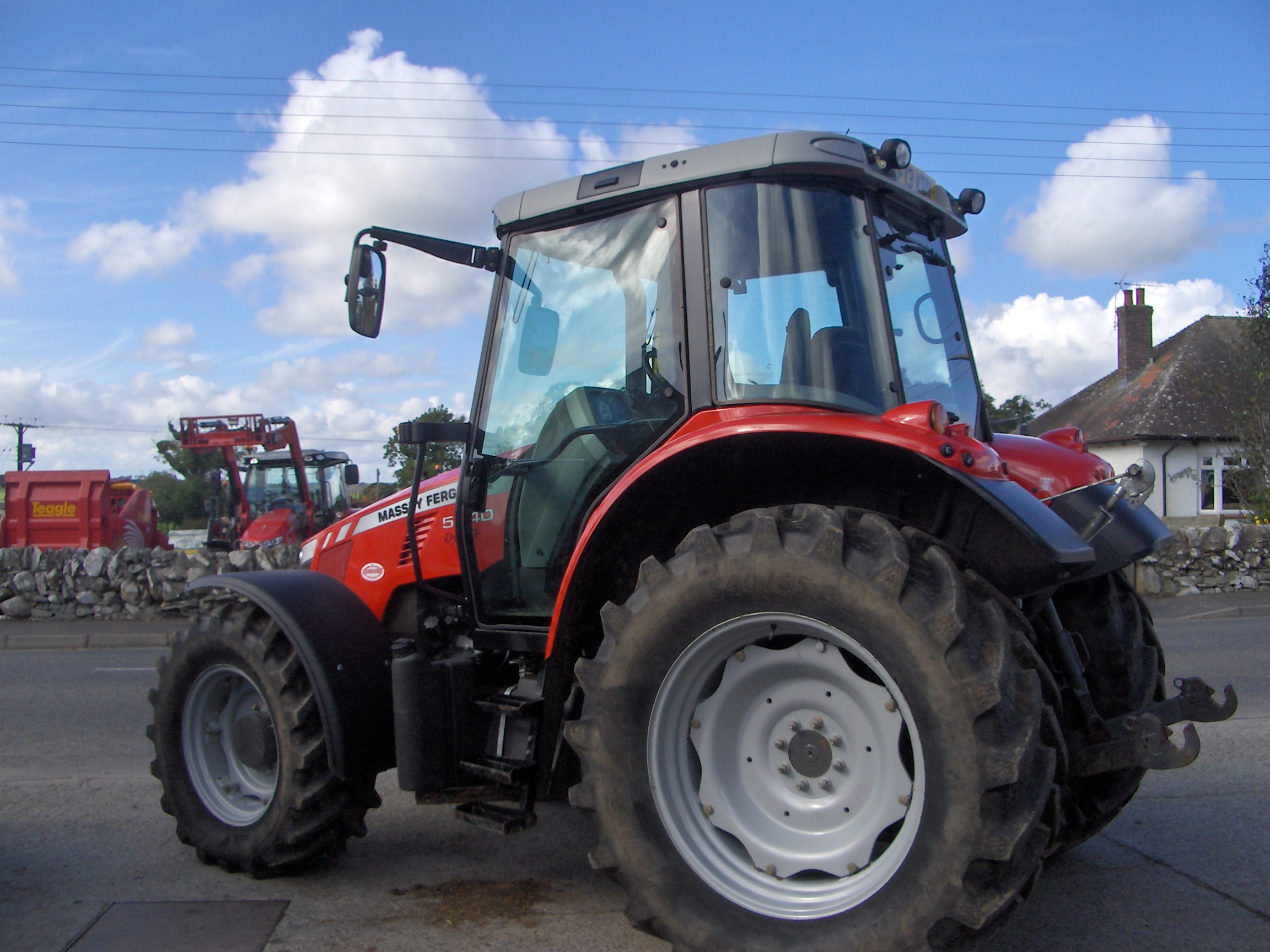

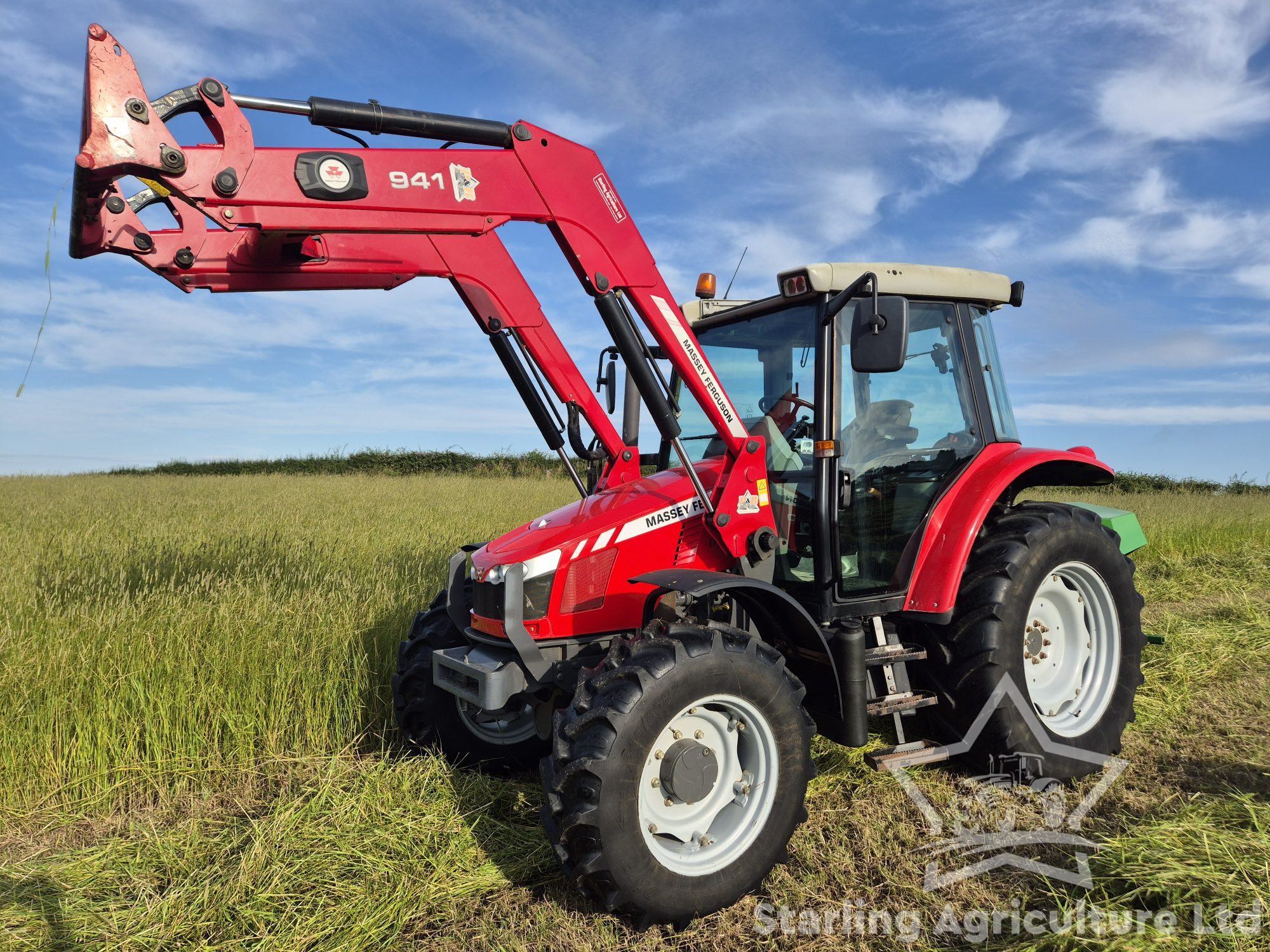

Massey Ferguson 5440

Name: Massey Ferguson 5440
Brand: Massey Ferguson

Massey Ferguson 5440 · 99 hp. Reference specifications; pending source verification.

The Massey Ferguson 5440 is a tractor with a rated power output of 99 hp, placing it in the middle of its class in terms of power. Manufactured between 2011 and 2013, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight of the 5440 is 3800 kg, and it is suited for jobs that range from approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Max power

100.7 hp

Weight

3800 kg

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

99 hp

Recorded weight

3800 kg

Transmissions

16-speed four-speed power shift

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Four-wheel driveReference

Differential lockstandardReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with heater.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank129.8 LReference

Engine73.6 kWReference

Perkins 1104D-44TAReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

Power73.6 kWReference

Maximum Power75.1 kWReference

Torque402.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Engine torque at rated speed134.5 kgReference

Bore and stroke4.13x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed four-speed power shiftReference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 -16F and 16RReference

Wheel Drive4WDReference

PTO & Hydraulics

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow57.9 lpmReference

Pump flow99.9 lpmReference

Total flow90.1 lpmReference

Steering flow32.2 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)4300 kgReference

Front lift2500 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Rear PTO Type540/1000Reference

Engine RPM540@1980Reference

Engine RPM540E@1550Reference

Engine RPM1000@2000Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Dimensions

Wheelbase246 cmReference

Weight3800 kgReference

Front tire11.2R24Reference

Rear tire16.9R30Reference

Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference

Length422 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Massey Ferguson 5440 Height

Cab275 cmReference

Cab255 cmReference

Cab266 cmReference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

SCV controlJoystickReference

Capacities

Capacity268.5 ciReference

Power

Max Power100.7 hpReference

Rated Power98.7 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Engine Speed on Rear PTO speed1,000@2,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)23.8 gpmReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 ValvesReference

Steering & Implements flow8.5 gpm (26.4 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity4,300.1 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab275.1 cmReference

Overall Length422.1 cmReference

Overall weight3,800.2 kgReference

Wheels & tyres

Rear Wheel Type16.9R30Reference

Front Wheel Type11.2R24Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
