Tractor · 2004Unverified

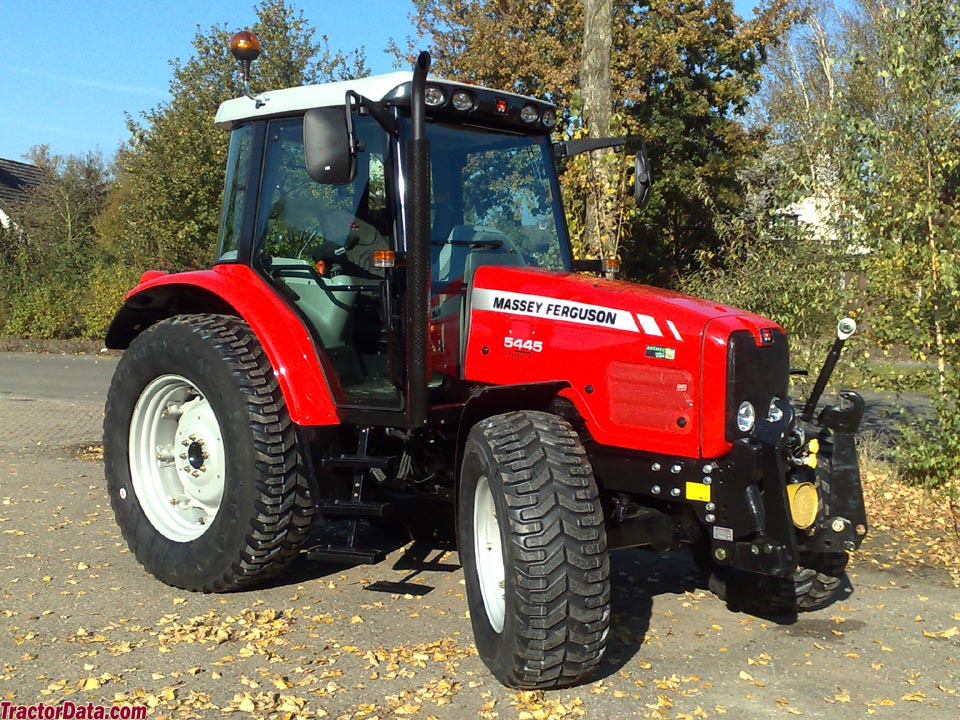

Massey Ferguson 5445

Name: Massey Ferguson 5445
Brand: Massey Ferguson

Massey Ferguson 5445 — Model year 2004-20082008-2013 · 71 hp. Reference specifications; pending source verification.

The Massey Ferguson 5445 tractor has a power rating of 71 hp, placing it in the middle of its class in terms of power output. Manufactured from 2004 to 2013, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight of the tractor ranges from 8630 to 9305 pounds. It is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

71 hp

Max power

56.6 kW

Weight

8630 to 9305 pounds

Catalogue coverage

Variants represented

Richest spec table

111 rows

Recorded power

71 hp

Recorded weight

3914 kg

Transmissions

16-speed

Production years

2004-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

ROPS, cab optionalReference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank151.4 LReference

Fuel tank201.4 LReference

Engine63.4 kWReference

Drawbar (claimed)45.5 kWReference

Drawbar (tested)45.1 kWReference

Perkins 1104Reference

wastegate turbocharged dieselReference

4-cylinderReference

liquid-cooled verticalReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIReference

Power63.4 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power56.6 kWReference

Power at rated engine speed52.7 kWReference

Max power45.1 kWReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.134x5.00 inchesReference

Compression ratio16.2:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

TransmissionSpeedshift, mechnical powershiftReference

Gears16 forward and reverseReference

TransmissionDyna-4Reference

Oil capacity15.1 LReference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 - 16F and 16RReference

Wheel Drive4WDReference

Clutchwet discReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)52.2 kWReference

PTO (tested)56.6 kWReference

Typeopen centerReference

TypeclosedReference

Pressure185.1 barReference

Valves2 to 4Reference

Total flow56.8 lpmReference

Total flow131.7 lpmReference

Total flow109.8 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)3175 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Power at rated PTO speed54.7 kWReference

Dimensions

Wheelbase246 cmReference

Weight8630 to 9305 poundsReference

Front tire10.00-16Reference

Rear tire480/70R38Reference

Ag front10.00-16 (2WD)Reference

Ag front13.6R28Reference

Ag rear480/70R38Reference

Length420 cmReference

Width201 cmReference

Height275 cmReference

2WD Operating weight3914 kgReference

4WD Operating weight4220 kgReference

Massey Ferguson 5445 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging amps80Reference

Battery CCA505Reference

Battery volts12Reference

Total cold cranking amps775 CCAReference

Attachment overview

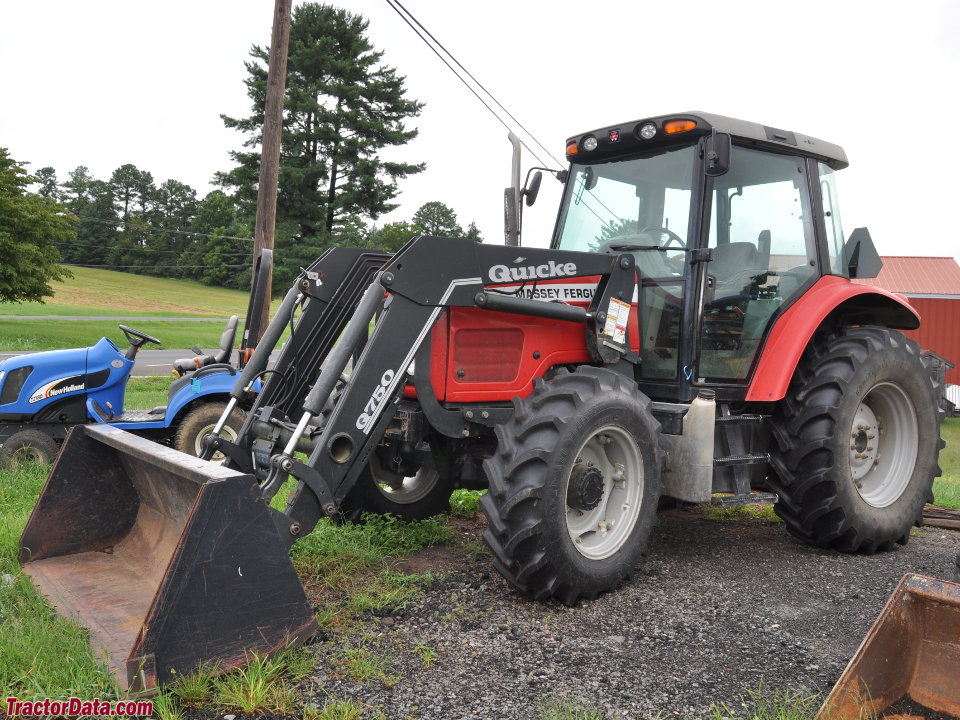

Massey Ferguson 1065 loaderReference

Massey Ferguson 1070 loaderReference

Test results

Diesel 16-speed 4WDSeptember 2004 - 2004, Link: OCED Tractor Test 2291 fileReference

PTO performanceReference

Fuel use18.5 l/hourReference

Fuel use18.9 l/hourReference

Fuel use18.2 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Max pull3937 kgReference

Gear 2TC used for pull test.Reference

General

Make & ModelMassey FergusonReference

Differential lockelectro-hydraulic rearReference

SCV controlJoystickReference

Country of manufacturerFranceReference

Capacities

Capacity268 ciReference

Power

Rated Power95 hpReference

PTO

PTO Power75 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen center | closed center load-sensingReference

Remote Valves2 to 4 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeelectronic draft controlReference

Dimensions & weight

Height Over Cab275.1 cmReference

Overall Length420.9 cmReference

Overall Width255 cmReference

Wheels & tyres

Rear Wheel Type420/85R30Reference

Front Wheel Type9.5L-15Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
