Tractor · 2011Unverified

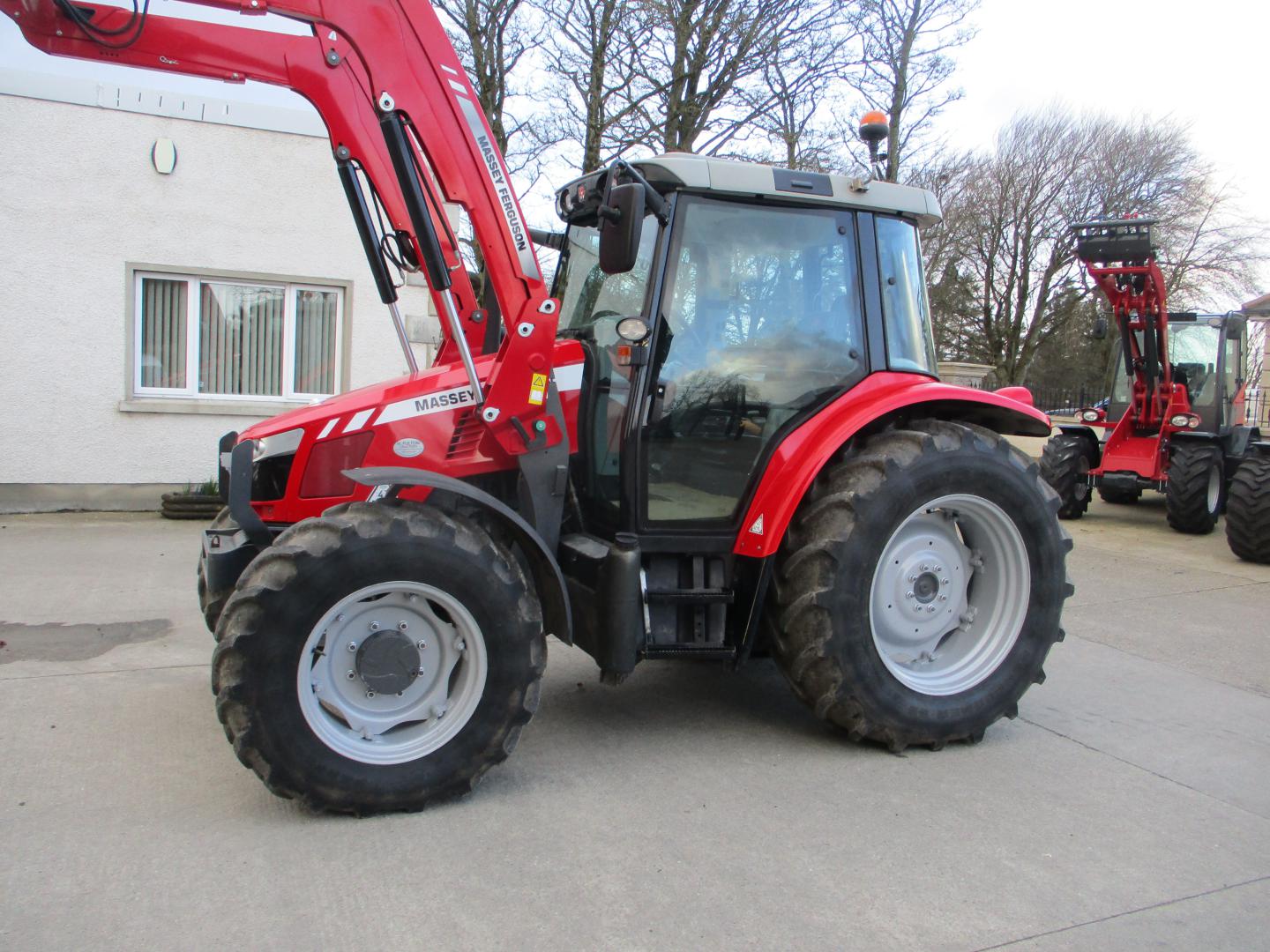

Massey Ferguson 5450
Massey Ferguson 5450 — Utility tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
7826 to 8377 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank143.8 LReference
Fuel tank189.2 LReference
Perkins 1104D-44TAReference
turbocharged air-to-air aftercooled dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Air cleanerdryReference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
TransmissionDyna-4Reference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift gears in four ranges.Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
Typeopen centerReference
Valves2 to 4Reference
SCV flow56.8 lpmReference
SCV flow98.4 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)3220 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase246 cmReference
Weight7826 to 8377 poundsReference
Length422 cmReference
Width201 cmReference
Width255 cmReference
Height (cab)275 cmReference
2WD Weight3549 kgReference
4WD Weight3799 kgReference
Front tread152 to 189 cmReference
Massey Ferguson 5450 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Massey Ferguson MF946 MSL loaderReference
Massey Ferguson MF941 NSL loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
