Tractor · 2005Unverified

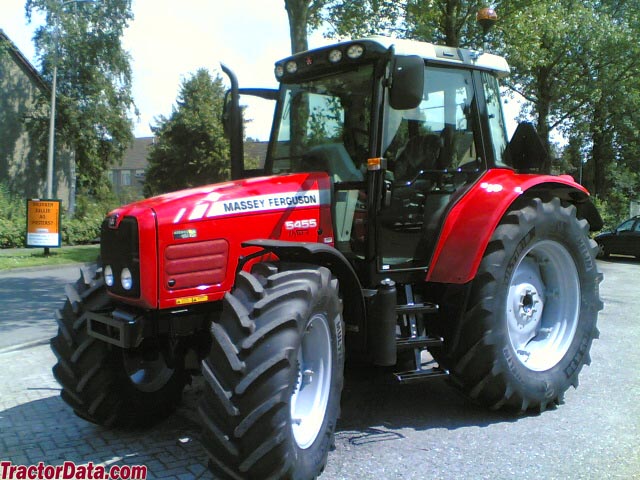

Massey Ferguson 5455

Name: Massey Ferguson 5455
Brand: Massey Ferguson

Massey Ferguson 5455 — Model year 2005-20082008-2013 · 80 hp. Reference specifications; pending source verification.

The Massey Ferguson 5455 is a tractor with an approximate power rating of 80 hp, falling within the mid-range capacity for its class. It was manufactured from 2005 to 2013. This model features a 4-cylinder turbocharged diesel liquid-cooled engine, combined with a four-wheel drive and powershift transmission. Its operating weight is listed as 8675 to 9305 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Max power

61.6 kW

Weight

8675 to 9305 pounds

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

80 hp

Recorded weight

3934 kg

Transmissions

16-speed

Production years

2005-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

ROPS, cab optionalReference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank151.4 LReference

Fuel tank201.4 LReference

Engine70.8 kWReference

Drawbar (claimed)50.0 kWReference

Drawbar (tested)49.8 kWReference

Perkins 1104Reference

wastegate turbocharged dieselReference

4-cylinderReference

liquid-cooled verticalReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIReference

Power70.8 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power61.6 kWReference

Power at rated engine speed59.8 kWReference

Max power49.8 kWReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIReference

Bore and stroke4.134x5.00 inchesReference

Compression ratio17.5:1Reference

Cooling systemliquid-cooled verticalReference

Transmission

16-speedReference

TransmissionSpeedshift, mechnical powershiftReference

Gears16 forward and reverseReference

TransmissionDyna-4Reference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 - 16F and 16RReference

Wheel Drive4WDReference

Clutchwet discReference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

PTO (tested)61.6 kWReference

Typeopen centerReference

TypeclosedReference

Pressure200.0 barReference

Valves2 to 4Reference

Total flow56.8 lpmReference

Total flow131.7 lpmReference

Total flow109.8 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)3175 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Power at rated PTO speed61.5 kWReference

Dimensions

Wheelbase246 cmReference

Weight8675 to 9305 poundsReference

Front tire10.00-16Reference

Rear tire18.4R38Reference

Ag front10.00-16 (2WD)Reference

Ag front14.9R28 (4WD)Reference

Ag rear18.4R38Reference

Length420 cmReference

Width201 cmReference

Height275 cmReference

2WD Operating weight3934 kgReference

4WD Operating weight4220 kgReference

Massey Ferguson 5455 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging amps80Reference

Battery CCA505Reference

Battery volts12Reference

Total cold cranking amps505 CCAReference

Attachment overview

Massey Ferguson 1065 loaderReference

Massey Ferguson 1070 loaderReference

Test results

Diesel 16-speed 4WDMay 1 - 31, 2004Link: OCED Tractor Test 2289 fileReference

PTO performanceReference

Fuel use18.5 l/hourReference

Fuel use19.7 l/hourReference

Drawbar performanceReference

Fuel use20.4 l/hourReference

Gear 8 used for power test.Reference

Max pull3957 kgReference

Gear 2TD used for pull test.Reference

General

Make & ModelMassey FergusonReference

Differential lockelectro-hydraulic rearReference

SCV controlJoystickReference

Country of manufacturerfranceReference

Capacities

Capacity268 ciReference

Power

Rated Power105 hpReference

PTO

PTO Power85 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet disc brakesReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen center | closed optReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 valvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeelectronic draft controlReference

Dimensions & weight

Overall Length426 cmReference

Overall Width255 cmReference

Wheels & tyres

Rear Wheel Type18.4R38Reference

Front Wheel Type10.00-16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
