Tractor · 2005Unverified

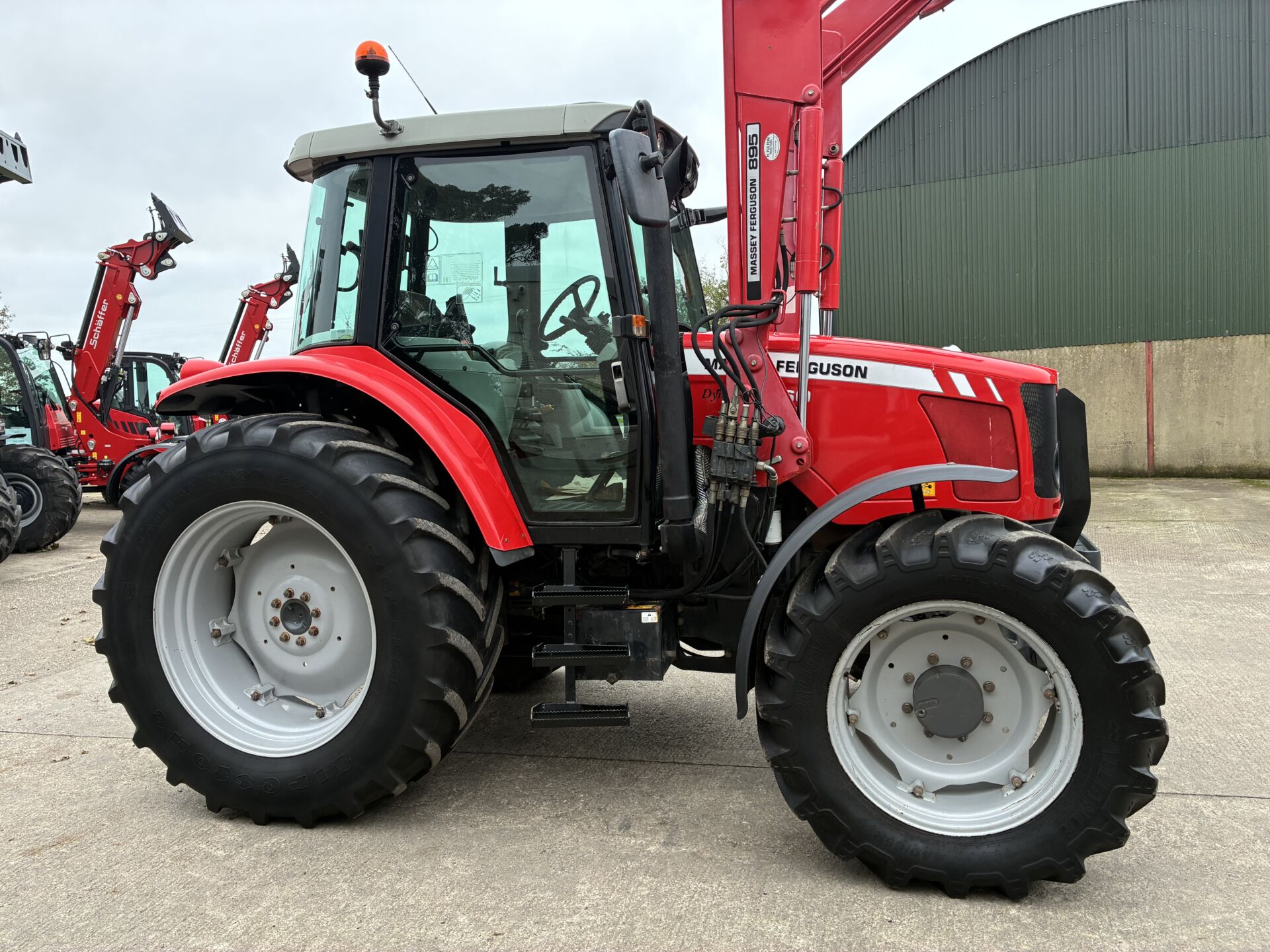

Massey Ferguson 5460

Name: Massey Ferguson 5460
Brand: Massey Ferguson

Massey Ferguson 5460 — Model year 2005-20082008-2013 · 91 hp. Reference specifications; pending source verification.

The Massey Ferguson 5460 is a tractor with a rated output of 91 hp, falling within the mid-range of its class. It was manufactured from 2005 to 2013. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a powershift transmission. Its operating weight ranges from 9170 to 9975 pounds, making it suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

91 hp

Max power

73.5 kW

Weight

9170 to 9975 pounds

Catalogue coverage

Variants represented

Richest spec table

112 rows

Recorded power

91 hp

Recorded weight

4159 kg

Transmissions

16-speed

Production years

2005-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

ROPS, cab optionalReference

Variants

5460SAlow-profile and narrow, special applicationsReference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank151.4 LReference

Fuel tank201.4 LReference

Engine78.3 kWReference

Drawbar (claimed)54.4 kWReference

Drawbar (tested)54.4 kWReference

Perkins 1104Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooled verticalReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIReference

Power78.3 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power73.5 kWReference

Power at rated engine speed67.7 kWReference

Max power54.4 kWReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.134x5.00 inchesReference

Compression ratio16.2:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

TransmissionSpeedshift, mechnical powershiftReference

Gears16 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 - 16F and 16RReference

Wheel Drive4WDReference

Clutchwet discReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

PTO (tested)73.5 kWReference

Typeopen centerReference

Typeclosed centerReference

Pressure200.0 barReference

Valves2 to 4Reference

Total flow56.8 lpmReference

Total flow131.7 lpmReference

Total flow109.8 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)3175 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Power at rated PTO speed71.7 kWReference

Dimensions

Wheelbase257 cmReference

Wheelbase255 cmReference

Weight9170 to 9975 poundsReference

Front tire10.00-16Reference

Rear tire18.4R38Reference

Ag front10.00-16 (2WD)Reference

Ag front14.9R28 (4WD)Reference

Ag rear18.4R38Reference

Length430 cmReference

Width201 cmReference

Height277 cmReference

2WD Operating weight4159 kgReference

4WD Operating weight4524 kgReference

Massey Ferguson 5460 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging amps80Reference

Battery volts12Reference

Total cold cranking amps775 CCAReference

Attachment overview

Massey Ferguson 1065 loaderReference

Massey Ferguson 1070 loaderReference

Test results

Diesel 16-speed 4WDApril 2004 - May 2004, Link: OCED Tractor Test 2270 fileReference

PTO performanceReference

Fuel use21.2 l/hourReference

Fuel use23.5 l/hourReference

Fuel use22.0 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Max pull3803 kgReference

Gear 3TC used for pull test.Reference

General

Make & ModelMassey FergusonReference

Differential lockelectro-hydraulic rearReference

SCV controlJoystickReference

Country of manufacturerfranceReference

Capacities

Capacity268 ciReference

Power

Rated Power115 hpReference

PTO

PTO Power95 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet disc brakesReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen center | closed optReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeelectronic draft controlReference

Dimensions & weight

Height Over Cab277.1 cmReference

Overall Length430 cmReference

Overall Width255 cmReference

Overall weight4,586.7 kgReference

Wheels & tyres

Rear Wheel Type420/85R38Reference

Front Wheel Type10.00-16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
