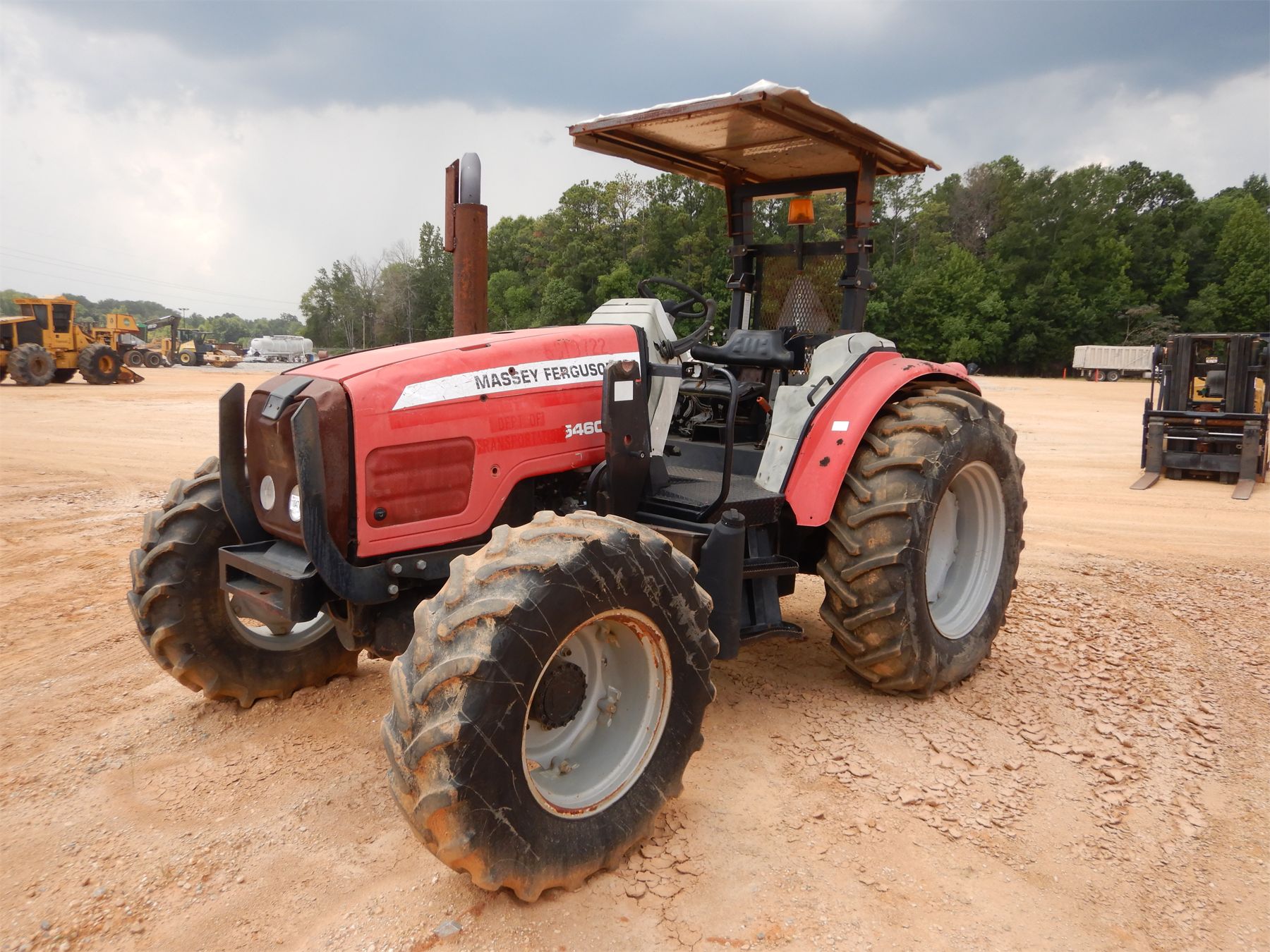

The Massey Ferguson 5460SA is a tractor with a rating of approximately 90 hp, a mid-range power output for its class. It was produced from 2004 to 2010 and features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox. The tractor has an operating weight of 7838 to 8610 pounds. It is suitable for operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
7838 to 8610 pounds
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
90 hp
Recorded weight
3555 kg
Transmissions
16-speed
Production years
2004-2010
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Pressurized cabin standard with air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank140.0 LReference
Engine78.3 kWReference
PerkinsReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke100 x 127 mmReference
Power78.3 kWReference
Rated RPM2200Reference
Transmission
16-speedReference
TransmissionSpeedshiftReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
Typeopen centerReference
Pressure210.3 barReference
Valves3Reference
Total flow98.4 lpmReference
Rear TypeIIReference
Rear lift (at ends)2993 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight7838 to 8610 poundsReference
Width200 cmReference
Height246 cmReference
2WD Weight3555 kgReference
4WD Weight3905 kgReference
Electrical
Charging amps120Reference
Battery CCA505Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
