Tractor · 2004Unverified

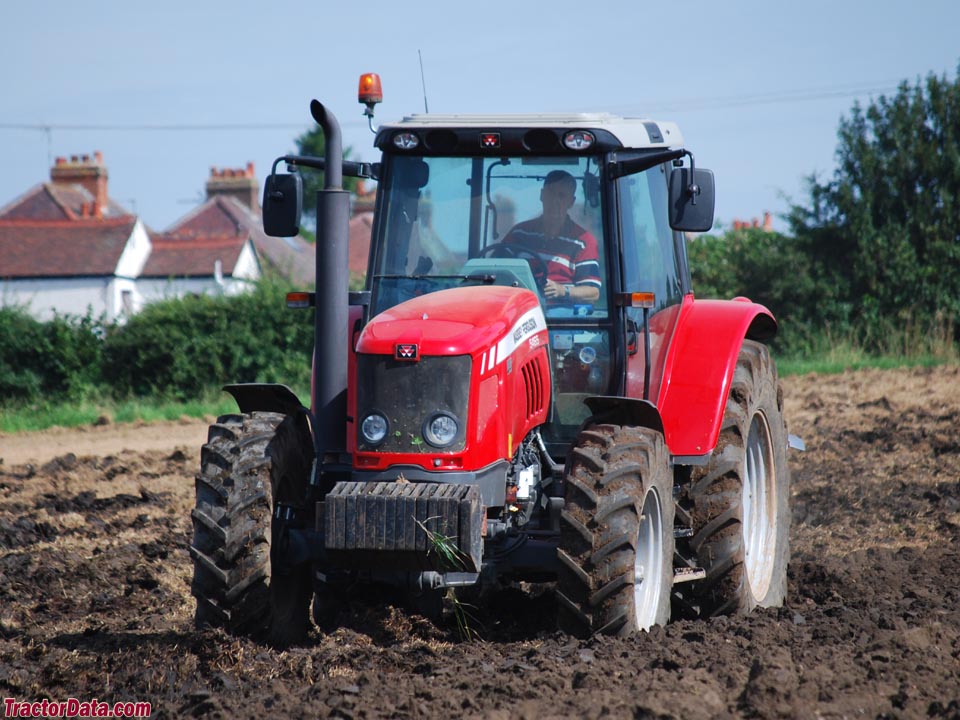

Massey Ferguson 5465

Name: Massey Ferguson 5465
Brand: Massey Ferguson

Massey Ferguson 5465 — Model year 2004-20082008-2013 · 98 hp. Reference specifications; pending source verification.

The Massey Ferguson 5465 is a tractor rated at 98 hp, placing it in the middle of its class in terms of power output. Production of the model spanned the period from 2004 to 2013. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a 16-speed gearbox and four-wheel drive. The listed weight of the tractor ranges from 9810 to 10525 pounds, and it is suited for farms of approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

98 hp

Max power

81.6 kW

Weight

9810 to 10525 pounds

Catalogue coverage

Variants represented

Richest spec table

104 rows

Recorded power

98 hp

Recorded weight

4449 kg

Transmissions

16-speed

Production years

2004-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

cab standardReference

Engine

Perkins 6.0L 6-cyl dieselReference

Fuel tank151.4 LReference

Fuel tank201.4 LReference

Engine81.3 kWReference

Drawbar (tested)61.6 kWReference

Perkins 1106Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

EmissionsTier IIReference

Power81.3 kWReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power81.6 kWReference

Power at rated engine speed72.9 kWReference

Max power61.6 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke3.937x5.00 inchesReference

Compression ratio16.2:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

TransmissionSpeedshiftReference

Gears16 forward and reverseReference

TransmissionDyna-4Reference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 -16F and 16RReference

Wheel Drive4WDReference

Clutchwet discReference

PTO & Hydraulics

PTO (claimed)70.8 kWReference

PTO (tested)81.6 kWReference

Typeopen centerReference

TypeclosedReference

Pressure185.1 barReference

Valves2 to 4Reference

Total flow56.8 lpmReference

Total flow131.7 lpmReference

Total flow109.8 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)4191 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Power at rated PTO speed79.1 kWReference

Dimensions

Wheelbase281 cmReference

Wheelbase277 cmReference

Weight9810 to 10525 poundsReference

Length450 cmReference

Width201 cmReference

Height279 cmReference

2WD Operating weight4449 kgReference

4WD Operating weight4774 kgReference

Electrical

GroundnegativeReference

Charging amps80Reference

Charging amps120 (optional)Reference

Battery CCA505Reference

Battery volts12Reference

Total cold cranking amps775 CCAReference

Test results

Diesel 16-speed 4WDNovember 2003 - December 2003, Link: OCED Tractor Test 2110 fileReference

PTO performanceReference

Fuel use23.1 l/hourReference

Fuel use23.8 l/hourReference

Drawbar performanceReference

Fuel use25.0 l/hourReference

Gear 7 used for power test.Reference

Max pull4068 kgReference

Gear 2TA used for pull test.Reference

General

Make & ModelMassey FergusonReference

Air cleanerdryReference

Differential lockelectro-hydraulic rearReference

SCV controlJoystickReference

Country of manufacturerfranceReference

Capacities

Capacity402 ciReference

PTO

PTO Power95 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PoweravailableReference

Steering & brakes

Brakeshydraulic wet disc brakesReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen center | closed center optReference

Maximum operating pressure2,684 psiReference

Remote Valves2 to 4 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeelectronic draft sensingReference

Dimensions & weight

Height Over Cab279.9 cmReference

Overall Length481.8 cmReference

Overall Width255 cmReference

Overall weight4,609.9 kgReference

Wheels & tyres

Rear Wheel Type460/85R34Reference

Front Wheel Type10.00-16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
