Tractor · 2005Unverified

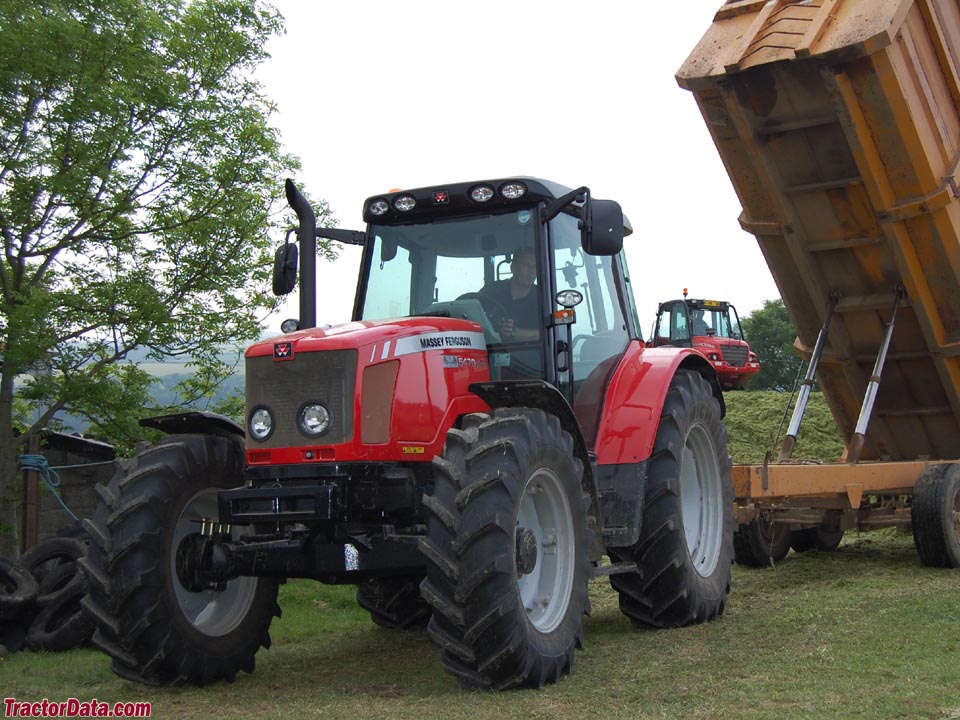

Massey Ferguson 5470

Name: Massey Ferguson 5470
Brand: Massey Ferguson

Massey Ferguson 5470 — Model year 2005-20082008-2013 · 108 hp. Reference specifications; pending source verification.

The Massey Ferguson 5470 is a tractor with a rated power output of 108 hp, positioning it within the middle range of its class. Manufactured from 2005 to 2013, it features a 4-cylinder turbocharged intercooled diesel engine, cooled by liquid and driving through a four-wheel drive system with a 16-speed gearbox. The listed weight of the tractor falls within a range of 9545 to 10385 pounds. It is designed for use on areas of approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

108 hp

Max power

82.5 kW

Weight

9545 to 10385 pounds

Catalogue coverage

Variants represented

Richest spec table

108 rows

Recorded power

108 hp

Recorded weight

4329 kg

Transmissions

16-speed

Production years

2005-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

cab standardReference

Variants

5470SAlow-profile and narrow, special applicationsReference

Engine

Sisu 4.4L 4-cyl dieselReference

Fuel tank143.8 LReference

Fuel tank208.2 LReference

Engine93.2 kWReference

Drawbar (claimed)66.4 kWReference

Drawbar (tested)66.0 kWReference

Sisu 44DTReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooled verticalReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IIReference

Power93.2 kWReference

Air cleanerdual paper elementsReference

Compression18.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power82.5 kWReference

Power at rated engine speed80.5 kWReference

Max power66.0 kWReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.252x4.724 inchesReference

Compression ratio18.5:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

TransmissionDyna-4Reference

Gears16 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 - 16F and 16RReference

Wheel Drive4WDReference

Clutchwet discReference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

PTO (tested)82.5 kWReference

Typeopen centerReference

TypeclosedReference

Pressure200.0 barReference

Valves2 to 5Reference

Total flow56.8 lpmReference

Total flow131.7 lpmReference

Total flow109.8 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)3175 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Power at rated PTO speed82.4 kWReference

Dimensions

Wheelbase266 cmReference

Weight9545 to 10385 poundsReference

Front tire10.00-16Reference

Rear tire18.4R38Reference

Ag front10.00-16 (2WD)Reference

Ag rear18.4R38Reference

Length435 cmReference

Width201 cmReference

Height279 cmReference

2WD Operating weight4329 kgReference

4WD Operating weight4710 kgReference

Electrical

GroundnegativeReference

Charging amps80Reference

Charging amps120Reference

Battery CCA505Reference

Battery volts12Reference

Total cold cranking amps600 CCAReference

Test results

Diesel 16-speed 4WDMay 2006 - 2006, Link: OCED Tractor Test 2359 fileReference

PTO performanceReference

Fuel use22.7 l/hourReference

Fuel use23.8 l/hourReference

Drawbar performanceReference

Fuel use24.2 l/hourReference

Gear 9 used for power test.Reference

Max pull4313 kgReference

Gear 1D used for pull test.Reference

General

Make & ModelMassey FergusonReference

Differential lockelectro-hydraulic rearReference

SCV controlJoystickReference

Country of manufacturerfranceReference

Capacities

Capacity269 ciReference

Power

Rated Power125 hpReference

PTO

PTO Power105 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet disc brakesReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen center | closed center optReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 5 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeelectronic draft sensingReference

Dimensions & weight

Height Over Cab279.9 cmReference

Overall Length436.9 cmReference

Overall Width255 cmReference

Overall weight4,609.9 kgReference

Wheels & tyres

Rear Wheel Type18.4R38Reference

Front Wheel Type10.00-16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
