Tractor · 2008Unverified

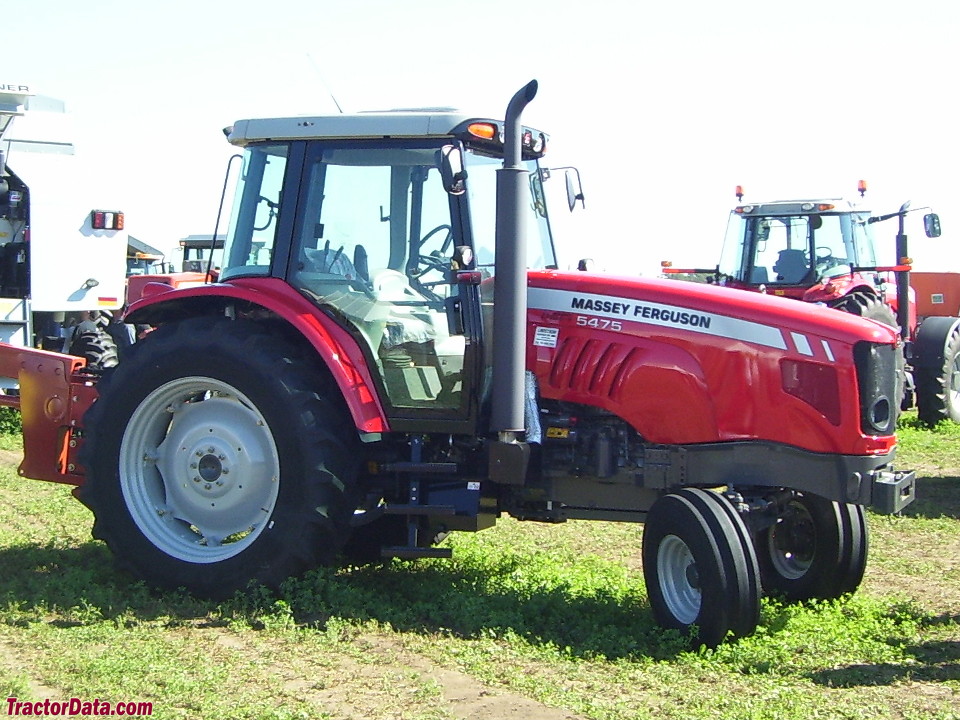

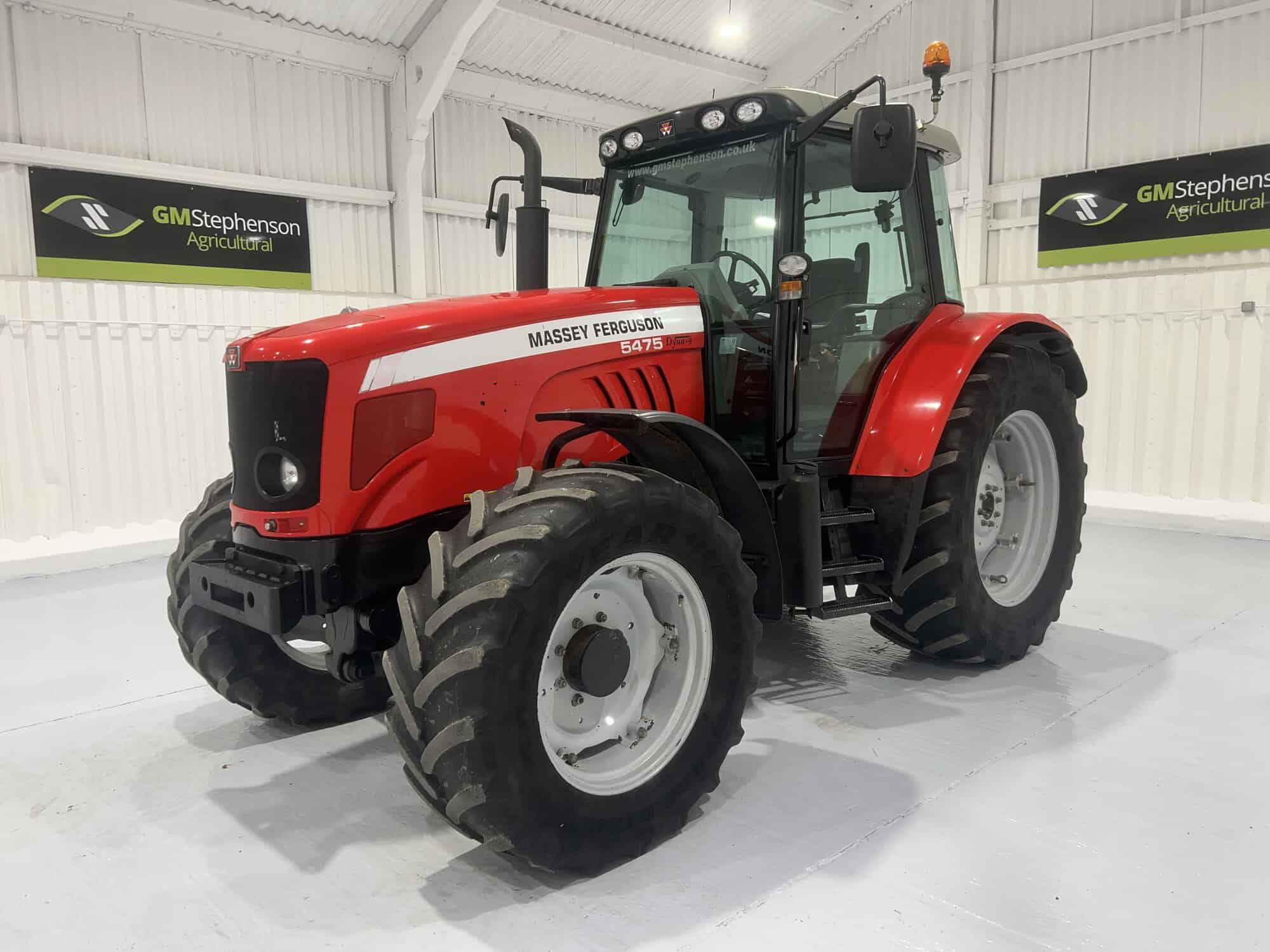

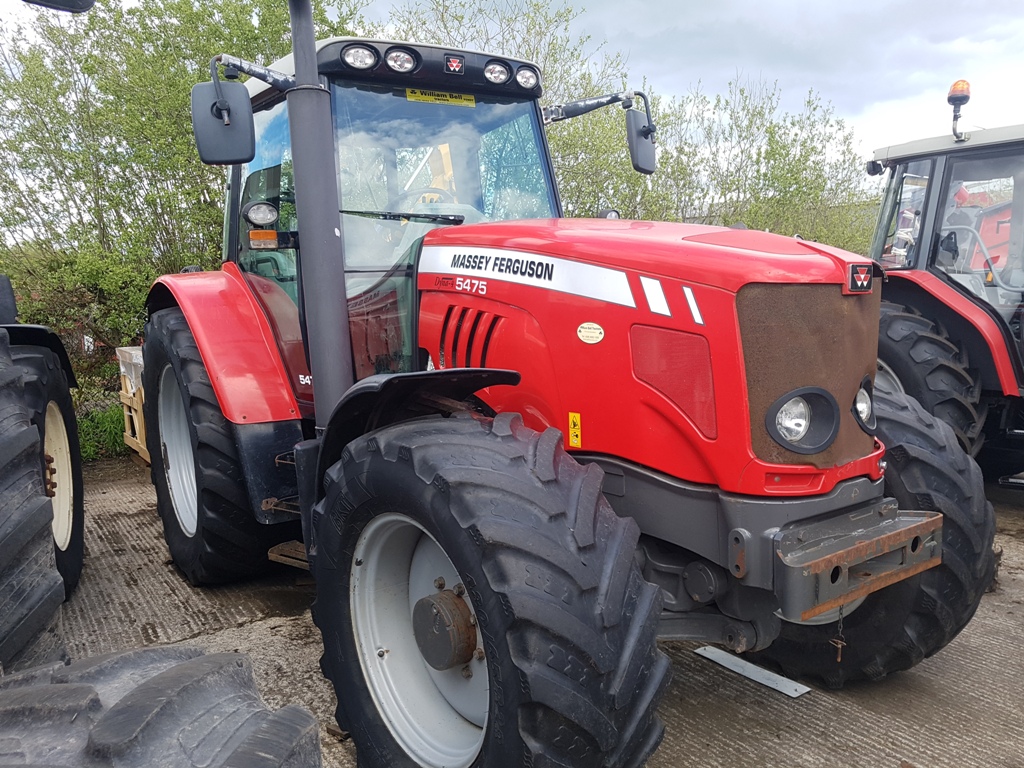

Massey Ferguson 5475
Massey Ferguson 5475 — Utility tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Max power
99.6 kW
Weight
11195 to 11905 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Beauvais, FranceReference
Original price$62,981 (2009 Cab 2WD )Reference
Original price$69,481 (2009 Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
Perkins 6.6L 6-cyl dieselReference
Fuel tank143.8 LReference
Fuel tank208.2 LReference
Engine (gross)100.7 kWReference
Drawbar (tested)75.5 kWReference
Perkins 1106Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power (gross)100.7 kWReference
Fuel systemcommon railReference
Air cleanerdryReference
Compression16.2:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power99.6 kWReference
Power at rated engine speed88.6 kWReference
Max power75.5 kWReference
Transmission
16-speed partial power shiftReference
TransmissionDyna-4Reference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift gears in four ranges.Reference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)99.6 kWReference
Typeopen centerReference
Typeclosed centerReference
Pump flow56.8 lpmReference
Pump flow98.4 lpmReference
Pump flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic draft sensingReference
Rear lift (at 24"/610mm)4168 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed98.5 kWReference
Dimensions
Wheelbase285 cmReference
Weight11195 to 11905 poundsReference
Front tire10.00-16Reference
2WD Rear tire460/85R34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 460/85R34Reference
4WD Standard tires (ag)Front: 380/85R24. Rear: 460/85R34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 420/85R38Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 460/85R38Reference
4WD Optional tires (ag)Front: 340/85R28. Rear: 420/85R38Reference
4WD Optional tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Length481 cmReference
Width201 cmReference
Width255 cmReference
Height (cab)279 cmReference
2WD cab Shipping weight5078 kgReference
4WD cab Shipping weight5400 kgReference
Massey Ferguson 5475 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Charging amps120Reference
Battery CCA775Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 955 loaderReference
Massey Ferguson 950 loaderReference
Test results
Diesel 16-speed 4WDSeptember 2009 - October 2009, Link: OCED Tractor Test 2539 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Fuel use28.8 l/hourReference
Drawbar performanceReference
Fuel use28.4 l/hourReference
Gear 3A used for power test.Reference
Max pull5384 kgReference
Gear 1D used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
