Tractor · 2004Unverified

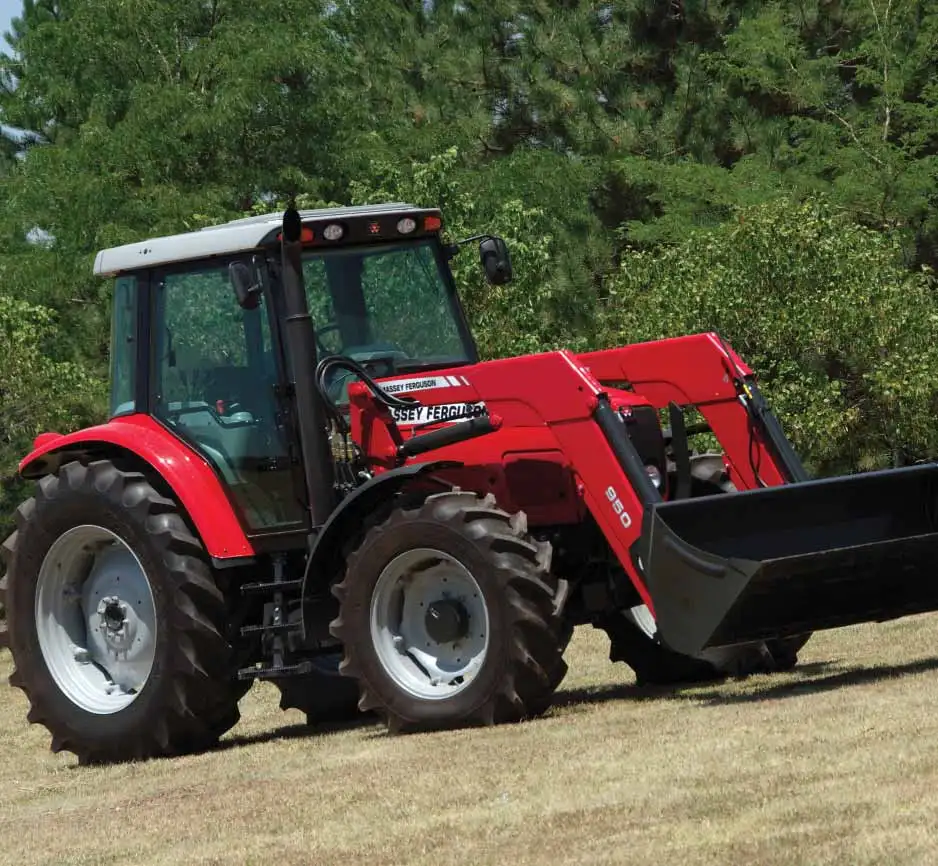

Massey Ferguson 5475SA

Name: Massey Ferguson 5475SA
Brand: Massey Ferguson

Massey Ferguson 5475SA · 105 hp. Reference specifications; pending source verification.

The Massey Ferguson 5475SA is a tractor with a power rating of approximately 105 hp, a mid-range figure within its class. This model was manufactured from 2004 to 2010 and features a 4-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a 16-speed gearbox. The tractor's operating weight ranges from 8478 to 9250 pounds, and it is suitable for operations spanning 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Max power

125 hp

Weight

8478 to 9250 pounds

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

105 hp

Recorded weight

3845 kg

Transmissions

16-speed

Production years

2004-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Pressurized cabin standard with air-conditioning.Reference

Engine

Sisu 4.4L 4-cyl dieselReference

Fuel tank140.0 LReference

Engine93.2 kWReference

SisuReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

Power93.2 kWReference

Rated RPM2200Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.25x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

TransmissionSpeedshiftReference

Gears16 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsSpeedshift - 16F and 16RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

Typeopen centerReference

Pressure210.3 barReference

Valves3Reference

Total flow98.4 lpmReference

Rear TypeIIReference

Rear lift (at ends)2993 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Weight8478 to 9250 poundsReference

Width200 cmReference

Height246 cmReference

2WD Weight3845 kgReference

4WD Weight4195 kgReference

Electrical

Charging amps120Reference

Battery CCA505Reference

Total cold cranking amps505 CCAReference

General

Make & ModelMassey FergusonReference

Capacities

Capacity268.5 ciReference

Power

Max Power125 hpReference

PTO

PTO Power105 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)26 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure3,050 psiReference

Remote Valves3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity2,993.7 kgReference

Dimensions & weight

Overall Height246.4 cmReference

Overall Width200.9 cmReference

Overall weight4,195.7 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
