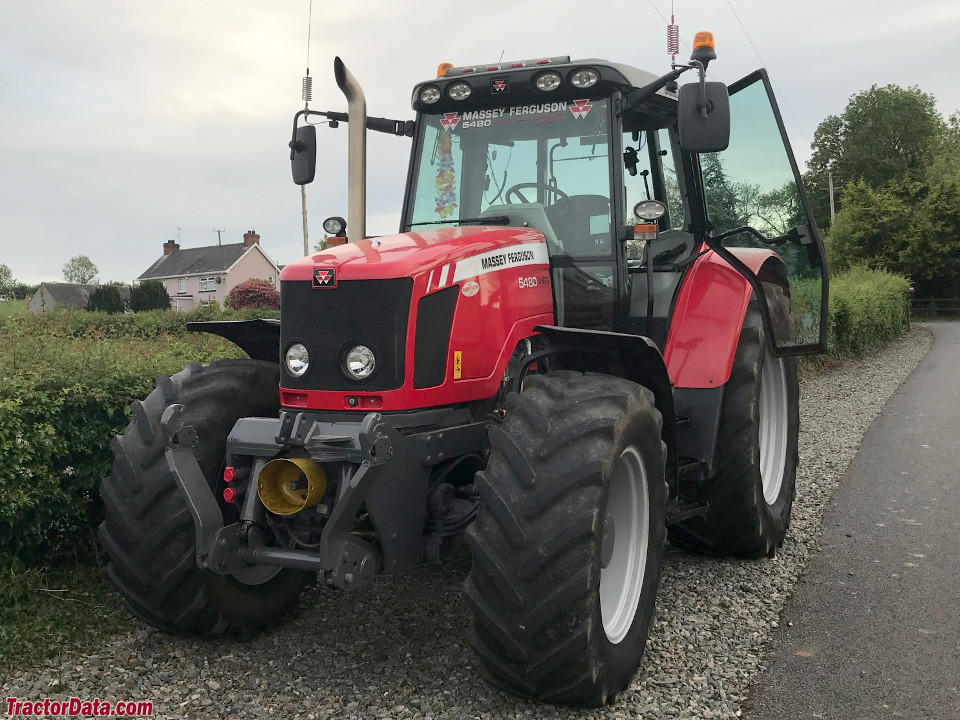

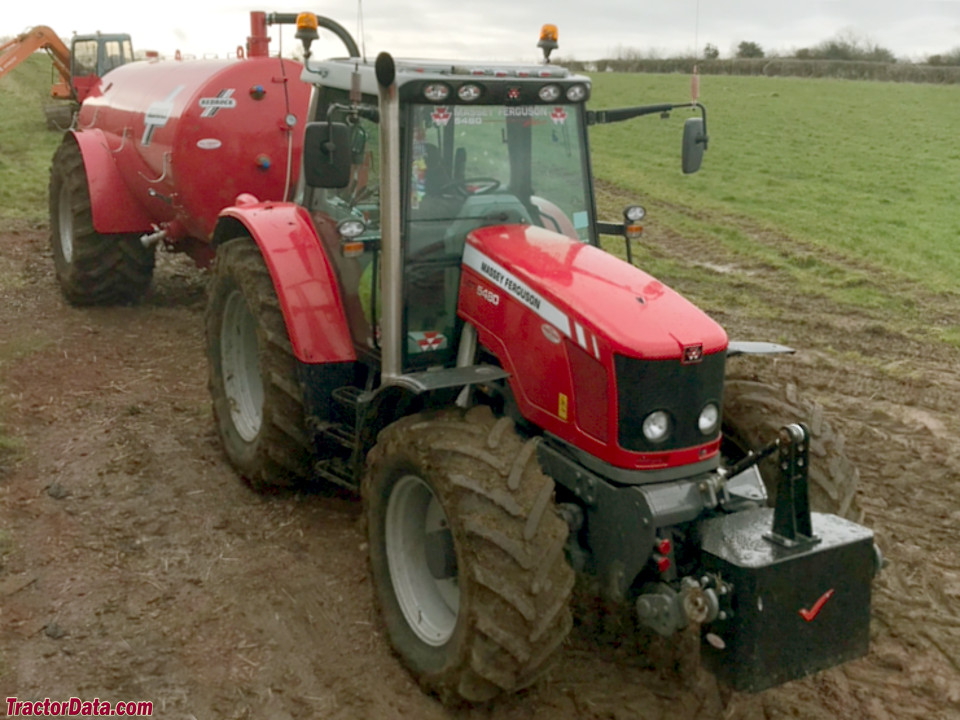

Massey Ferguson 5480
Massey Ferguson 5480 — Utility tractor · 140 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
140 hp
Max power
100.6 kW
Weight
9453 to 10163 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Beauvais, FranceReference
Original price$65,578 (2009 Cab 2WD )Reference
Original price$72,078 (2009 Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
SisuDiesel 4.9L 4-cyl dieselReference
Fuel tank143.8 LReference
Fuel tank208.2 LReference
Engine (gross)104.4 kWReference
Drawbar (tested)76.9 kWReference
SisuDiesel 49CTAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier IIIReference
Power (gross)104.4 kWReference
Maximum Power115.6 kWReference
Fuel systemcommon railReference
Air cleanerdryReference
Compression17.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power100.6 kWReference
Power at rated engine speed90.4 kWReference
Max power76.9 kWReference
Transmission
16-speed partial power shiftReference
TransmissionDyna-4Reference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift gears in four ranges.Reference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
PTO (tested)100.6 kWReference
Typeopen centerReference
Typeclosed centerReference
Pump flow56.8 lpmReference
Pump flow98.4 lpmReference
Pump flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic draft sensingReference
Rear lift (at 24"/610mm)4168 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed99.5 kWReference
Dimensions
Wheelbase267 cmReference
Weight9453 to 10163 poundsReference
Front tire10.00-16Reference
2WD Rear tire460/85R34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 460/85R34Reference
4WD Standard tires (ag)Front: 380/85R24. Rear: 460/85R34Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 460/85R34Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 420/85R38Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 460/85R38Reference
4WD Optional tires (ag)Front: 340/85R28. Rear: 420/85R38Reference
4WD Optional tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Length436 cmReference
Width201 cmReference
Width255 cmReference
Height (cab)279 cmReference
Shipping weight4287 kgReference
Shipping weight4609 kgReference
Massey Ferguson 5480 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Charging amps120Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 955 loaderReference
Massey Ferguson 950 loaderReference
Test results
Diesel 16-speed 4WDJune 12 - 27, 2008Link: OCED Tractor Test 1933 fileReference
PTO performanceReference
Fuel use29.1 l/hourReference
Fuel use31.4 l/hourReference
Drawbar performanceReference
Fuel use31.0 l/hourReference
Gear 9 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
