Tractor · 2013Unverified

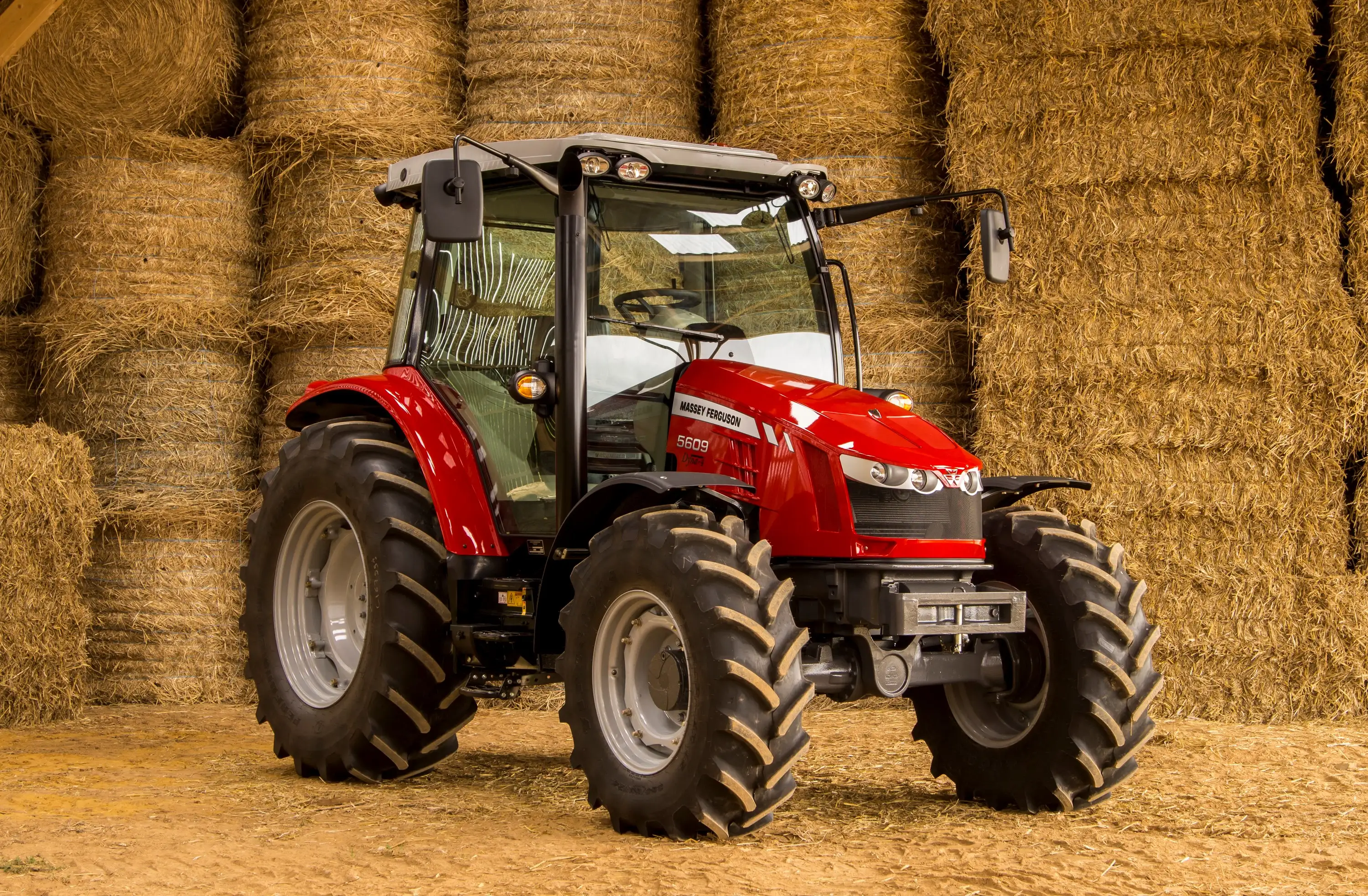

Massey Ferguson 5609

Name: Massey Ferguson 5609
Brand: Massey Ferguson

Massey Ferguson 5609 — Utility tractor · 70 hp. Reference specifications; pending source verification.

The Massey Ferguson 5609 is a tractor model rated at 70 hp, positioning it in the middle of its class in terms of power output. Manufactured from 2013 to 2017, this model features a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives four-wheel drive via a hydrostatic transmission. The listed weight of the 5609 is 8426 to 8978 pounds, and it is designed for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

70 hp

Max power

95 hp

Weight

8426 to 8978 pounds

Catalogue coverage

Variants represented

Richest spec table

125 rows

Recorded power

70 hp

Transmissions

16-speed four-speed power shift with power shuttle

Production years

2013-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Original price was $74,659 in 2014Reference

Two- or four-wheel driveReference

Final drivesinternal planetaryReference

Differential lockfull locking electro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakespneumatic (optional)Reference

Trailer brakeshydraulic (optional)Reference

Cab standard with air-conditioning. Optional mechanical cab suspension. AGCOMMAND (optional)Reference

Engine

AGCO Power 3.3L 3-cyl dieselReference

Fuel tank160.1 LReference

Engine67.1 kWReference

AGCO Power 33 AWIReference

turbocharged intercooled dieselReference

3-cylinder 12-valveReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke108 x 120 mmReference

EmissionsInterim Tier IVReference

Emission controlexternal exhaust gas recirculation with diesel oxidation catalyst (DOC) (EGR)Reference

Power67.1 kWReference

Maximum Power70.8 kWReference

Fuel systemhigh pressure common rail direct injectionReference

Air cleanerdual stage dryReference

Pre-heatingintake heaterReference

Rated RPM2200Reference

Idle RPM850-2402Reference

Torque404.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity13.0 LReference

Coolant capacity14.5 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed135.2 kgReference

Bore and stroke4.25x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed four-speed power shift with power shuttleReference

32-speed creeperReference

TransmissionDyna-4Reference

Typefour-speed power shift with power shuttleReference

Gears16 forward and reverseReference

Clutchwet discReference

Oil capacity65.0 LReference

TypecreeperReference

Gears32 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 - 16 F and 16R || Creeper - 32 F and 32RReference

Wheel Drive4WDReference

Rear Axle Drive Typeinternal planetaryReference

PTO & Hydraulics

PTO (claimed)52.2 kWReference

Typeopen centerReference

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow56.8 lpmReference

Pump flow98.4 lpmReference

Rear TypeIIReference

Controlelectronic lower link draft controlReference

Rear lift (at ends)4300 kgReference

Rear lift (at 24"/610mm)3220 kgReference

Front HitchII (optional)Reference

Front lift (at ends)2494 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Rear PTO Type540/540E/1000 (1.375)Reference

Engine RPM540@1920Reference

Engine RPM540E@1964Reference

Engine RPM1000@1560Reference

Dimensions

Wheelbase246 cmReference

Weight8426 to 8978 poundsReference

Rear tire16.9R38Reference

Ag rear16.9R38Reference

Length425 cmReference

Width201 cmReference

Height (cab)282 cmReference

Ground clearance44 cmReference

Flange rear axleReference

3822 kgReference

4072 kgReference

2WD Max front axle2760 kgReference

4WD Max front axle4762 kgReference

Max rear axle4989 kgReference

Massey Ferguson 5609 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Attachment overview

Massey Ferguson 931 loaderReference

Massey Ferguson 941 loaderReference

Massey Ferguson 946 loaderReference

Capacities

Max capacity9752 kgReference

Capacity201 ciReference

Crankcase oil volume13.7 qtsReference

Speeds

With 16.9-38 R1 rear tires.Reference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

SCV controlJoystickReference

Rear Axle TypeFlangeReference

Hydraulics

Capacity Valves12 valvesReference

Hydraulics TypeOpen CenterReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 valvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity4,300.1 kgReference

Rear Hitch Sensing Typeelectronic lower link draft controlReference

Front Hitch category (SAE designation)Category II (optional)Reference

Power

Max Power95 hpReference

Rated Power90 hpReference

PTO

PTO Power70 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 rpmReference

Engine Speed on Rear PTO speed1,000@1,560 rpmReference

Steering & brakes

BrakesHydraulic Wet Disk BrakesReference

Steering typeHydrostatic PowerReference

Dimensions & weight

Height Over Cab282.7 cmReference

Overall Length425.5 cmReference

Overall Width201.4 cmReference

Overall weight4,072.3 kgReference

Wheels & tyres

Rear Wheel Type16.9R38Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
