Tractor · 2013Unverified

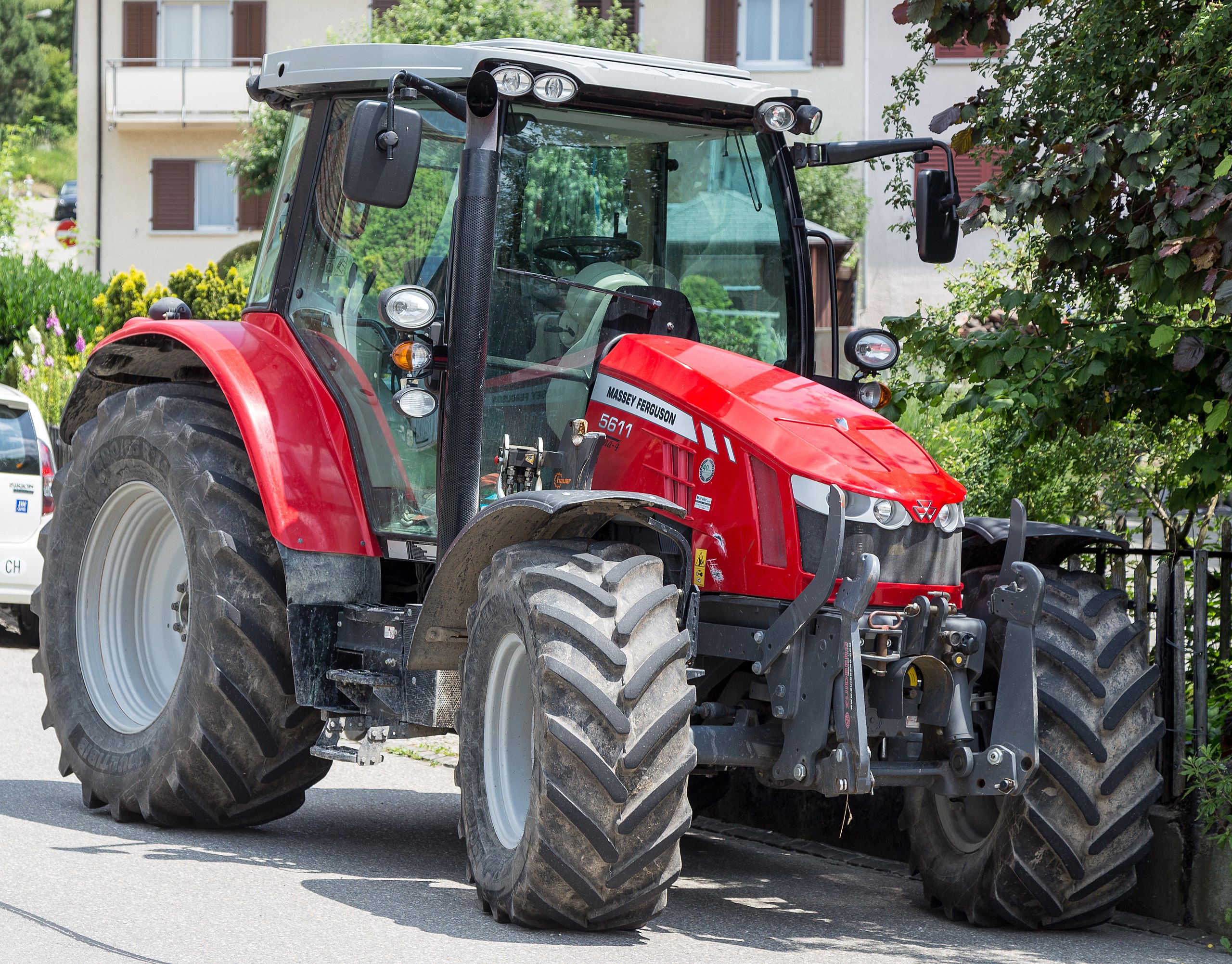

Massey Ferguson 5611

Name: Massey Ferguson 5611
Brand: Massey Ferguson

Massey Ferguson 5611 — Utility tractor · 80 hp. Reference specifications; pending source verification.

The Massey Ferguson 5611 is a tractor with an 80 hp rating, placing it centrally within its class in terms of power output. It was produced from 2013 to 2016, featuring a 4-cylinder turbocharged intercooled diesel liquid-cooled engine. Power is transmitted through four-wheel drive with a hydrostatic transmission, and the listed weight range is 8929 to 10582 pounds. The 5611 is suited for tasks on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Max power

110 hp

Weight

8929 to 10582 pounds

Catalogue coverage

Variants represented

Richest spec table

115 rows

Recorded power

80 hp

Recorded weight

4050 kg

Transmissions

16-speed four-speed power shift with power shuttle

Production years

2013-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Original price was $84,950 in 2014Reference

Two- or four-wheel driveReference

Final drivesinternal planetaryReference

Differential lockfull locking electro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakespneumatic (optional)Reference

Trailer brakeshydraulic (optional)Reference

Cab standard with air-conditioning. Optional mechanical cab suspension. AGCOMMAND (optional)Reference

Engine

AGCO Power 4.4L 4-cyl dieselReference

Fuel tank185.5 LReference

Exhaust fluid (DEF)25.0 LReference

Engine78.3 kWReference

AGCO Power 44 AWIReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power78.3 kWReference

Maximum Power82.0 kWReference

Fuel systemhigh pressure common rail direct injectionReference

Air cleanerdual stage dryReference

Pre-heatingintake heaterReference

Rated RPM2200Reference

Idle RPM850-2402Reference

Torque634.6 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceInterim Tier IV selective catalytic reductionReference

Engine torque at rated speed212.3 kgReference

Bore and stroke4.25x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed four-speed power shift with power shuttleReference

32-speed creeperReference

TransmissionDyna-4Reference

Typefour-speed power shift with power shuttleReference

Gears16 forward and reverseReference

Clutchwet discReference

Oil capacity73.8 LReference

TypecreeperReference

Gears32 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 - 16 F and 16R | Creeper - 32 F and 32RReference

Wheel Drive2 WD | 4WDReference

Rear Axle Drive Typeinternal planetaryReference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

Typeopen centerReference

Typeclosed center pressure flow compensated optional (PFC)Reference

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow56.8 lpmReference

Pump flow98.4 lpmReference

Rear TypeIIReference

Controlelectronic lower link draft controlReference

Rear lift (at ends)5193 kgReference

Rear lift (at 24"/610mm)3889 kgReference

Front HitchII (optional)Reference

Front lift (at ends)2494 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Rear PTO Type540/540E/1000 (1.375)Reference

Engine RPM540@1920Reference

Engine RPM540E@1964Reference

Engine RPM1000@1560Reference

Dimensions

Wheelbase255 cmReference

Weight8929 to 10582 poundsReference

Rear tire16.9R38Reference

Ag rear16.9R38Reference

Height (cab)283 cmReference

Weight4050 kgReference

Weight4799 kgReference

Flange rear axleReference

Massey Ferguson 5611 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps175 (optional)Reference

Battery volts12Reference

Attachment overview

Massey Ferguson 941 loaderReference

Massey Ferguson 946 loaderReference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

SCV controlJoystickReference

Rear Axle TypeFlangeReference

Capacities

Capacity269 ciReference

Diesel exhaust fluid (DEF) tank25 LReference

Hydraulics

Capacity Valves16 valvesReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 valvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity5,193.6 kgReference

Rear Hitch Sensing Typeelectronic lower link draft controlReference

Front Hitch category (SAE designation)Category II (optional)Reference

Power

Max Power110 hpReference

Rated Power105 hpReference

PTO

PTO Power80 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540/540E rpmReference

Engine Speed on Rear PTO speed1,000@1,560 rpmReference

Steering & brakes

BrakesHydraulic Wet Disk BrakesReference

Steering typeHydrostatic PowerReference

Dimensions & weight

Height Over Cab283.2 cmReference

Overall weight4,799.9 kgReference

Wheels & tyres

Rear Wheel Type16.9R38Reference

Operator station

Cab AvailabilityCab standard with air-conditioning.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
