Tractor · 2017Unverified

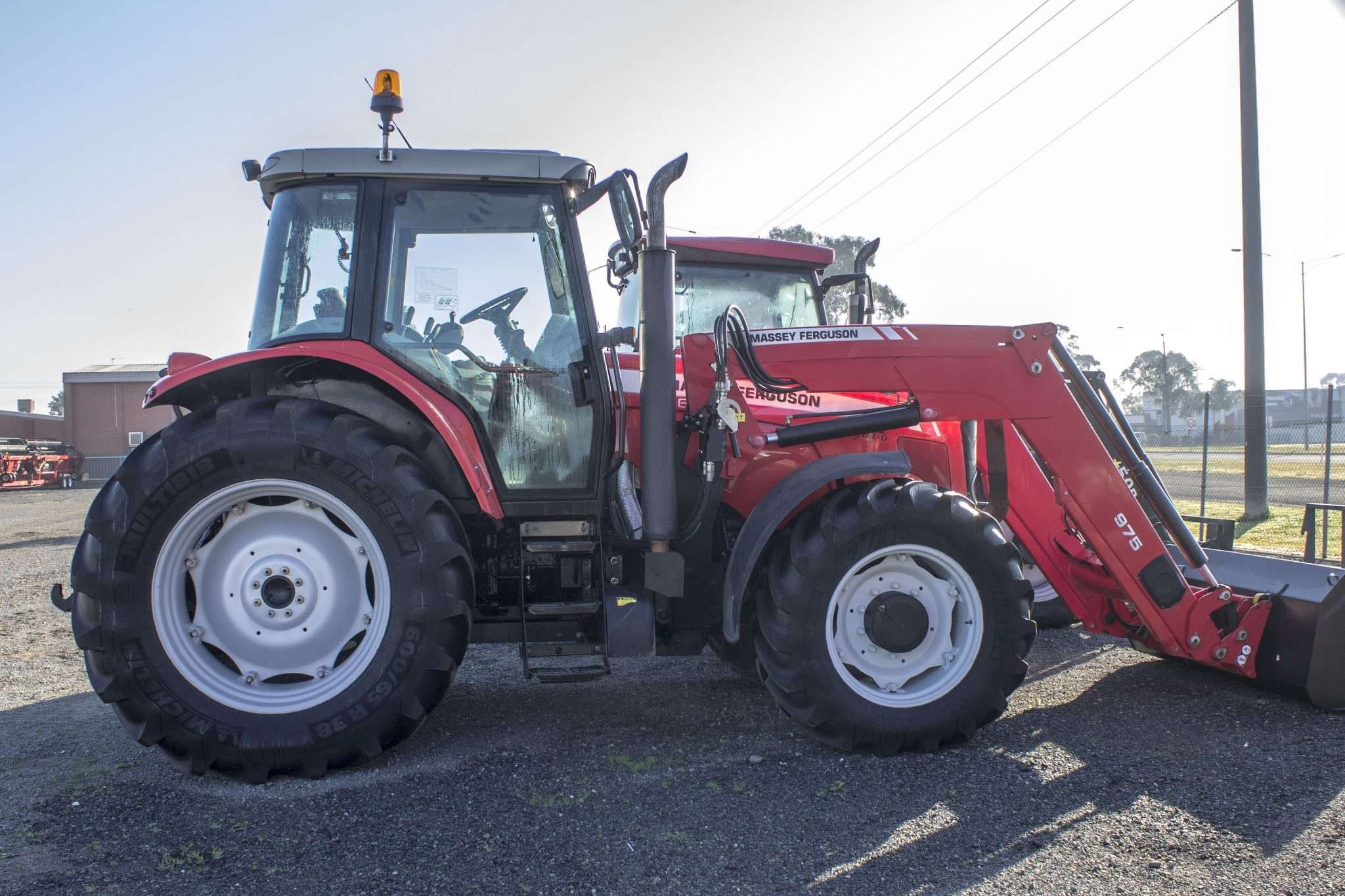

Massey Ferguson 5708
Massey Ferguson 5708 — Utility tractor · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
4070 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank160.1 LReference
Exhaust fluid (DEF)18.2 LReference
Engine63.4 kWReference
AGCO Power 33AWFCReference
turbocharged intercooled dieselReference
3-cylinder 12-valveReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power63.4 kWReference
Rated RPM2000Reference
Torque347.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power-shift gears in four ranges with power shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Valves2 or 3Reference
Pump flow57.9 lpmReference
Pump flow99.9 lpmReference
Steering flow32.2 lpmReference
Rear TypeIIReference
Rear lift4300 kgReference
Rear PTOindependentReference
Clutch540:2000Reference
Clutch540E:1550Reference
Clutch1000:2000Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase232 cmReference
Weight4070 kgReference
Length419 cmReference
Width182 cmReference
Height (cab)276 cmReference
Ground clearance51 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
