Tractor · 2020Unverified

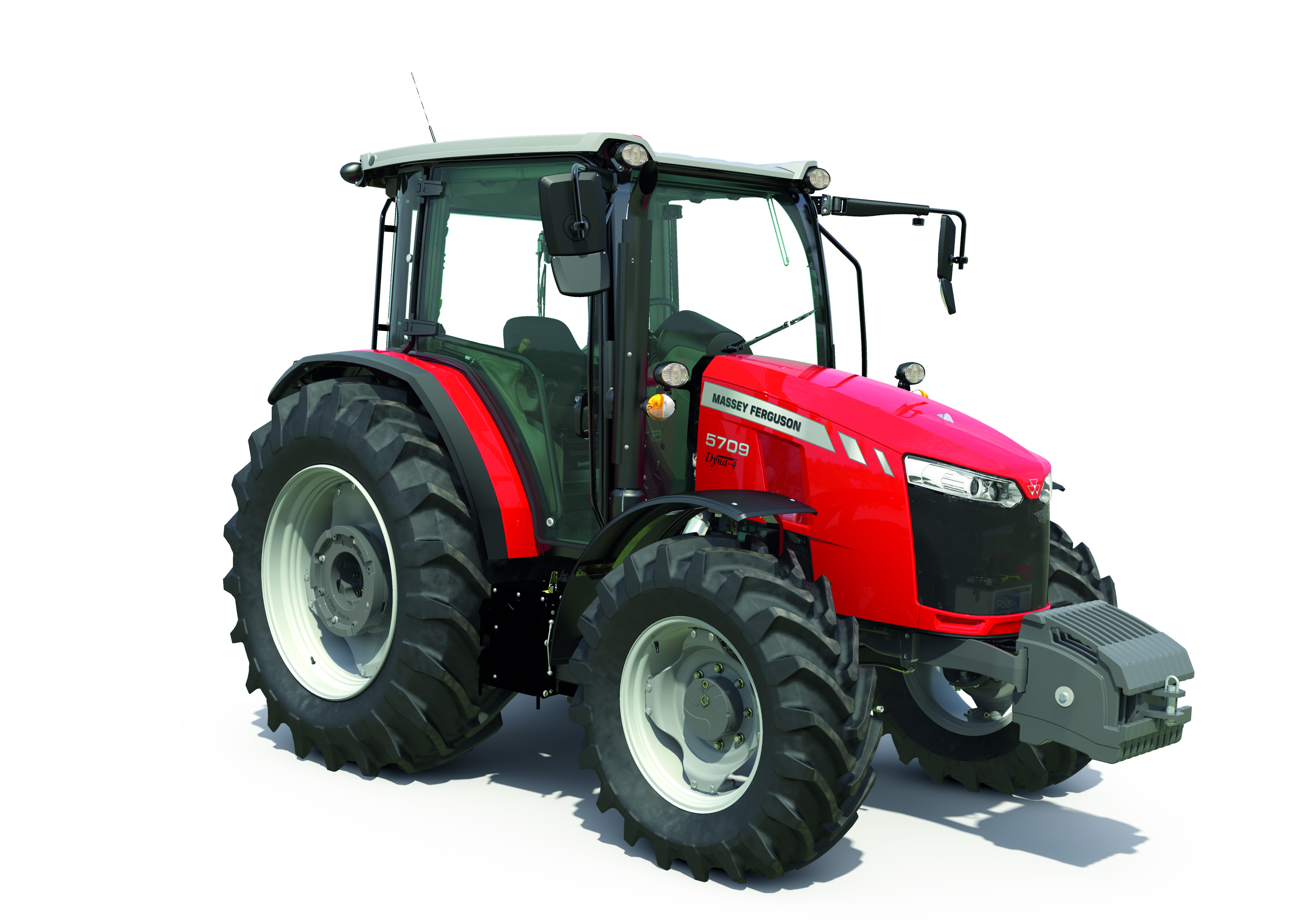

Massey Ferguson 5709M
Massey Ferguson 5709M — Utility tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4399 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with available air-conditioning.Reference
Variants
5709MbasicReference
5709SdeluxeReference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Fuel tank160.1 LReference
Exhaust fluid (DEF)18.2 LReference
Engine67.1 kWReference
Engine (max)70.8 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Power67.1 kWReference
Maximum Power70.8 kWReference
Rated RPM2200Reference
Torque405.4 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift speeds in four ranges with power shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Valves2 or 3Reference
Pump flow57.9 lpmReference
Pump flow99.9 lpmReference
Steering flow32.9 lpmReference
Rear TypeIIReference
Rear lift4300 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2000Reference
Engine RPM540E@1550Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase243 cmReference
Weight4399 kgReference
Length430 cmReference
Width179 cmReference
Height (cab)268 cmReference
Ground clearance51 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
