Tractor · 2017Unverified

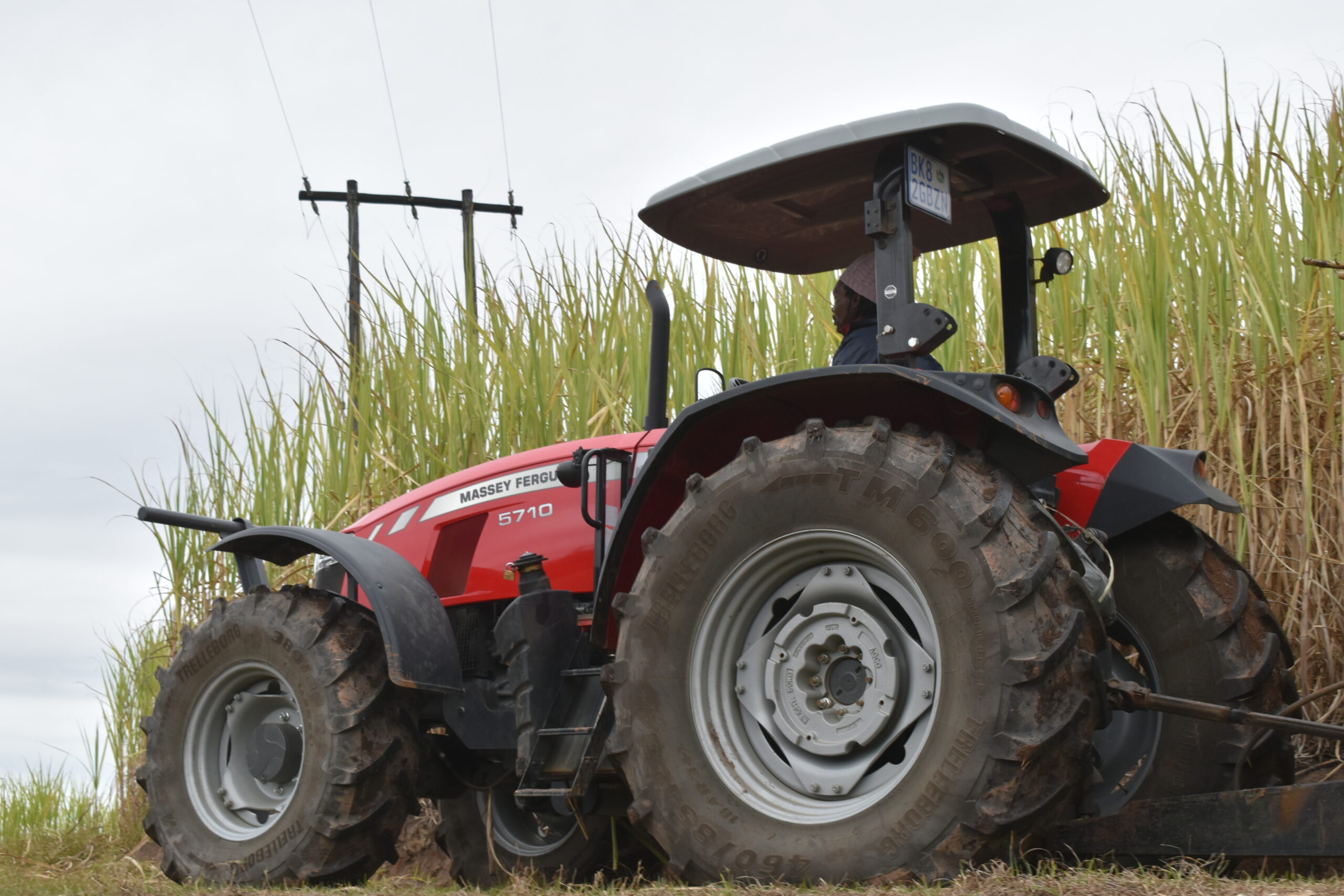

Massey Ferguson 5710
Massey Ferguson 5710 — Utility tractor · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
8845 to 9661 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Original price was $62,784 in 2019Reference
Drive4x4 2WDReference
Drive4x4 MFWD 4WDReference
Final drivesinternal planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Fuel tank145.0 LReference
Engine70.8 kWReference
Engine (max)74.6 kWReference
AGCO PowerReference
intercooled turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power70.8 kWReference
Maximum Power74.6 kWReference
Fuel systemhigh-pressure common rail direct injectionReference
Rated RPM2200Reference
Torque556.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
12-speed power shuttleReference
16-speed four-speed power shiftReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Typepower shuttleReference
Clutchwet discReference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
PTO (claimed)56.7 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow57.2 lpmReference
Pump flow98.0 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3497 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000Reference
Dimensions
Wheelbase243 cmReference
Weight8845 to 9661 poundsReference
Width179 cmReference
Flange rear axleReference
2WD ROPS4012 kgReference
2WD Cab4382 kgReference
4WD ROPS 10011 4WD Cab}4170 kgReference
Massey Ferguson 5710 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 941X loaderReference
Massey Ferguson 946X loaderReference
Massey Ferguson FL3723 loaderReference
Massey Ferguson FL3819 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
