Tractor · 2017Unverified

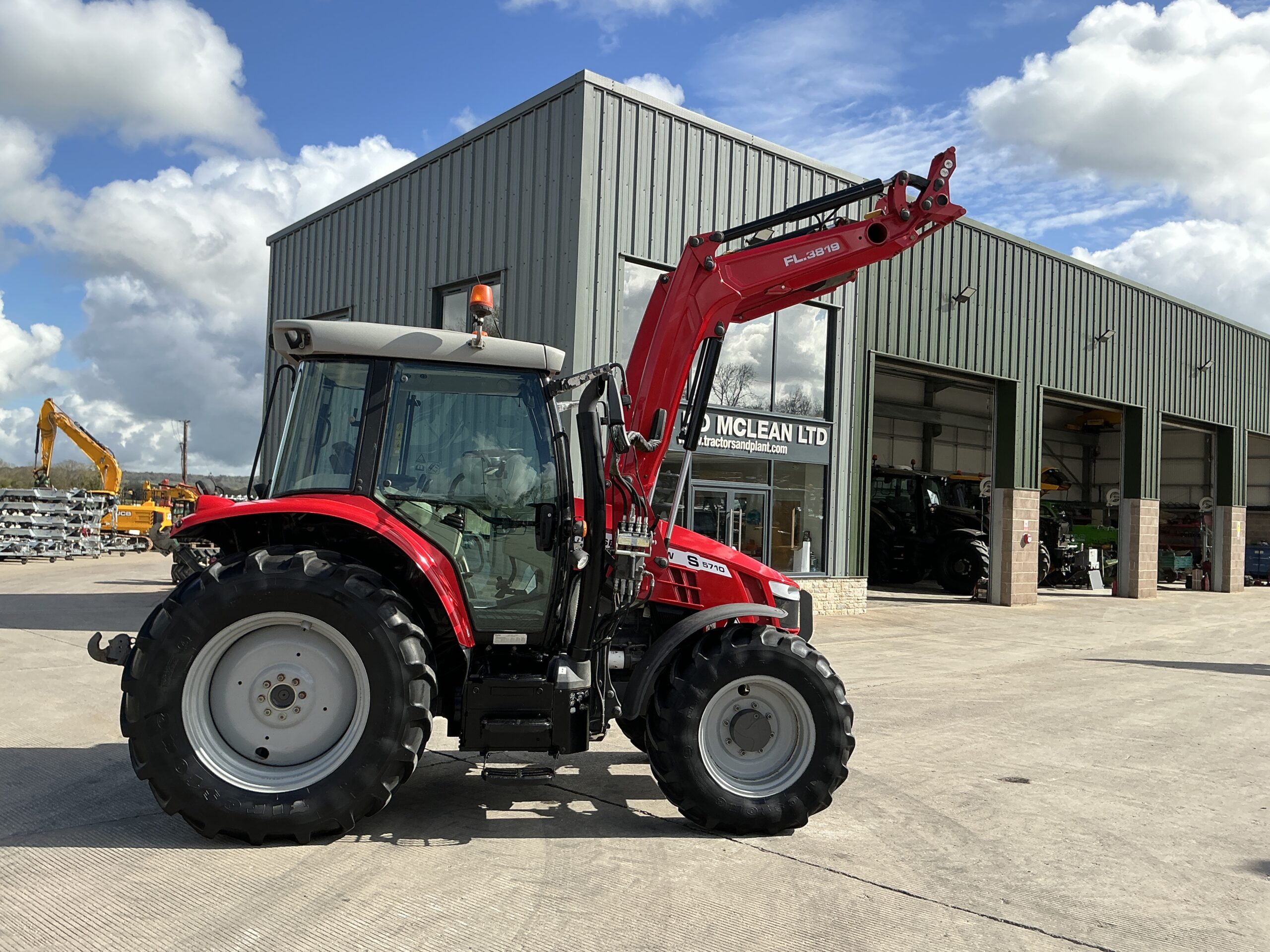

Massey Ferguson 5710S

Name: Massey Ferguson 5710S
Brand: Massey Ferguson

Massey Ferguson 5710S — Utility tractor · 100 hp. Reference specifications; pending source verification.

The Massey Ferguson 5710S is a tractor model with a rated output of 100 hp, positioning it in the middle of its class for power. It was manufactured from 2017 to 2021 and features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine. This engine powers four-wheel drive through a powershift transmission, and the listed weight of the tractor is 4799 kg. The 5710S is suited to tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Weight

4799 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

100 hp

Recorded weight

4799 kg

Transmissions

16-speed four-speed power shift

Production years

2017-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Variants

5710MbasicReference

5710SdeluxeReference

Engine

AGCO Power 4.4L 4-cyl dieselReference

Fuel tank180.2 LReference

Exhaust fluid (DEF)25.0 LReference

Engine70.8 kWReference

Engine (max)74.6 kWReference

AGCO PowerReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IVReference

Power70.8 kWReference

Maximum Power74.6 kWReference

Rated RPM2200Reference

Torque420.4 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed four-speed power shiftReference

24-speed six-speed power shiftReference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Four power shift speeds in four ranges with power shuttle.Reference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Six power shift speeds in four ranges with power shuttle.Reference

PTO & Hydraulics

Typeopen centerReference

Typeclosed centerReference

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow57.9 lpmReference

Pump flow99.9 lpmReference

Pump flow109.8 lpmReference

Steering flow32.2 lpmReference

Rear TypeIII/IIReference

Rear lift5200 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1920Reference

Engine RPM540E@1560Reference

Engine RPM1000@1960Reference

Dimensions

Wheelbase255 cmReference

Weight4799 kgReference

Length435 cmReference

Width201 cmReference

Height (cab)277 cmReference

Max weight8500 kgReference

Ground clearance40 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
