Tractor · 2020Unverified

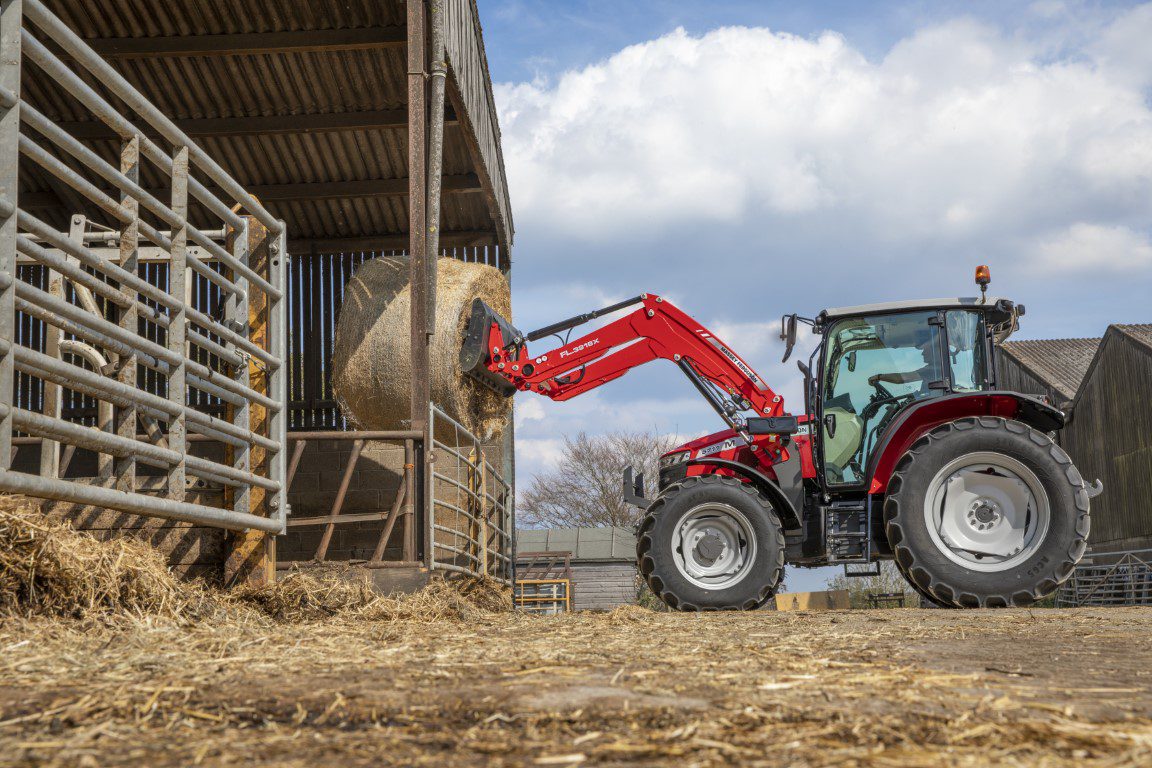

Massey Ferguson 5711M

Name: Massey Ferguson 5711M
Brand: Massey Ferguson

Massey Ferguson 5711M — Utility tractor · 115 hp. Reference specifications; pending source verification.

The Massey Ferguson 5711M is a tractor with a rated power output of 115 hp, categorised within its class as a mid-range model. It was manufactured from 2020 to 2024. Equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, the tractor features four-wheel drive and a powershift transmission. Its operating weight ranges from 8973 to 9700 pounds, making it suitable for areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

115 hp

Weight

8973 to 9700 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

115 hp

Recorded weight

4070 kg

Transmissions

12-speed power shuttle

Production years

2020-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with available air-conditioning.Reference

Variants

5711MbasicReference

5711SdeluxeReference

Engine

AGCO Power 4.4L 4-cyl dieselReference

Power shuttle Fuel tank152.9 LReference

Dyna-4 Fuel tank160.1 LReference

Exhaust fluid (DEF)18.2 LReference

Engine82.0 kWReference

Engine (max)85.8 kWReference

Power shuttle Weight4070 kgReference

AGCO PowerReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IVReference

Power82.0 kWReference

Maximum Power85.8 kWReference

Rated RPM2200Reference

Torque459.7 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed power shuttleReference

16-speed four-speed power shiftReference

Typepower shuttleReference

Gears12 forward and reverseReference

Six synchronized gears in two ranges with power shuttle.Reference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Four power shift speeds in four ranges with power shuttle.Reference

PTO & Hydraulics

Typeopen centerReference

Pressure200.0 barReference

Valves2 or 3Reference

Pump flow57.9 lpmReference

Pump flow99.9 lpmReference

Steering flow32.9 lpmReference

Rear TypeIIReference

Rear lift4300 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2000Reference

Engine RPM540E@1550Reference

Engine RPM1000@2000Reference

Dimensions

Wheelbase243 cmReference

Weight8973 to 9700 poundsReference

Length430 cmReference

Width179 cmReference

Height (cab)268 cmReference

Dyna-4 Weight4399 kgReference

Ground clearance51 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
