Tractor · 2016Unverified

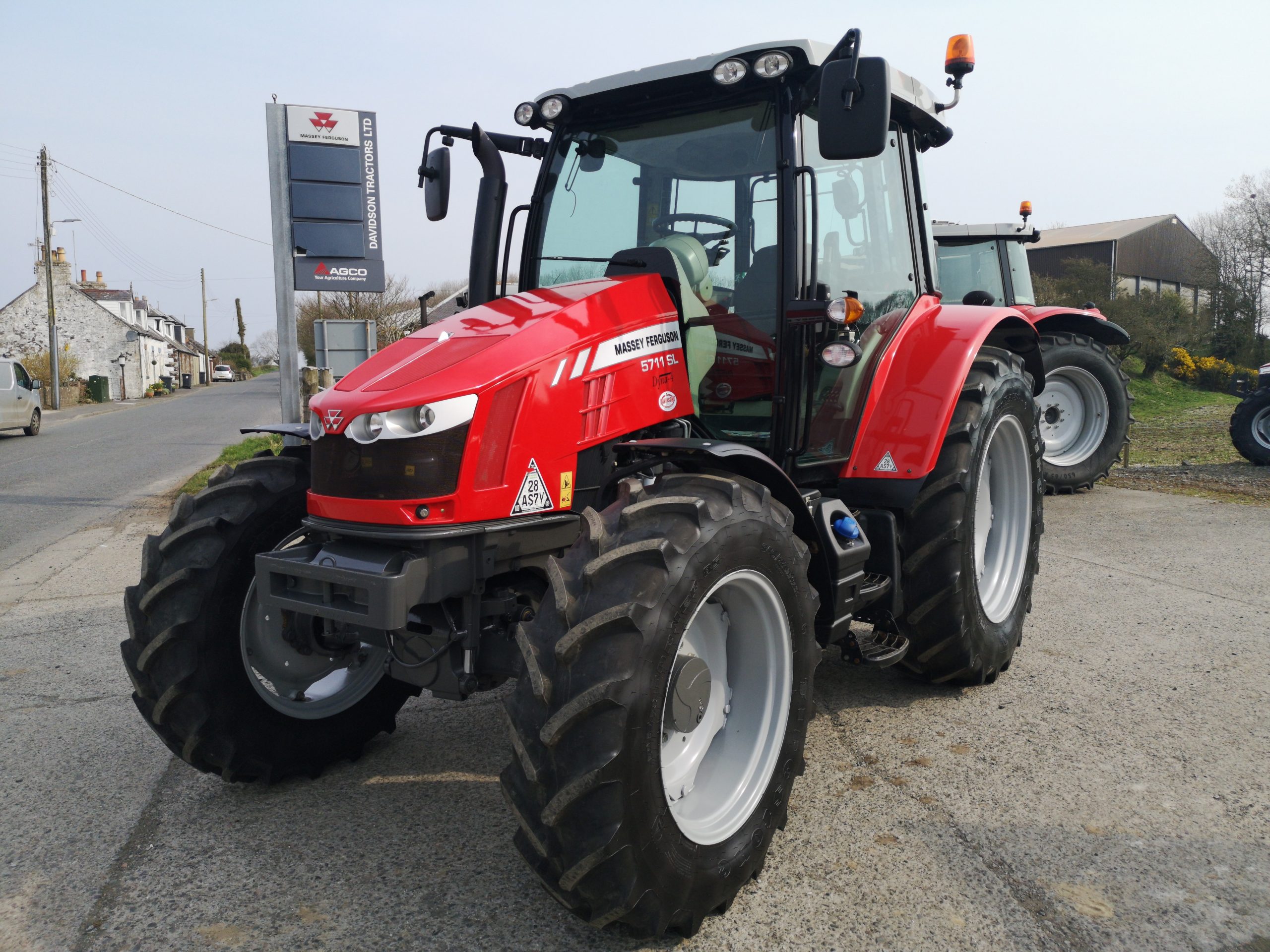

Massey Ferguson 5711SL

Name: Massey Ferguson 5711SL
Brand: Massey Ferguson

Massey Ferguson 5711SL — Utility tractor · 110 hp. Reference specifications; pending source verification.

The Massey Ferguson 5711SL is a tractor model with a rated power of 110 hp, positioned in the mid-range of its class. It was manufactured between 2016 and 2018. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its listed operating weight ranges from 8929 to 10582 pounds, making it suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Max power

110 hp

Weight

8929 to 10582 pounds

Catalogue coverage

Variants represented

Richest spec table

125 rows

Recorded power

110 hp

Transmissions

16-speed four-speed power shift

Production years

2016-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Built in Beauvais, FranceReference

Original price was $95,527 in 2018Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning. Auto-Guide 3000 ((Optional))Reference

Engine

AGCO Power 4.4L 4-cyl dieselReference

Fuel tank179.8 LReference

Exhaust fluid (DEF)25.0 LReference

Engine78.3 kWReference

Engine (max)82.0 kWReference

AGCO PowerReference

turbocharged aftercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reductionReference

Power78.3 kWReference

Maximum Power82.0 kWReference

Fuel systemhigh-pressure common railReference

Cooling systemelectronic viscous fanReference

Air cleanerdual element dryReference

Pre-heatingblock heaterReference

Rated RPM2200Reference

Torque467.8 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IV | selective catalytic reductionReference

Engine torque at rated speed156.5 kgReference

Bore and stroke4.25x4.72 inchesReference

Transmission

16-speed four-speed power shiftReference

24-speed six-speed power shiftReference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Clutchwet discReference

Four power-shift gears in four ranges with power shuttle.Reference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Six power-shift gears in four ranges with power shuttle.Reference

Transmission TypePowershiftReference

forward and reverse optionsDyna-4 16-F and 16-R | Dyna-6 24-F and 24-RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)65.6 kWReference

Typeopen centerReference

Typeclosed center load-sensingReference

Pressure200.0 barReference

Valves1 to 4Reference

Pump flow56.8 lpmReference

Pump flow98.4 lpmReference

Pump flow109.8 lpmReference

Rear TypeIII/IIReference

Controllower-link draft sensingReference

Rear lift (at 24"/610mm)3889 kgReference

DrawbarCat. 2Reference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Rear PTO Type540/540E/1000 (1.375)Reference

Dimensions

Wheelbase255 cmReference

Weight8929 to 10582 poundsReference

Front tire380/85R24Reference

Rear tire460/85R34Reference

Standard tires (ag)Front: 380/85R24. Rear: 460/85R34Reference

Length435 cmReference

Width230 cmReference

Height (cab)282 cmReference

Flange rear axleReference

2WD4050 kgReference

4WD4799 kgReference

Massey Ferguson 5711SL attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Classic Charging amps120Reference

Deluxe Charging amps175Reference

Battery CCA600Reference

Battery volts12Reference

Battery Group1Reference

Total cold cranking amps600 CCAReference

Capacities

1WD Max capacity7300 kgReference

4WD Max capacity8500 kgReference

Capacity268.5 ciReference

Diesel exhaust fluid (DEF) tank25 LReference

Speeds

With 18.4R38 rear tires.Reference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controljoystickReference

Drawbar categoryCat. 2Reference

Rear Axle TypeFlangeReference

Country of manufacturerFranceReference

Hydraulics

Capacity Valves16 valvesReference

Hydraulics Typeopen center | closed center load-sensingReference

Maximum operating pressure2,900 psiReference

Remote Valves1 to 4 ValvesReference

Rear Hitch category (SAE designation)Category III/IIReference

Rear Hitch Sensing Typelower-link draft sensingReference

Power

Max Power110 hpReference

Rated Power105 hpReference

PTO

PTO Power88 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typepowerReference

Dimensions & weight

Height Over Cab282.7 cmReference

Overall Length435.6 cmReference

Overall Width230.1 cmReference

Overall weight4,799.9 kgReference

Wheels & tyres

Rear Wheel Type460/85R34Reference

Front Wheel Type380/85R24Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
