Tractor · 2016Unverified

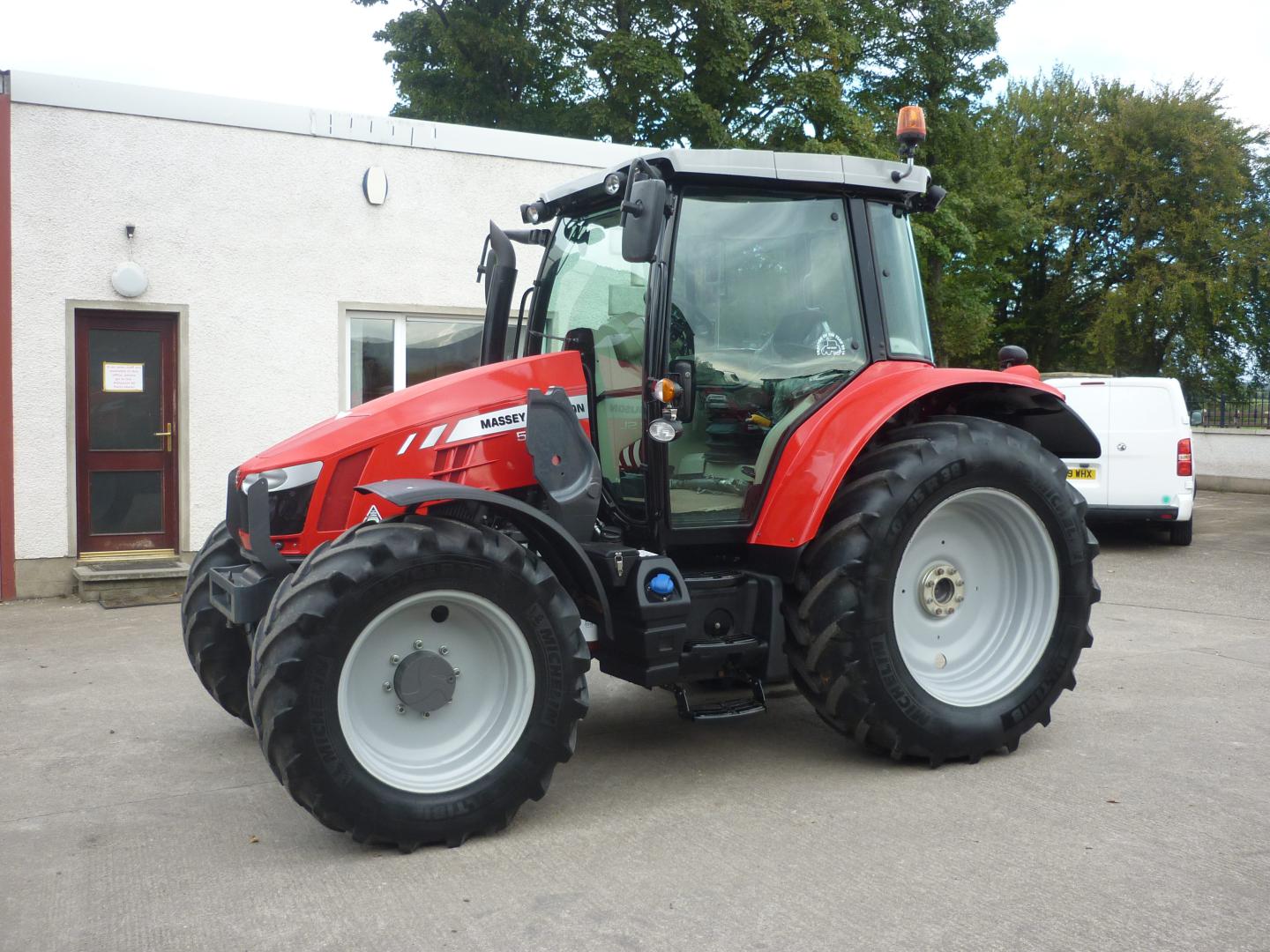

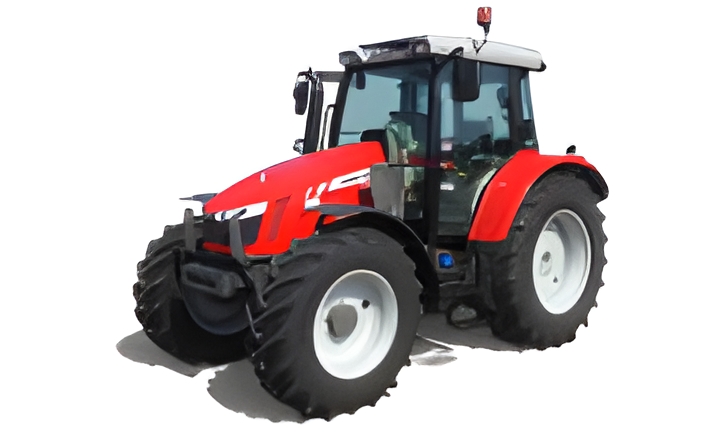

Massey Ferguson 5712SL
Massey Ferguson 5712SL — Utility tractor · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
8929 to 10582 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Built in Beauvais, FranceReference
Original price was $100,073 in 2018Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning. Auto-Guide 3000 ((Optional))Reference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Fuel tank179.8 LReference
Exhaust fluid (DEF)25.0 LReference
Engine85.8 kWReference
Engine (max)89.5 kWReference
AGCO PowerReference
turbocharged aftercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Power85.8 kWReference
Maximum Power89.5 kWReference
Fuel systemhigh-pressure common railReference
Cooling systemelectronic viscous fanReference
Air cleanerdual element dryReference
Pre-heatingblock heaterReference
Rated RPM2200Reference
Torque501.7 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
24-speed six-speed power shiftReference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power-shift gears in four ranges with power shuttle.Reference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Six power-shift gears in four ranges with power shuttle.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
Typeopen centerReference
Typeclosed center load-sensingReference
Pressure200.0 barReference
Valves1 to 4Reference
Pump flow56.8 lpmReference
Pump flow98.4 lpmReference
Pump flow109.8 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)3889 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Rear PTO Type540/540E/1000 (1.375)Reference
Dimensions
Wheelbase255 cmReference
Weight8929 to 10582 poundsReference
Front tire380/85R24Reference
Rear tire460/85R34Reference
Standard tires (ag)Front: 380/85R24. Rear: 460/85R34Reference
Length435 cmReference
Width230 cmReference
Height (cab)282 cmReference
Flange rear axleReference
2WD4050 kgReference
4WD4799 kgReference
Massey Ferguson 5712SL attachments
front-end loaderReference
5712SL Serial Number Location
Serial number plate on the right side of the tractor, on the bottom of the cab frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Classic Charging amps120Reference
Deluxe Charging amps175Reference
Battery CCA600Reference
Battery volts12Reference
Battery Group1Reference
Capacities
1WD Max capacity7300 kgReference
4WD Max capacity8500 kgReference
Speeds
With 18.4R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
