Tractor · 2017Unverified

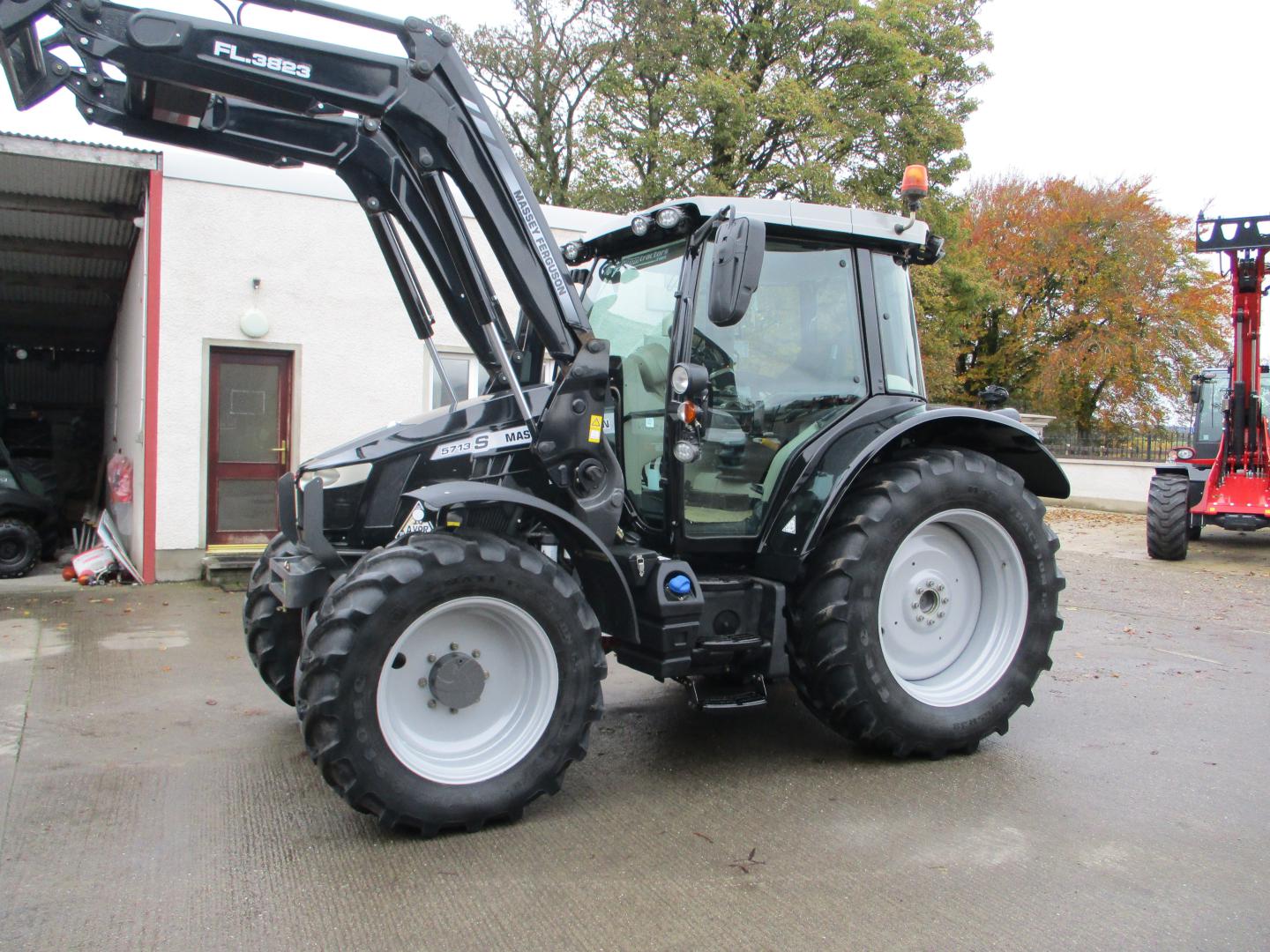

Massey Ferguson 5713S

Massey Ferguson 5713S — Utility tractor · 130 hp. Reference specifications; pending source verification.

The Massey Ferguson 5713S is a tractor rated at 130 hp, positioning it at the higher end of its class. Produced from 2017 to 2021, the 5713S features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight is listed at 4799 kg, making it suitable for operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
130 hp
Weight
4799 kg

Catalogue coverage

Variants represented
2
Richest spec table
65 rows
Recorded power
130 hp
Recorded weight
4799 kg
Transmissions
16-speed four-speed power shift
Production years
2017-2021
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference

Variants

5713MbasicReference
5713SdeluxeReference

Engine

AGCO Power 4.4L 4-cyl dieselReference
Fuel tank180.2 LReference
Exhaust fluid (DEF)25.0 LReference
Engine93.2 kWReference
Engine (max)96.9 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Power93.2 kWReference
Maximum Power96.9 kWReference
Rated RPM2200Reference
Torque545.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference

Transmission

16-speed four-speed power shiftReference
24-speed six-speed power shiftReference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift speeds in four ranges with power shuttle.Reference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Six power shift speeds in four ranges with power shuttle.Reference

PTO & Hydraulics

Typeopen centerReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow57.9 lpmReference
Pump flow99.9 lpmReference
Pump flow109.8 lpmReference
Steering flow32.2 lpmReference
Rear TypeIII/IIReference
Rear lift5200 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1920Reference
Engine RPM540E@1560Reference
Engine RPM1000@1960Reference

Dimensions

Wheelbase255 cmReference
Weight4799 kgReference
Length435 cmReference
Width201 cmReference
Height (cab)277 cmReference
Max weight8500 kgReference
Ground clearance40 cmReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
