Tractor · 2006Unverified

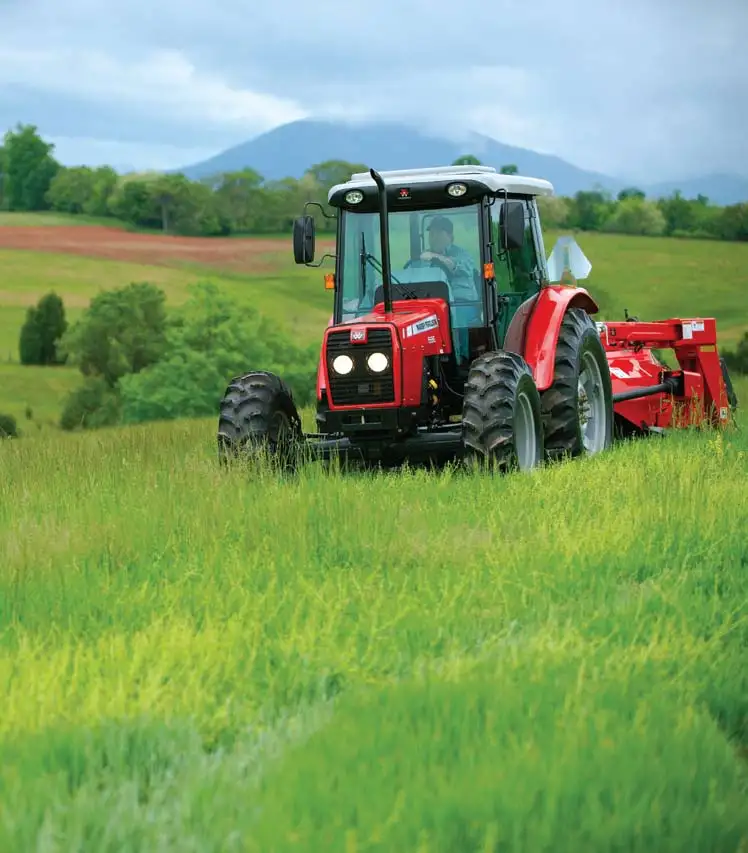

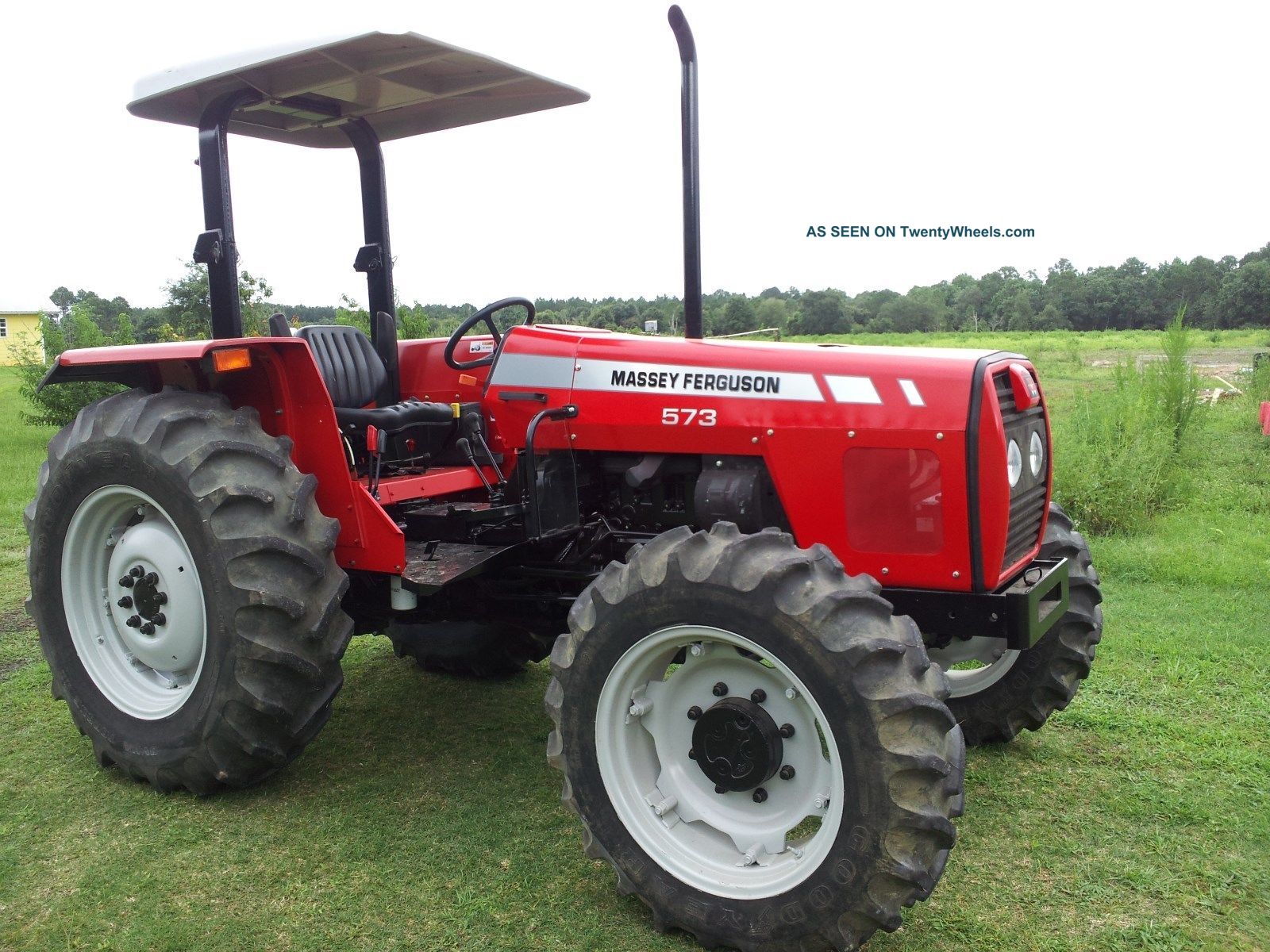

Massey Ferguson 573
Massey Ferguson 573 — 500 Series · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Max power
49.4 kW
Weight
5578 to 7319 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in BrazilReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Independent hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-condtioning.Reference
Variants
573LPlow-profileReference
Engine
Perkins 4.4L 4-cyl dieselReference
ROPS Fuel tank99.9 LReference
Cab Fuel tank104.8 LReference
Engine (gross)53.7 kWReference
Perkins 1104C-44Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power (gross)53.7 kWReference
Air cleanerdual paper elementsReference
Compression19.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power49.4 kWReference
Power at rated engine speed47.9 kWReference
Transmission
8-speedReference
12-speedReference
TransmissiongearReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
TransmissionshuttleReference
Gears8 forward and reverseReference
Transmissionpartial synchReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
PTO (tested)49.4 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow54.9 lpmReference
Total flow85.2 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1790 kgReference
Rear PTOliveReference
Rear PTOindependent (optional, standard with cab)Reference
Rear PTO Type540Reference
Power at rated PTO speed47.9 kWReference
Dimensions
Wheelbase229 cmReference
Weight5578 to 7319 poundsReference
Front tire9.5L-15Reference
Rear tire16.9-30Reference
Ag front9.5L-15Reference
Ag rear16.9-30Reference
Length358 cmReference
Length350 cmReference
Length358 cmReference
Length343 cmReference
Width200 cmReference
Width199 cmReference
Ground clearance37 cmReference
Ground clearance27 cmReference
Shipping2530 kgReference
Shipping2859 kgReference
Shipping2990 kgReference
Shipping3319 kgReference
Operating2726 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Massey Ferguson 573 Height
260 cmReference
266 cmReference
248 cmReference
Test results
Diesel 8-speed shuttle 2WDOctober 31 - November 3, 2005Link: Nebraska Tractor Test 1864 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Fuel use15.5 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
