Tractor · 1976Unverified

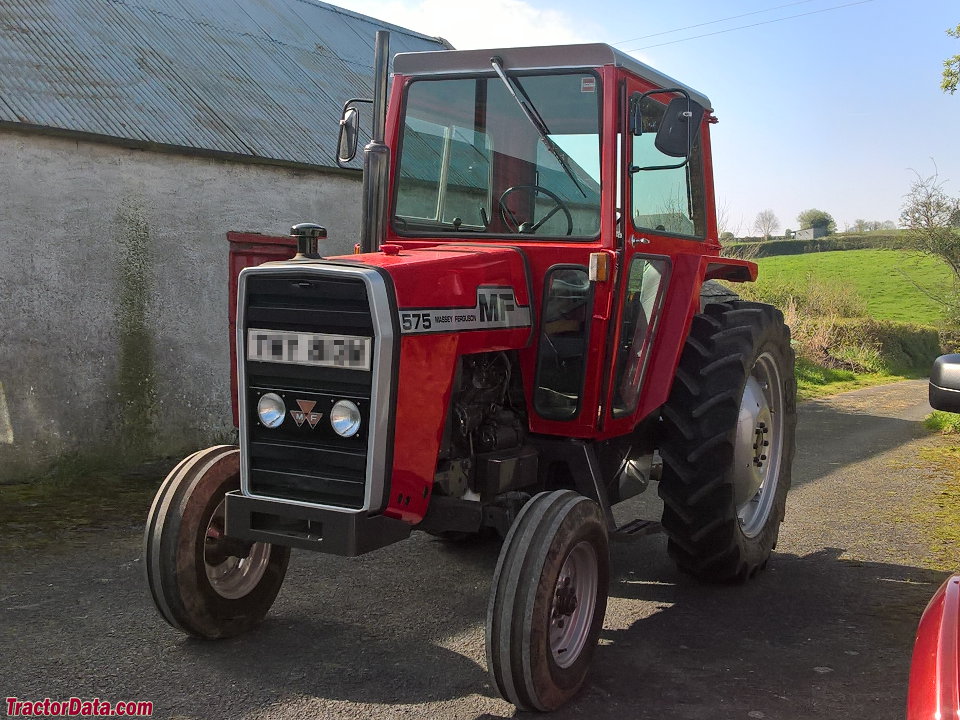

Massey Ferguson 575

Name: Massey Ferguson 575
Brand: Massey Ferguson

Massey Ferguson 575 — 500 Series · 60 hp. Reference specifications; pending source verification.

The Massey Ferguson 575 is a tractor with a rated power output of 60 hp, situating it at the lighter end of its class. It was manufactured from 1976 to 1982. The tractor features a 4-cylinder diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. Its listed operating weight is 3645 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

3645 kg

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

60 hp

Recorded weight

3645 kg

Transmissions

8-speed gear

Production years

1976-1982

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

FactoriesCoventry, EnglandReference

FactoriesLe Plessis-Robinson, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heater. ROPS available.Reference

Engine

Perkins 3.9L 4-cyl dieselReference

Fuel tank98.0 LReference

Engine49.2 kWReference

Perkins A4.236Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 127 mmReference

Power49.2 kWReference

Compression16:1Reference

Rated RPM2000Reference

Torque255.1 NmReference

Torque RPM1250Reference

Starter typeelectricReference

Oil capacity7.1 LReference

Coolant capacity14.2 LReference

Transmission

8-speed gearReference

12-speed two-speed power shiftReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutch305mm dry discReference

Four gears, plus reverse, in high and low ranges.Reference

TransmissionMulti-PowerReference

Typetwo-speed power shiftReference

Gears12 forward and 4 reverseReference

Three gears in low and high ranges with two-speed Multi-Power power shift.Reference

PTO & Hydraulics

PTO (claimed)45.0 kWReference

Valves2 or 3Reference

Pump flow27.3 lpmReference

Pump flow62.5 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)1796 kgReference

Rear PTOliveReference

Rear PTOindependentReference

Clutchmechanical dry disc (live)Reference

Clutchhydraulic (independent)Reference

Rear PTO Type540 (1.375)Reference

Rear PTO Type1000 (1.375)Reference

Engine RPM540@1684Reference

Engine RPM1000@1690Reference

Dimensions

Wheelbase224 cmReference

Weight3645 kgReference

Front tire7.50-18Reference

Rear tire13.6-38Reference

2WD Ag front7.50-18Reference

4WD Ag front11.2-24Reference

Ag rear13.6-38Reference

4WD Ag rear16.9-34Reference

Length368 cmReference

Width207 cmReference

Height (cab)257 cmReference

2WD Weight3645 kgReference

Ground clearance46 cmReference

575 Serial Numbers

1976265001Reference

1977265892Reference

1978267645Reference

1979269282Reference

1980270028Reference

1981271271Reference

1982271595Reference

FAQ: How to read a serial number table.Reference

Speeds

With 16.9x30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
