Tractor · 2006Unverified

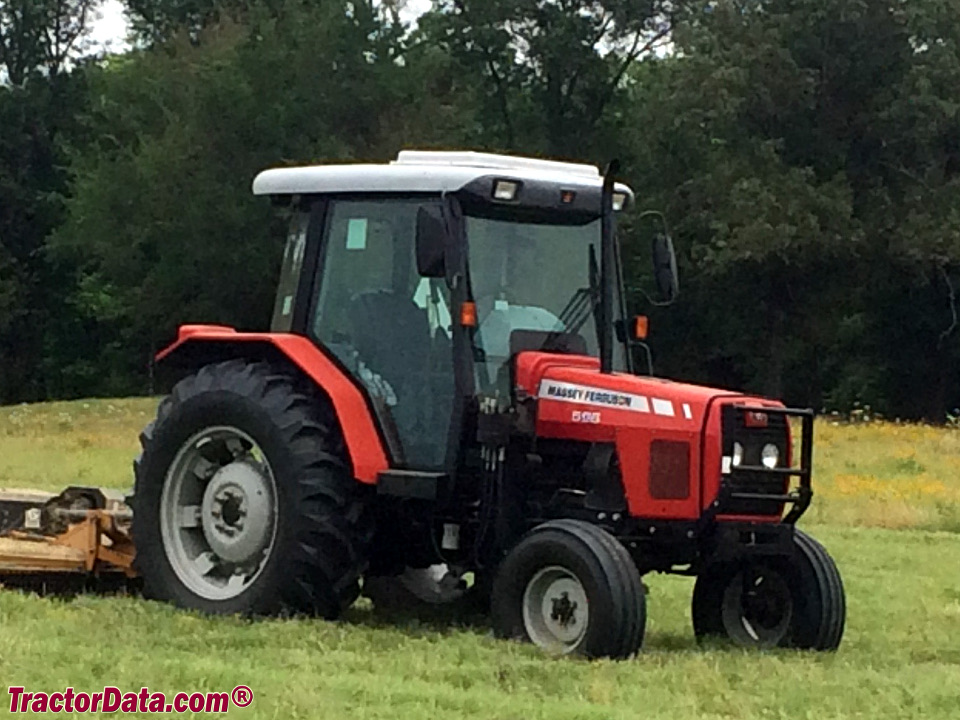

Massey Ferguson 596

Name: Massey Ferguson 596
Brand: Massey Ferguson

Massey Ferguson 596 — 500 Series · 99 hp. Reference specifications; pending source verification.

The Massey Ferguson 596 is a tractor model with a rated power output of 99 hp, situated in the mid-range of its class. Production of the model spanned the period from 2006 to 2010. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with a 12-speed gearbox and four-wheel drive. Its operating weight ranges from 6812 to 8385 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Max power

68.4 kW

Weight

6812 to 8385 pounds

Catalogue coverage

Variants represented

Richest spec table

107 rows

Recorded power

99 hp

Transmissions

12-speed

Production years

2006-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in BrazilReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Variants

596LPlow-profileReference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank104.8 LReference

Engine (gross)73.8 kWReference

Perkins 1104C-44TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

Power (gross)73.8 kWReference

Air cleanerdual paper elementsReference

Compression18.2:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power68.4 kWReference

Power at rated engine speed65.3 kWReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.134x5.00 inchesReference

Compression ratio18.2:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speedReference

Transmissionpartial syncReference

Gears12 forward and 4 reverseReference

Clutch330mm dry discReference

Transmission TypeSync ShuttleReference

forward and reverse optionspartial sync : 12F and 4RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

PTO (tested)68.4 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow64.3 lpmReference

Total flow94.6 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)1904 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed67.4 kWReference

Dimensions

2WD Wheelbase229 cmReference

4WD Wheelbase237 cmReference

Weight6812 to 8385 poundsReference

Front tire10.00-16Reference

2WD Rear tire18.4-30Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-30Reference

4WD Standard tires (ag)Front: 13.6-24. Rear: 18.4-30Reference

Length362 cmReference

Length357 cmReference

Length373 cmReference

Length365 cmReference

Width212 cmReference

Width199 cmReference

Ground clearance35 cmReference

Ground clearance33 cmReference

2WD Front tread138 to 198 cmReference

4WD Front tread167 to 212 cmReference

Rear tread162 to 223 cmReference

2WD ROPS Shipping3089 kgReference

4WD ROPS Shipping3299 kgReference

2WD cab Shipping3430 kgReference

4WD cab Shipping3640 kgReference

4WD ROPS Operating3803 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Massey Ferguson 596 Height

LP257 cmReference

ROPS255 cmReference

Cab270 cmReference

Test results

Diesel 12-speed 4WDJune 22 - 23, 2005Link: Nebraska Tractor Test 1852 fileReference

PTO performanceReference

Fuel use20.4 l/hourReference

Fuel use19.3 l/hourReference

General

Make & ModelMassey FergusonReference

Rollover protective structureTwo-post foldable ROPS.Reference

Country of manufacturerBrazilReference

Capacities

Capacity268.6 ciReference

PTO

PTO Power85 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesIndependent hydraulic wet disc brakesReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)25 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 or 3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Dimensions & weight

Wheelbase238 cmReference

Height Over ROPS255.3 cmReference

Height Over Cab270.5 cmReference

Overall Length373.4 cmReference

Overall Width212.6 cmReference

Overall weight3,299.9 kgReference

Wheels & tyres

Rear Wheel Type2WD 18.4-30Reference

Rear wheel tread range64 to 88.1 inchesReference

Front Wheel Type10.00-16 (2WD) | 13.6-24 (4WD)Reference

Front Wheel tread range66.1 to 83.5 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
