Tractor · 2021Unverified

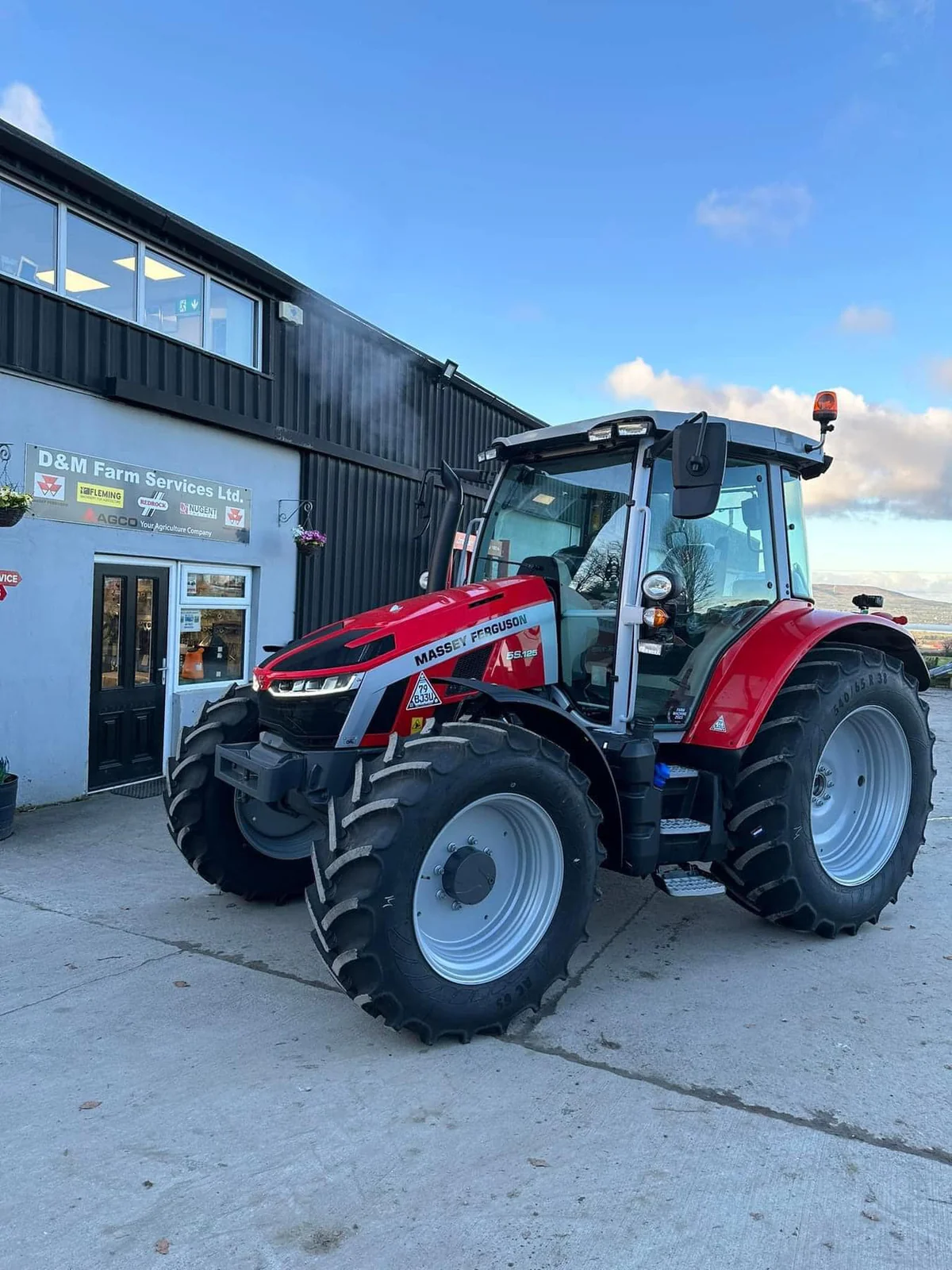

Massey Ferguson 5S.125
Massey Ferguson 5S.125 — 5S Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
4799 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockhydraulic front and rearReference
Power steeringReference
Electro-hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Fuel tank199.8 LReference
Exhaust fluid (DEF)20.1 LReference
Engine93.2 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsStage 5Reference
Power93.2 kWReference
Rated RPM2000Reference
Torque520.7 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
24-speed six-speed power shiftReference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears (A-D) in four ranges (1-4).Reference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Six power shift gears (A-F) in four ranges (1-4).Reference
PTO & Hydraulics
Typeopen centerReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow57.9 lpmReference
Pump flow99.9 lpmReference
Pump flow110.1 lpmReference
Steering flow32.2 lpmReference
Rear TypeIIIReference
Controlposition and draft controlReference
Rear lift (at ends)6000 kgReference
Front lift3000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000Reference
Engine RPM540@1920Reference
Engine RPM540E@1560Reference
Engine RPM1000@1960Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase255 cmReference
Weight4799 kgReference
Length433 cmReference
Width201 cmReference
Height (cab)275 cmReference
Height (cab)266 cmReference
Max weight9500 kgReference
Ground clearance27 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
