Tractor · 1995Unverified

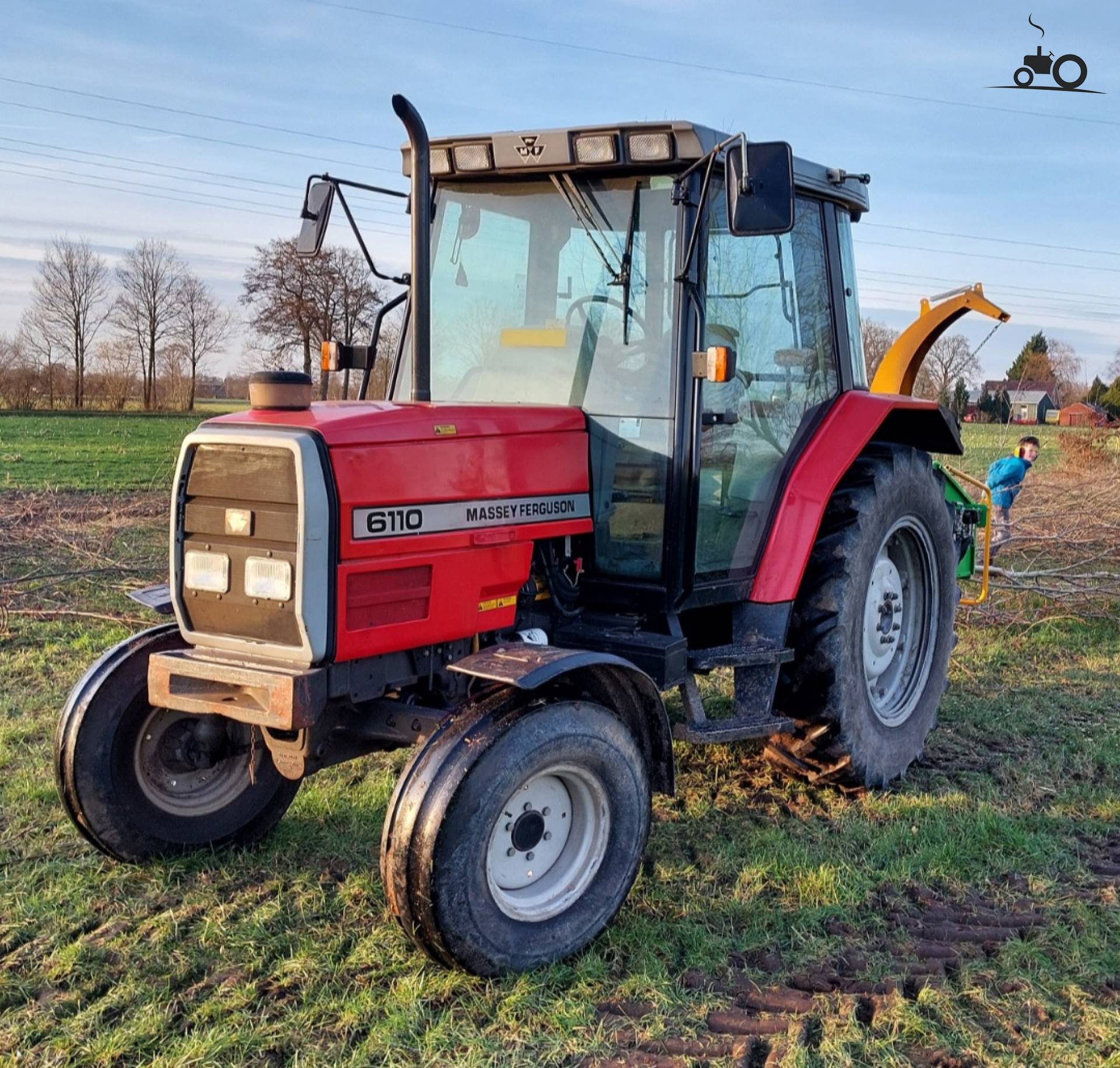

Massey Ferguson 6110
Massey Ferguson 6110 — Utility tractor · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
8200 to 8820 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank129.8 LReference
Engine52.9 kWReference
Perkins 4.41Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power52.9 kWReference
Rated RPM2200Reference
Idle RPM750-2350Reference
Torque275.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference
Transmission
16-speed two-speed power shiftReference
32-speed four-speed power shiftReference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four gears in two ranges with two-speed power shift.Reference
TransmissionDynashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure179.3 barReference
Pump flow50.0 lpmReference
Steering flow28.8 lpmReference
Steering press.17.0 barReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3430 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1980Reference
Engine RPM1000@2000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@2040Reference
Dimensions
2WD Wheelbase237 cmReference
4WD Wheelbase237 cmReference
Weight8200 to 8820 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9R34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9R34Reference
4WD Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
2WD Length399 cmReference
4WD Length406 cmReference
Width257 cmReference
Height (steering wheel)197 cmReference
Height (cab)262 cmReference
2WD Weight3719 kgReference
4WD Weight4000 kgReference
Clearance (drawbar)38 cmReference
Massey Ferguson 6110 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 1048 loaderReference
Massey Ferguson 1048 MSL loaderReference
Speeds
With 16.9-34 rear tires. Reverse speeds are 3% slower than forward. Also available in 40KPH version.Reference
With 13.6R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
