Tractor · 1995Unverified

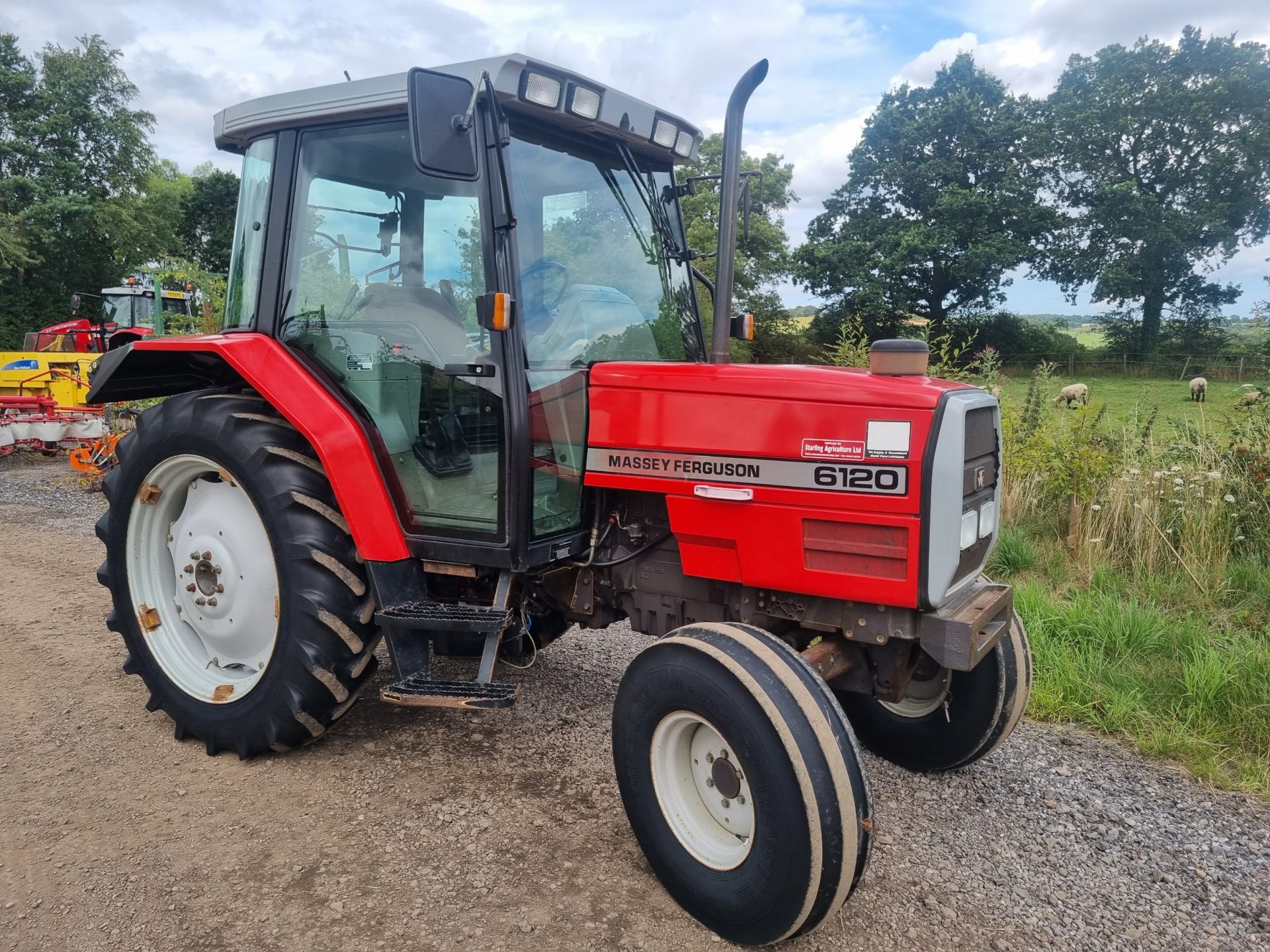

Massey Ferguson 6120
Massey Ferguson 6120 — Utility tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
8360 to 8850 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank129.8 LReference
Engine59.7 kWReference
Perkins 4.41Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power59.7 kWReference
Rated RPM2200Reference
Idle RPM750-2350Reference
Torque284.8 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference
Transmission
16-speed two-speed power shiftReference
32-speed four-speed power shiftReference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four gears in two ranges with two-speed power shift.Reference
TransmissionDynashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure179.3 barReference
Pump flow50.0 lpmReference
Steering flow28.8 lpmReference
Steering press.17.0 barReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3430 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1980Reference
Engine RPM1000@2000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@2040Reference
Dimensions
2WD Wheelbase237 cmReference
4WD Wheelbase237 cmReference
Weight8360 to 8850 poundsReference
Front tire10.00-16Reference
Rear tire16.9R34 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 16.9R34 (2WD)Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R34 (4WD)Reference
2WD Length399 cmReference
4WD Length406 cmReference
Width257 cmReference
Height (steering wheel)197 cmReference
Height (cab)262 cmReference
2WD Weight3792 kgReference
4WD Weight4014 kgReference
Clearance (drawbar)38 cmReference
Massey Ferguson 6120 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 1048 loaderReference
Massey Ferguson 1048 MSL loaderReference
Speeds
With 16.9-34 rear tires. Reverse speeds are 3% slower than forward. Also available in 40KPH version.Reference
With 13.6R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
