Tractor · 1995Unverified

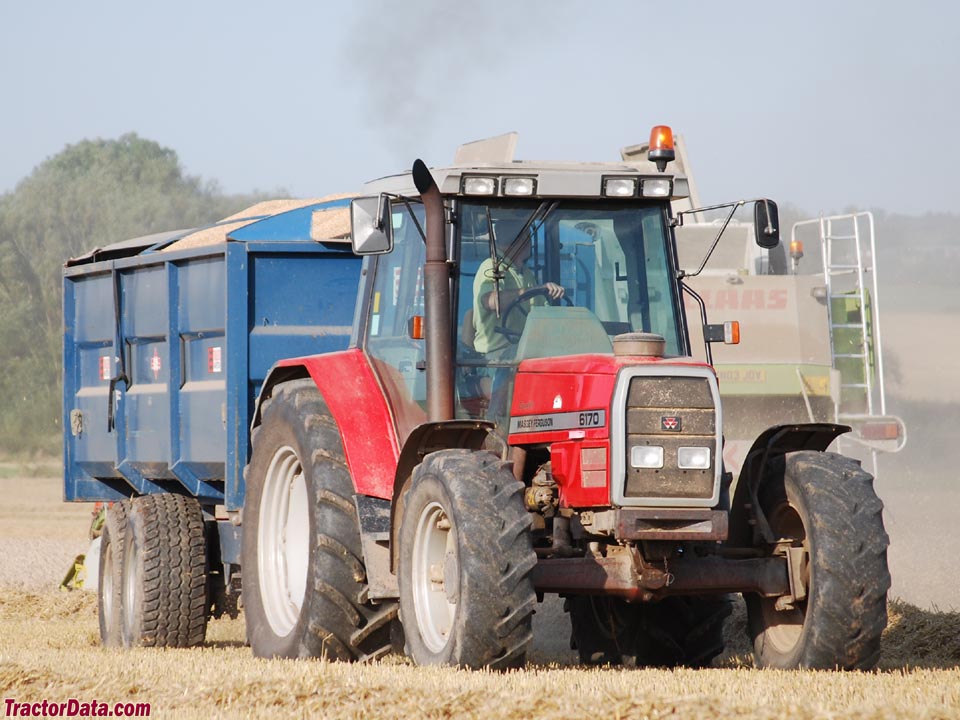

Massey Ferguson 6170

Name: Massey Ferguson 6170
Brand: Massey Ferguson

Massey Ferguson 6170 — Row-Crop tractor · 97 hp. Reference specifications; pending source verification.

The Massey Ferguson 6170 is a tractor model with a rated output of 97 hp, situated near the middle of its class in terms of power. This model was manufactured from 1995 to 1998. It features a 6-cylinder diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight of the 6170 ranges from 11153 to 11385 pounds, and it is designed for use on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

97 hp

Weight

11153 to 11385 pounds

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

97 hp

Recorded weight

5059 kg

Transmissions

16-speed synchronized

Production years

1995-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Original price was $51,300 in 1998Reference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

QuietView cab standard with air-conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Perkins 1006-6Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity25.0 LReference

Transmission

16-speed synchronizedReference

32-speed four-speed power shiftReference

TransmissionSpeedshiftReference

TypesynchronizedReference

Gears16 forward and reverseReference

Clutch230mm wet discReference

Four gears in two ranges with two-speed power shift. Speedshift available with optional creeper range providing 24 total speeds forward and reverse.Reference

TransmissionDynashiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.Reference

PTO & Hydraulics

PTO (claimed)72.3 kWReference

Hydraulic system68.1 LReference

Typeopen centerReference

Capacity68.1 LReference

Pressure202.1 barReference

Valves2 to 4Reference

Pump flow56.4 lpmReference

Rear TypeIIReference

Controlelectronic draft controlReference

Rear lift (at ends)4350 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Engine RPM540@1980Reference

Engine RPM540E@1550Reference

Engine RPM1000@2000Reference

Engine RPM1000E@1550Reference

Capacities

Fuel160.1 LReference

Dimensions

Wheelbase269 cmReference

Weight11153 to 11385 poundsReference

Front tire10.00-16Reference

Rear tire18.4R-38Reference

Ag front10.00-16Reference

Ag rear18.4R-38Reference

Length452 cmReference

Width193 cmReference

Height (cab)276 cmReference

2WD Weight5059 kgReference

4WD Weight5164 kgReference

2WD Front tread153 to 252 cmReference

4WD Front tread156 to 204 cmReference

Rear tread153 to 224 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Batteries2Reference

Battery volts12Reference

Speeds

With 16.9-38 rear tires. Also available in 40 KPH version.Reference

With 16.9R38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
