Tractor · 1999Unverified

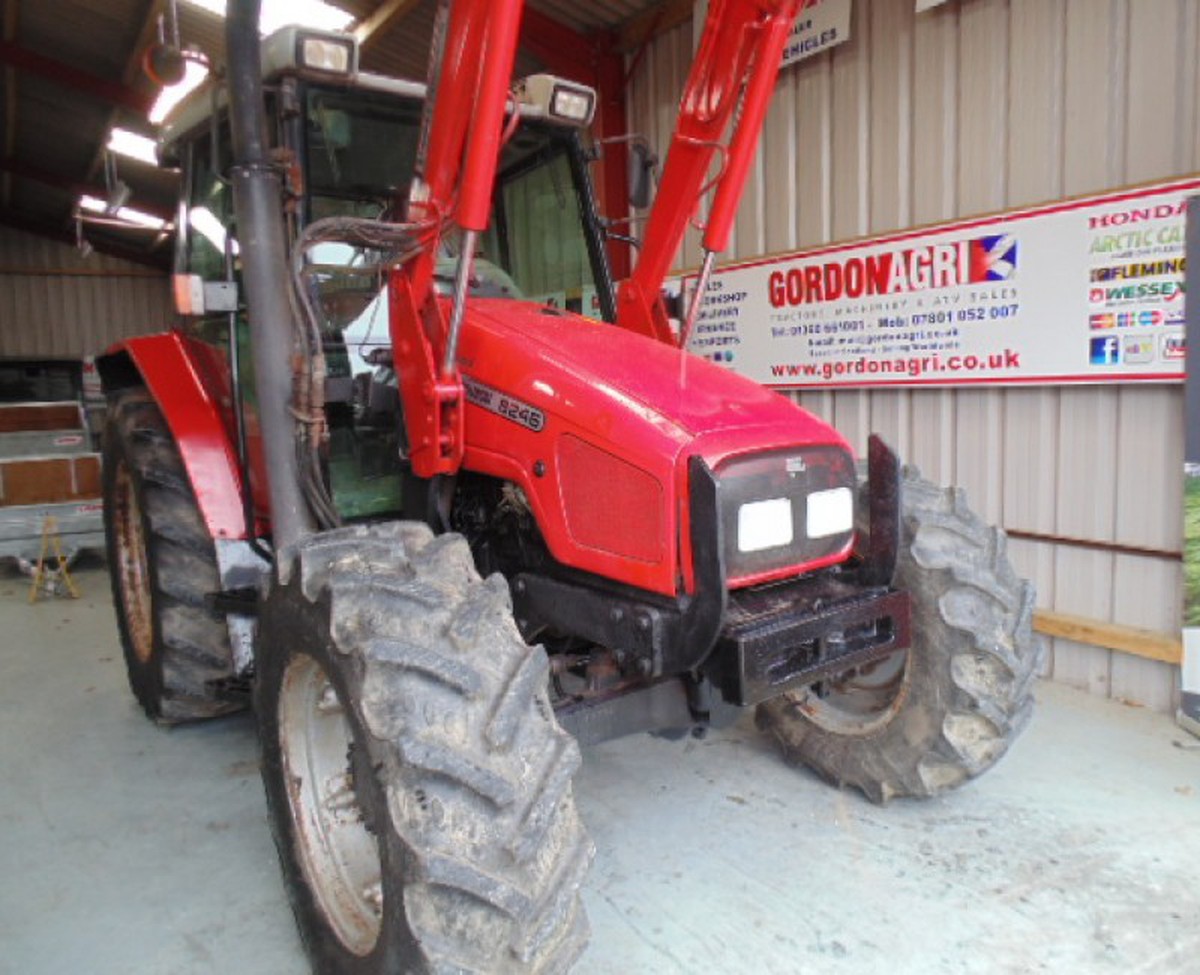

Massey Ferguson 6245
Massey Ferguson 6245 — Row-Crop tractor · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Max power
60.0 kW
Weight
4229 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$60,000Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Independent hydraulic wet discs brakesReference
Cab standard. Two-post ROPS platform available. Fieldstar optionalReference
Engine
Perkins 4.0L 4-cyl dieselReference
Drawbar (tested)50.7 kWReference
PerkinsReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power60.0 kWReference
Power at rated engine speed56.4 kWReference
Max power50.7 kWReference
Transmission
32-speed four-speed power shiftReference
TransmissionDynashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
Four power shift ranges (A-D) in four gears (1-4) with two ranges (low/high).Reference
TransmissionDynaShuttleReference
Optional DynaShuttle transmission adds a left-hand multifunction control lever for shuttle, power shift, and clutch control. Four power shift ranges (A-D) in four gears (1-4) with two ranges (low/high).Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
PTO (tested)60.0 kWReference
Hydraulic system68.1 LReference
Typeopen centerReference
Typeclosed center pressure flow compensated optionalReference
Capacity68.1 LReference
Valves2Reference
Pump flow56.4 lpmReference
Rear TypeIIReference
Rear lift3175 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed59.3 kWReference
Capacities
Fuel132.5 LReference
Dimensions
Wheelbase246 cmReference
Weight4229 kgReference
Front tire13.6R-24Reference
Rear tire16.9R-34Reference
Ag front13.6R-24Reference
Ag rear16.9R-34Reference
Operating weight4229 kgReference
Electrical
GroundnegativeReference
Test results
Diesel 32-speed 4WDApril 1, 1998 - June 1, 1999Link: OCED Tractor Test 1851 fileReference
PTO performanceReference
Fuel use18.5 l/hourReference
Fuel use18.9 l/hourReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Gear 17 used for power test.Reference
Max pull3578 kgReference
Gear 7 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
