Tractor · 1999Unverified

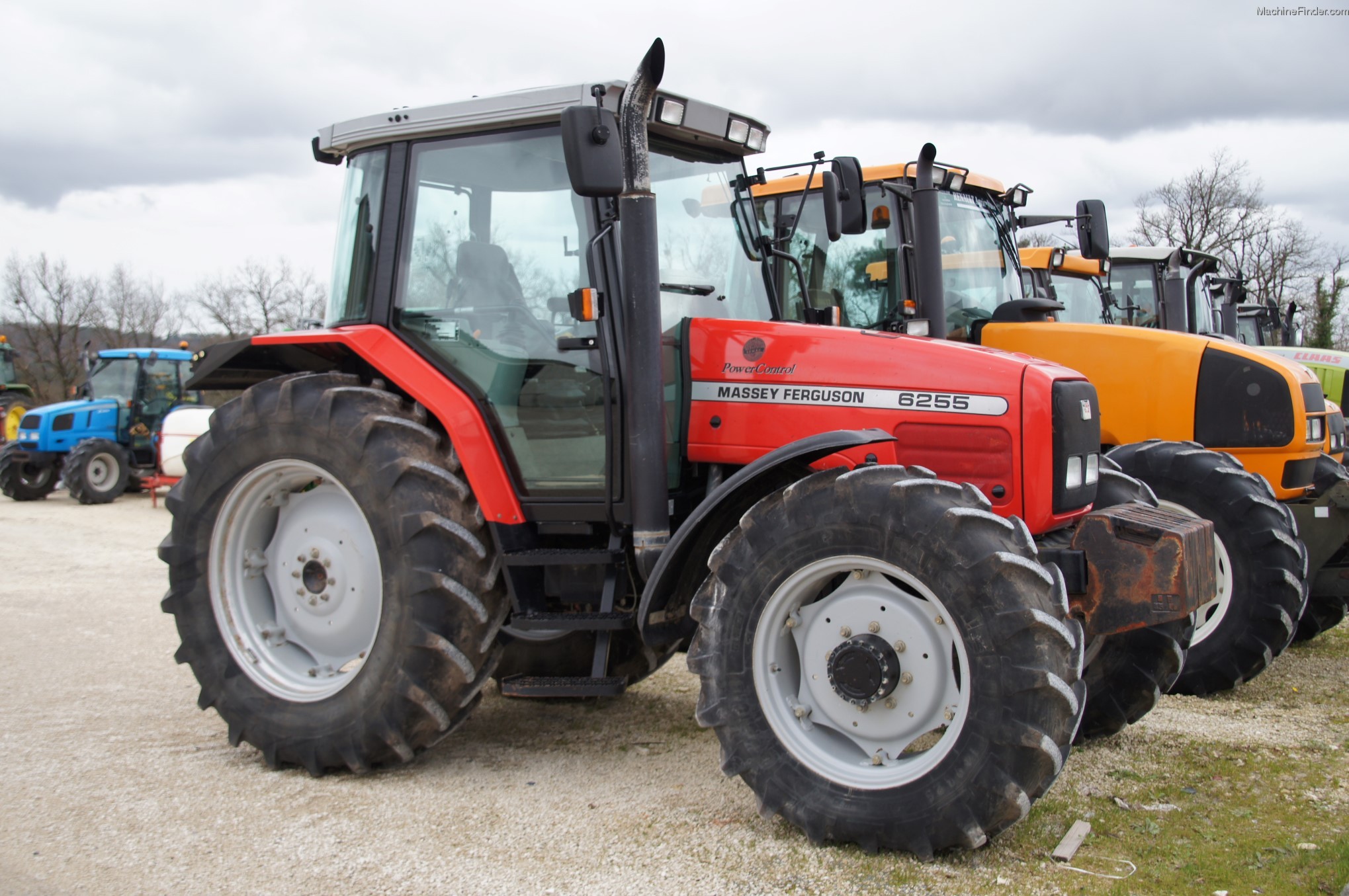

Massey Ferguson 6255

Name: Massey Ferguson 6255
Brand: Massey Ferguson

Massey Ferguson 6255 — Row-Crop tractor · 85 hp. Reference specifications; pending source verification.

The Massey Ferguson 6255 is a tractor with a rated power output of 85 hp, a mid-range figure for its class. It was manufactured between 1999 and 2003. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 4454 kg, with an operational capacity of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

85 hp

Max power

55.3 kW

Weight

4454 kg

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

85 hp

Recorded weight

4454 kg

Transmissions

32-speed four-speed power shift

Production years

1999-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price$52,500Reference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Independent hydraulic wet disc brakesReference

Cab standard. Two-post ROPS platform available. Fieldstar optionalReference

Engine

Perkins 4.0L 4-cyl dieselReference

Drawbar (tested)55.3 kWReference

PerkinsReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Compression17.3:1Reference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity17.0 LReference

Power at rated engine speed63.6 kWReference

Max power55.3 kWReference

Fuel TypeDieselReference

No of Cylinders4-cylinderReference

Rated engine speed2,200Reference

Bore and stroke3.937x5.00 inchesReference

Compression ratio17.3:1Reference

Cooling systemliquid-cooledReference

Transmission

32-speed four-speed power shiftReference

TransmissionDynashiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

Clutchwet discReference

Four power shift ranges (A-D) in four gears (1-4) with two ranges (low/high).Reference

TransmissionDynaShuttleReference

Optional DynaShuttle transmission adds a left-hand multifunction control lever for shuttle, power shift, and clutch control. Four power shift ranges (A-D) in four gears (1-4) with two ranges (low/high).Reference

Transmission TypePowershiftReference

forward and reverse options32 forward and reverseReference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

PTO (tested)63.6 kWReference

Hydraulic system68.1 LReference

Typeopen centerReference

Typeclosed center pressure flow compensatedReference

Capacity68.1 LReference

Valves2Reference

Pump flow56.4 lpmReference

Rear TypeIIReference

Rear lift3175 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed63.6 kWReference

Capacities

Fuel159.0 LReference

Dimensions

Wheelbase255 cmReference

Weight4454 kgReference

Front tire10.00-16Reference

Rear tire16.9R-34Reference

Ag front10.00-16Reference

Ag rear16.9R-34Reference

Operating weight4454 kgReference

Massey Ferguson 6255 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Test results

Diesel 32-speed 4WDDecember 1, 1998 - July 1, 1999Link: OCED Tractor Test 1852 fileReference

PTO performanceReference

Fuel use21.6 l/hourReference

Fuel use20.8 l/hourReference

Drawbar performanceReference

Fuel use20.4 l/hourReference

Gear 19 used for power test.Reference

Max pull4068 kgReference

Gear 8 used for pull test.Reference

General

Make & ModelMassey FergusonReference

Country of manufacturerOption 1: Row-Crop tractor\\nOption 2: Beauvais, FranceReference

PTO

Rear PTO PowerAvailableReference

Steering & brakes

Brakesindependent hydraulic wet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen center, closed center pressure flow compensatedReference

Remote Valves2Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity3,175.1 kgReference

Wheels & tyres

Rear wheel tread range16.9R-34 inchReference

Front Wheel tread range10.00-16Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
