Tractor · 2003Unverified

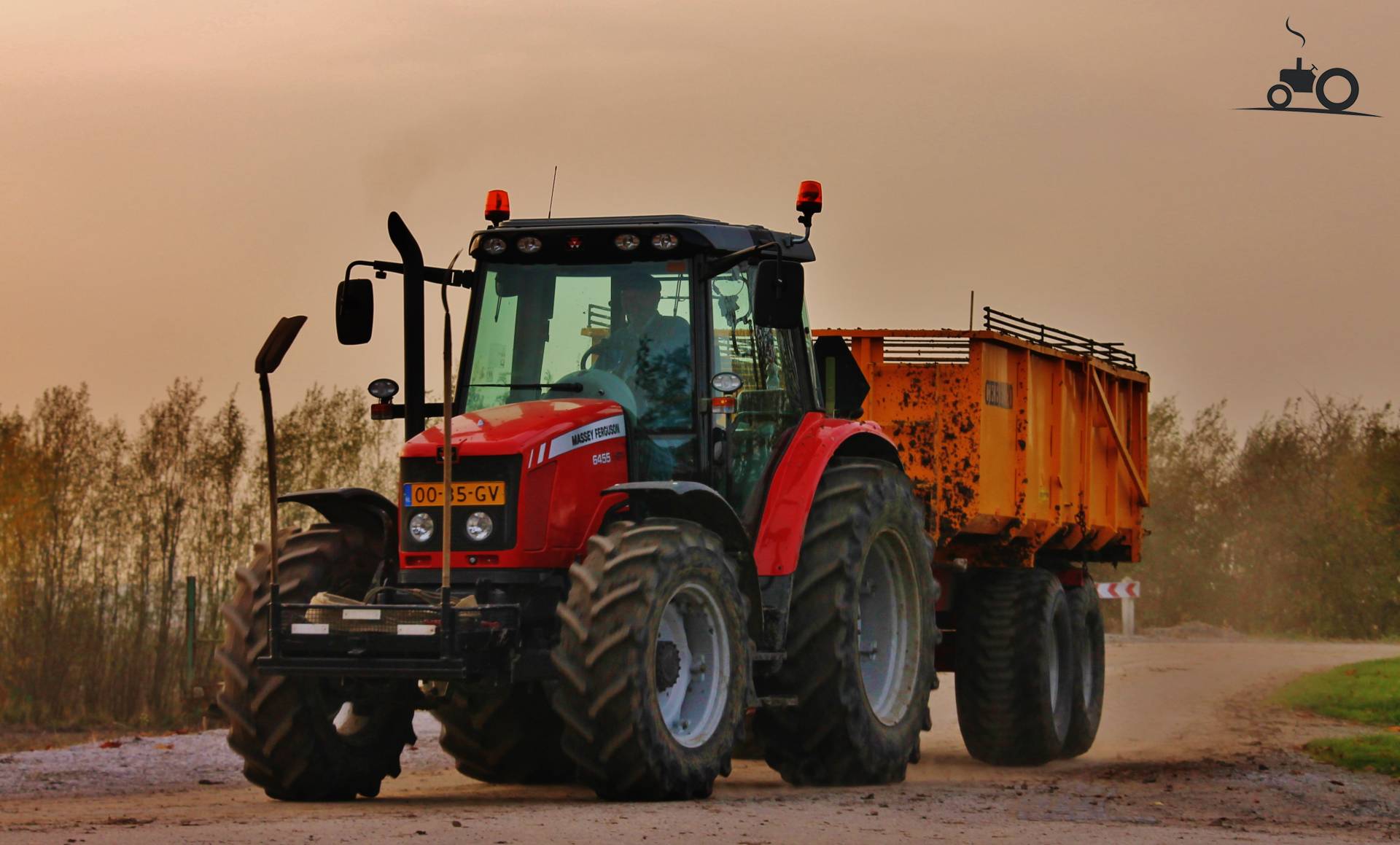

Massey Ferguson 6455

Name: Massey Ferguson 6455
Brand: Massey Ferguson

Massey Ferguson 6455 — Model year 2003-20062007-2013 · 100 hp. Reference specifications; pending source verification.

The Massey Ferguson 6455 is a tractor with a rating of approximately 100 hp, situated in the mid-range of its class. It was manufactured from 2003 to 2013. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. Its listed operating weight is 4220 kg, making it suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

125 hp

Weight

4220 kg

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

100 hp

Recorded weight

4220 kg

Transmissions

24-speed partial power shift

Production years

2003-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank149.9 LReference

Fuel tank199.8 LReference

Engine74.6 kWReference

Perkins 1104C-44TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

Power74.6 kWReference

Torque415.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Emissions complianceTier IIIReference

Engine torque at rated speed175.6 kgReference

Bore and stroke4.252x4.724 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speed partial power shiftReference

32-speed creeperReference

TransmissionDyna-6Reference

Typepartial power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Six power shift gears in four ranges.Reference

TypecreeperReference

Gears32 forward and reverseReference

Transmission TypeGearReference

forward and reverse optionspartial power shift- 24 F and 24 R | creeper - 32 F and 32 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2000Reference

Engine RPM540E@1550Reference

Engine RPM1000@2000Reference

Engine RPM1000E@1550Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Engine RPM1000@2040Reference

Dimensions

4WD Wheelbase246 cmReference

Weight4220 kgReference

Front tire13.6R28Reference

Rear tire16.9R38Reference

Standard tires (ag)Front: 13.6R28. Rear: 16.9R38Reference

Length422 cmReference

Width198 cmReference

Height (cab)281 cmReference

4WD Weight4220 kgReference

Front axleQuadLink suspensionReference

2WD Front tread153 to 232 cmReference

4WD Front tread140 to 189 cmReference

Rear tread150 to 211 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

SCV controlJoystickReference

Front Axle TypeQuadLink suspensionReference

Capacities

Capacity268.5 ciReference

Hydraulics

Capacity Valves16 valvesReference

Hydraulics Typeopen center | closed center load-sensingReference

Maximum operating pressure2,901 psiReference

Remote Valves2 to 4 valvesReference

Power

Max Power125 hpReference

Rated Power105 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Engine Speed on Rear PTO speed1,000E@1,550 RPMReference

Engine Speed on Front PTO speed1,000@2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Dimensions & weight

Wheelbase255 cmReference

Overall Height281.9 cmReference

Height Over Cab278.1 cmReference

Overall Length424.9 cmReference

Overall Width198.1 cmReference

Overall weight4,250.2 kgReference

Wheels & tyres

Rear Wheel Type420/85R38Reference

Rear wheel tread range62.6 to 76.4 inchesReference

Front Wheel Type340/85R28Reference

Front Wheel tread range2WD : 60.6 to 91.7 | 4WD : 65.8 to 75.6 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
