Tractor · 2008Unverified

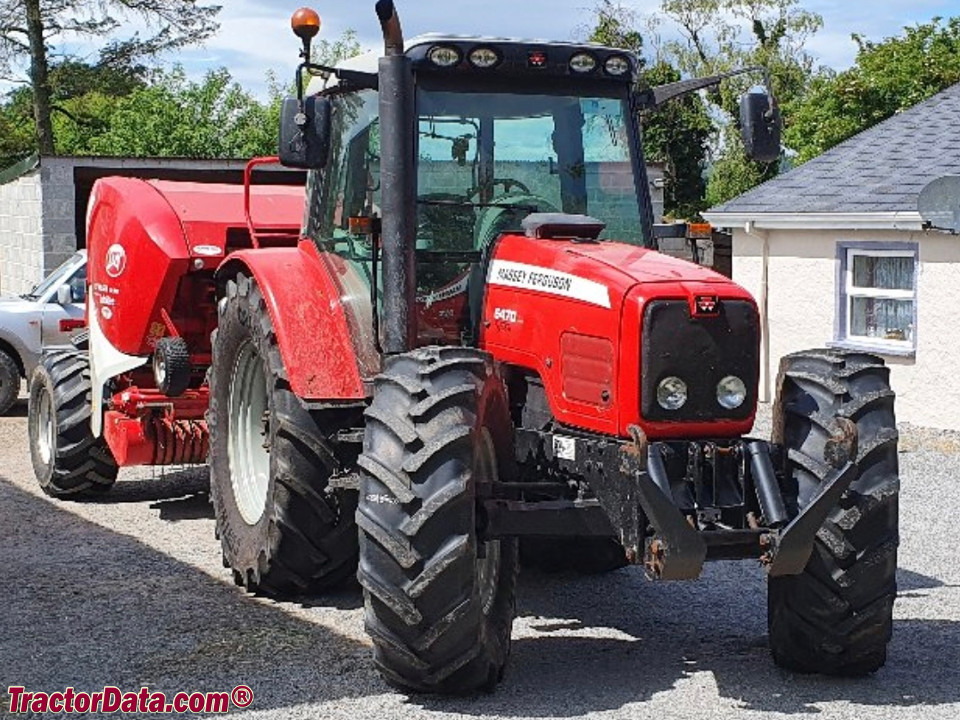

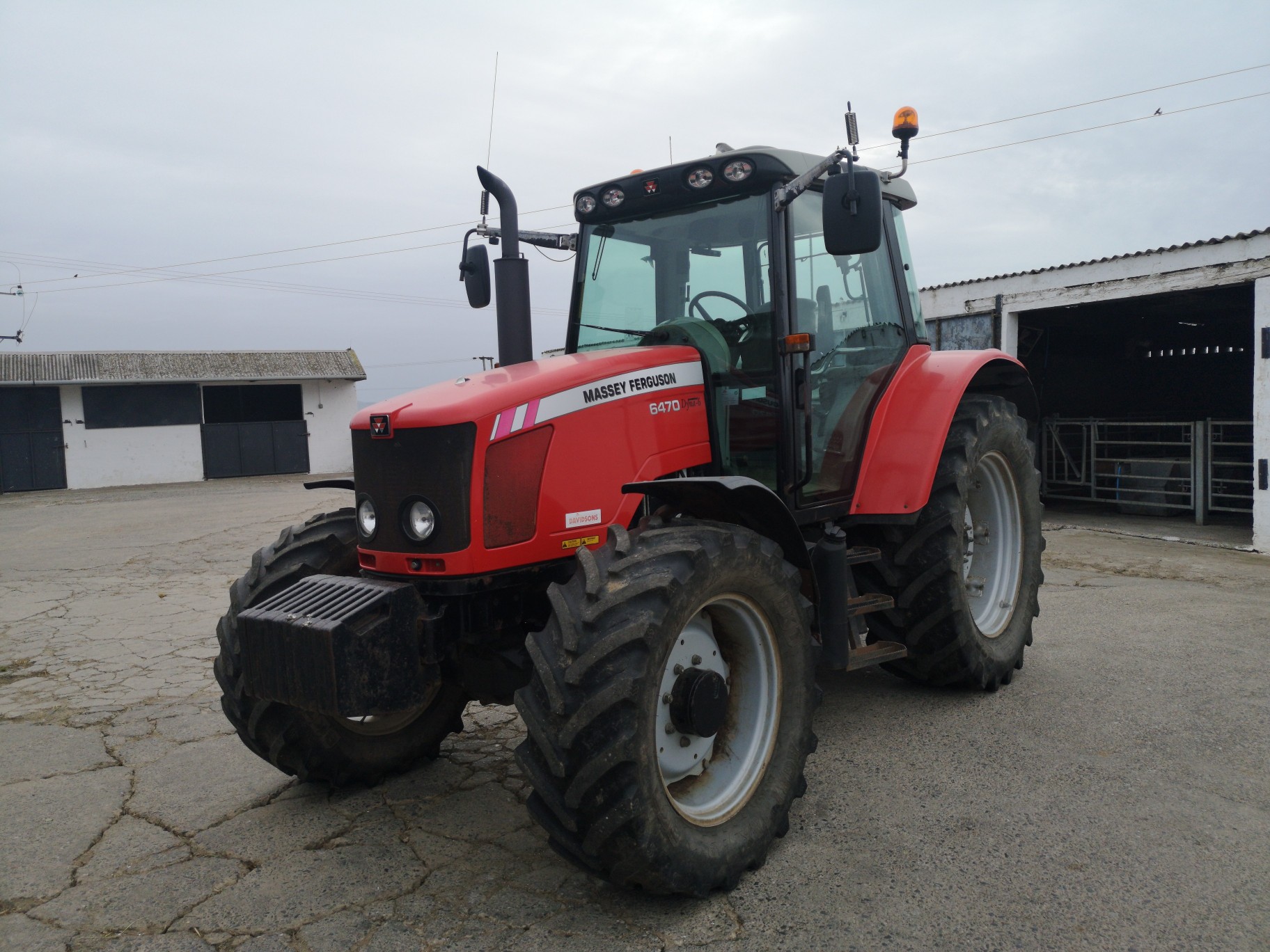

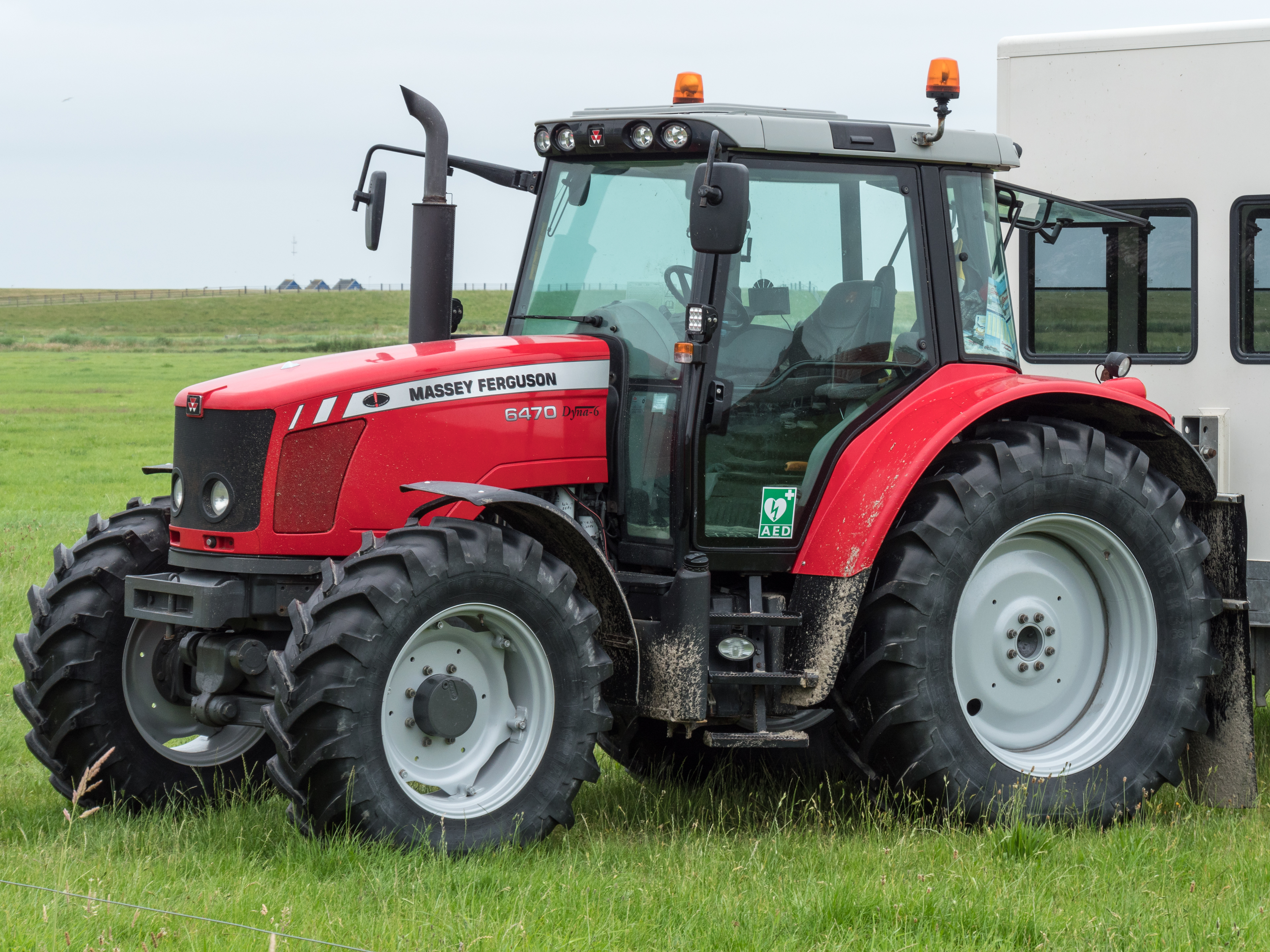

Massey Ferguson 6470

Name: Massey Ferguson 6470
Brand: Massey Ferguson

Massey Ferguson 6470 — Row-Crop tractor · 125 hp. Reference specifications; pending source verification.

The Massey Ferguson 6470 is a tractor model with a rating of 125 hp, positioning it among the more powerful machines in its class. Manufactured between 2008 and 2012, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The listed weight of the 6470 is 4609 kg, and it is designed for tasks involving areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Max power

145 hp

Weight

4609 kg

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

125 hp

Recorded weight

4609 kg

Transmissions

24-speed partial power shift

Production years

2008-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Cab standard with air-conditioning.Reference

Engine

SisuDiesel 4.4L 4-cyl dieselReference

Fuel tank145.0 LReference

Fuel tank210.1 LReference

Engine93.2 kWReference

SisuDiesel 44CTAReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IIIReference

Power93.2 kWReference

Maximum Power108.1 kWReference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Emissions complianceTier IIIReference

Bore and stroke4.252x4.724 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speed partial power shiftReference

36-speed creeperReference

TransmissionDyna-6Reference

Typepartial power shiftReference

Gears24 forward and reverseReference

Six power shift gears in four ranges.Reference

TypecreeperReference

Gears36 forward and reverseReference

Transmission TypeSemi-PowershiftReference

forward and reverse optionsDyna-6 24F and 24R | creeper 36F and 36RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeclosed center load sensingReference

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow110.1 lpmReference

Rear TypeIII/IIReference

Rear lift (at ends)5850 kgReference

Rear lift (at ends)7100 kgReference

Front lift2500 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1980Reference

Engine RPM540E@1530Reference

Engine RPM1000@2030Reference

Front PTOindependentReference

Clutchelectro-hydraulicReference

Front PTO Type1000 (1.375)Reference

Engine RPM1000@2000Reference

Dimensions

Wheelbase266 cmReference

Weight4609 kgReference

Front tire420/70R28Reference

Rear tire520/70R38Reference

Standard tires (ag)Front: 420/70R28. Rear: 520/70R38Reference

Length432 cmReference

Width228 cmReference

Height (cab)286 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Capacities

Capacity268.5 ciReference

Power

Max Power145 hpReference

Rated Power125 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Engine Speed on Rear PTO speed1,000@2,030 RPMReference

Engine Speed on Front PTO speed1,000@2,000 RPMReference

Hydraulics

Hydraulics Typeclosed center load sensingReference

Maximum operating pressure2,901 psiReference

Remote Valves2 to 4 valvesReference

Rear Hitch category (SAE designation)Category III/IIReference

Rear Hitch maximum lift capacity7,100.1 kgReference

Dimensions & weight

Height Over Cab286 cmReference

Overall Length432.1 cmReference

Overall Width228.6 cmReference

Overall weight4,609.9 kgReference

Wheels & tyres

Rear Wheel Type520/70R38Reference

Front Wheel Type420/70R28Reference

Operator station

Cab AvailabilityAvailableReference

Steering & brakes

Steering typepowerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
