Tractor · 2004Unverified

Massey Ferguson 6475

Name: Massey Ferguson 6475
Brand: Massey Ferguson

Massey Ferguson 6475 — Model year 2004-20072008-2012 · 106 hp. Reference specifications; pending source verification.

The Massey Ferguson 6475 is a tractor model with a rated power output of 106 hp, typical for its mid-range category. Production of the model spanned from 2004 to 2012. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. The operating weight of this tractor is listed as 11052 to 13215 pounds, suitable for operations covering 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

106 hp

Max power

84.5 kW

Weight

11052 to 13215 pounds

Catalogue coverage

Variants represented

Richest spec table

120 rows

Recorded power

106 hp

Transmissions

24-speed six-speed power shift

Production years

2004-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

6475Dyna-6Reference

7475Dyna-VTReference

Engine

Perkins 6.0L 6-cyl dieselReference

Fuel tank264.9 LReference

Engine99.2 kWReference

Drawbar (tested)59.0 kWReference

PerkinsReference

wastegate turbocharger dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

EmissionsTier IIReference

Power99.2 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power84.5 kWReference

Power at rated engine speed79.0 kWReference

Max power59.0 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.13x5.00 | 4.252x4.724 inchesReference

Compression ratio16.2:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed six-speed power shiftReference

32-speed creeperReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Clutchwet discReference

Six power shift gears in four ranges.Reference

TypecreeperReference

Gears32 forward and reverseReference

Transmission TypeSemi-PowershiftReference

forward and reverse optionsDyna-6 - 24F and 24RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

PTO (tested)84.5 kWReference

Typeclosed center PFCReference

Pressure200.0 barReference

Valves3 to 5Reference

Total flow109.8 lpmReference

Rear TypeII/IIINReference

Rear lift (at 24"/610mm)4259 kgReference

Front HitchoptionalReference

Front lift3175 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Power at rated PTO speed84.2 kWReference

Dimensions

2WD Wheelbase277 cmReference

4WD Wheelbase278 cmReference

Weight11052 to 13215 poundsReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length449 cmReference

Width281 cmReference

2WD Height154 cmReference

4WD Height213 cmReference

Ground clearance34 cmReference

2WD Shipping5013 kgReference

4WD Shipping5239 kgReference

2WD Operating5960 kgReference

4WD Operating5994 kgReference

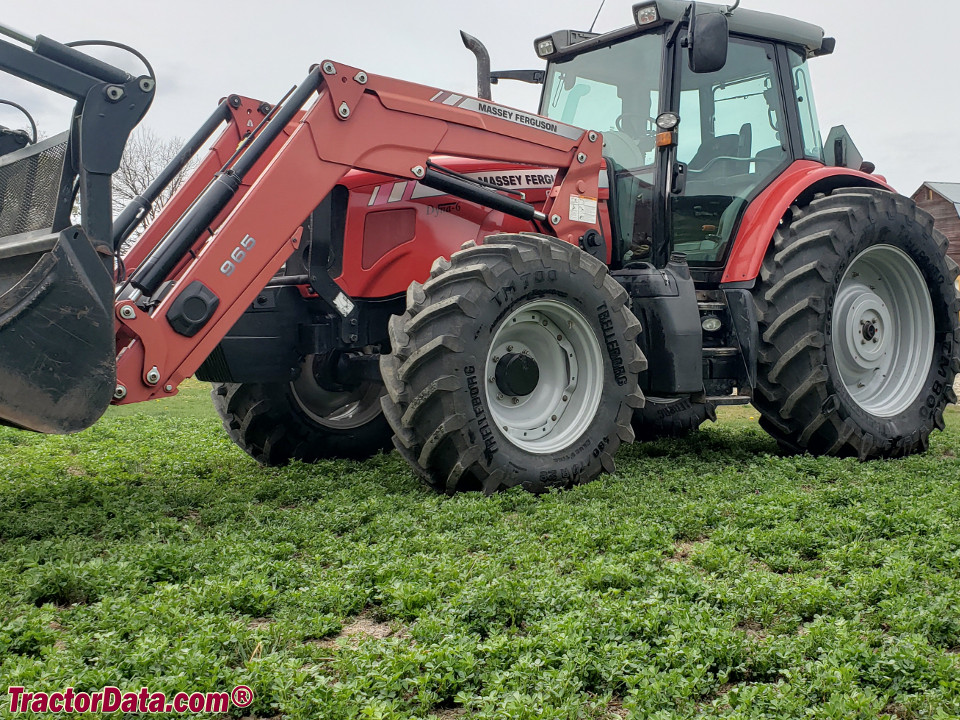

Massey Ferguson 6475 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging amps120Reference

Battery volts12Reference

Battery options2Reference

Test results

Diesel 32-speed 4WDMay 2004 - June 2004, Link: OCED Tractor Test 2210 fileReference

PTO performanceReference

Fuel use25.7 l/hourReference

Fuel use27.6 l/hourReference

Fuel use27.3 l/hourReference

Drawbar performanceReference

Fuel use25.4 l/hourReference

Gear 12 used for power test.Reference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

Differential lockelectro-hydraulic front and rearReference

Rear Axle TypeFlangeReference

Capacities

Capacity402.5 ciReference

Power

Rated Power135 hpReference

PTO

PTO Power110 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PoweravailableReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)29 gpmReference

Hydraulics Typeclosed center pressure flow compensating (PFC)Reference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 valvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typelower-link draft sensingReference

Front Hitch category (SAE designation)Category optionalReference

Dimensions & weight

Wheelbase282.7 cmReference

Height Over Cab287 cmReference

Overall Length513.1 cmReference

Overall Width216.4 cmReference

Drawbar clearance39.4 cmReference

Overall weight5,533.8 kgReference

Rear Axle Length287 cmReference

Wheels & tyres

Rear Wheel Type18.4R38 (2WD) | 18.4R38 (4WD)Reference

Rear wheel tread range56 to 112 inchesReference

Front Wheel Type10.00-16(2WD) | 14.9R28(4WD)Reference

Front Wheel tread range56 to 84 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
