Tractor · 2004Unverified

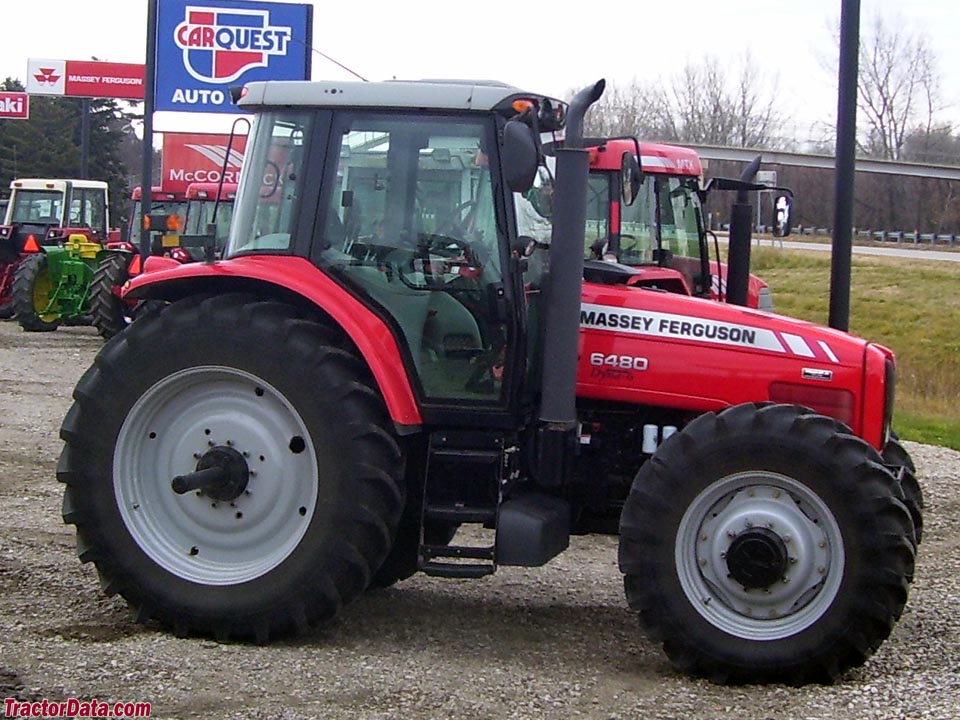

Massey Ferguson 6480

Name: Massey Ferguson 6480
Brand: Massey Ferguson

Massey Ferguson 6480 — Model year 2004-20072008-2012 · 116 hp. Reference specifications; pending source verification.

The Massey Ferguson 6480 is a tractor with an engine rating of 116 hp, placing it in the middle of its class for power output. Manufactured from 2004 to 2012, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight of the 6480 ranges from 11052 to 13215 pounds, making it suitable for tasks covering approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

116 hp

Max power

92.5 kW

Weight

11052 to 13215 pounds

Catalogue coverage

Variants represented

Richest spec table

119 rows

Recorded power

116 hp

Transmissions

24-speed six-speed power shift

Production years

2004-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

6480Dyna-6Reference

7480Dyna-VTReference

Engine

Perkins 6.0L 6-cyl dieselReference

Fuel tank264.9 LReference

Engine106.6 kWReference

Drawbar (tested)74.7 kWReference

PerkinsReference

wastegate turbocharger dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

EmissionsTier IIReference

Power106.6 kWReference

Air cleanerdual paper elementsReference

Compression17.25:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power92.5 kWReference

Power at rated engine speed86.3 kWReference

Max power74.7 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.252x4.724 | 4.13x5.00 inchesReference

Compression ratio16.2:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed six-speed power shiftReference

32-speed creeperReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Clutchwet discReference

Six power shift gears in four ranges.Reference

TypecreeperReference

Gears32 forward and reverseReference

Transmission TypeSemi-PowershiftReference

forward and reverse optionsDyna-6 - 24F and 24RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)85.8 kWReference

PTO (tested)92.5 kWReference

Typeclosed center PFCReference

Pressure200.0 barReference

Valves3 to 5Reference

Total flow109.8 lpmReference

Rear TypeII/IIINReference

Rear lift (at 24"/610mm)4259 kgReference

Front HitchoptionalReference

Front lift3175 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Power at rated PTO speed91.5 kWReference

Dimensions

Wheelbase277 cmReference

Wheelbase278 cmReference

Weight11052 to 13215 poundsReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length449 cmReference

Width281 cmReference

Height154 cmReference

Height213 cmReference

Ground clearance34 cmReference

Shipping5013 kgReference

Shipping5239 kgReference

Operating5960 kgReference

Operating5994 kgReference

Massey Ferguson 6480 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging amps120Reference

Battery volts12Reference

Battery options2Reference

Test results

Diesel 32-speed 4WDApril 2004 - June 2004, Link: OCED Tractor Test 2222 fileReference

PTO performanceReference

Fuel use28.4 l/hourReference

Fuel use30.3 l/hourReference

Fuel use29.5 l/hourReference

Drawbar performanceReference

Fuel use31.8 l/hourReference

Gear 18 used for power test.Reference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

Differential lockelectro-hydraulic front and rearReference

SCV controlJoystickReference

Rear Axle TypeFlangeReference

Capacities

Capacity402.5 ciReference

PTO

PTO Power120 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PoweravailableReference

Steering & brakes

Brakesindependent hydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)39 gpmReference

Hydraulics Typeclosed center pressure flow compensating (PFC)Reference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 valvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typelower-link draft sensingReference

Front Hitch category (SAE designation)Category optionalReference

Dimensions & weight

Height Over Cab287 cmReference

Overall Length513.1 cmReference

Overall Width216.4 cmReference

Drawbar clearance39.4 cmReference

Overall weight6,032.8 kgReference

Rear Axle Length287 cmReference

Wheels & tyres

Rear Wheel Type18.4R38 (2WD) | 18.4R38 (4WD)Reference

Rear wheel tread range56 to 112 inchesReference

Front Wheel Type10.00x16 (2WD) |14.9R28 (4WD)Reference

Front Wheel tread range56 to 84 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
